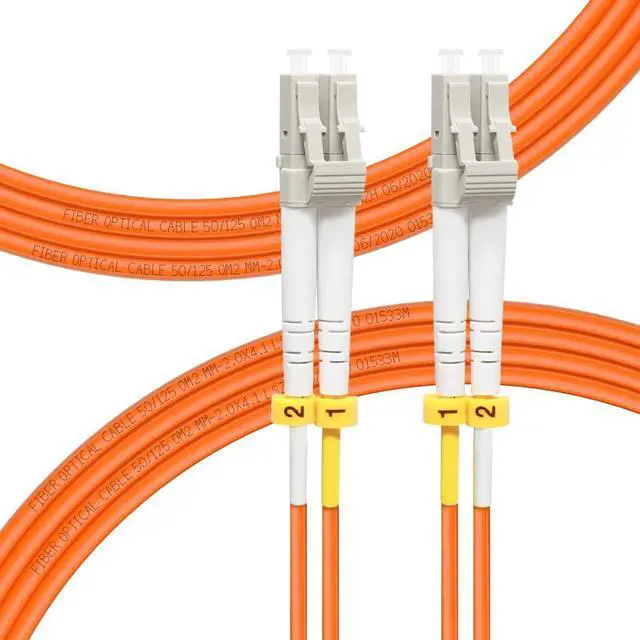

OM2 LC to LC Fiber Patch Cable Multimode Fiber Optic Cord (MMF) 50/125um Duplex UPC
ADVANTAGES
Plug and play cables save time in the field since there is no onsite termination necessary.
The 50/125µm OM2 lc to lc fiber patch cable multimode bend insensitive is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.

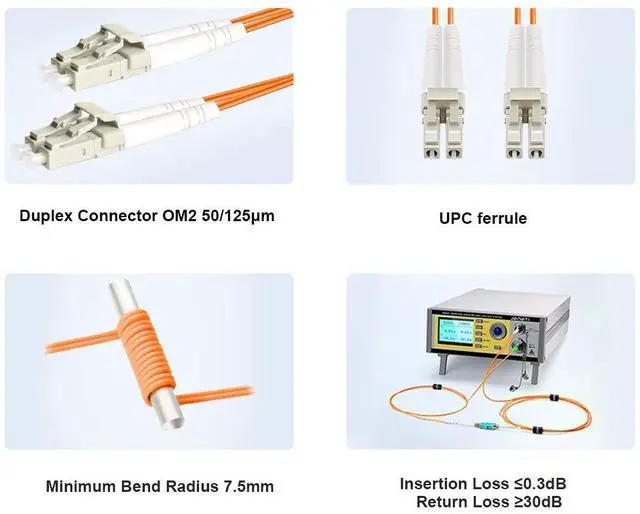

Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.
OM2 Duplex Multimode Fiber Optic Cable Specifications
 OS2 Single Mode Duplex |  OM3 Multimode Duplex |  OM4 Multimode Duplex |  OM3 Multimode Duplex |  OS2 Single Mode Simplex |  OS2 Single Mode Simplex Armored | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1G/10GB | 10G/40G/100GB | 10G/40G/100GB | 10G/40G/100GB | 1G/10GB | 1G/10GB |
| Connector | LC/UPC to LC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC | SC/UPC to LC/UPC | SC/APC to SC/APC | SC/APC to SC/APC |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =30dB | =30dB | =30dB | =50dB | =50dB |
| Min. Bend Radius(Fiber Core) | 16mm | 7.5mm | 7.5mm | 7.5mm | 16mm | 10mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) |
| Cable Diameter | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Fiber Grade | G652D | Bend Insensitive | Bend Insensitive | Bend Insensitive | G652D | G657A1 |
FLYPROfiber founded in 2005. A large-scale optical communication product manufacturer integrating R&D, production and sales of optical fiber cables, optical modules, WDM, optical switches, splitters, optical circulators and other passive components.
Optical fiber cable provide high-speed and reliable network connectivity, which benefits AI applications.
LC-LC Duplex Fiber Cable
OM3 LC LC Outdoor Armored
OS2 LC-LC Outdoor Armored
SCA Simplex Fiber Optic Cable
LC-SC Duplex Fiber Cable
SC-SC Duplex Fiber Cable
Network Transceivers
10G SFP+ DAC Cable
10G SFP+ AOC Cable
OM2 LC to LC Fiber Patch Cable Multimode Fiber Optic Cord (MMF) 50/125um Duplex UPC
ADVANTAGES
Plug and play cables save time in the field since there is no onsite termination necessary.
The 50/125µm OM2 lc to lc fiber patch cable multimode bend insensitive is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.
Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.

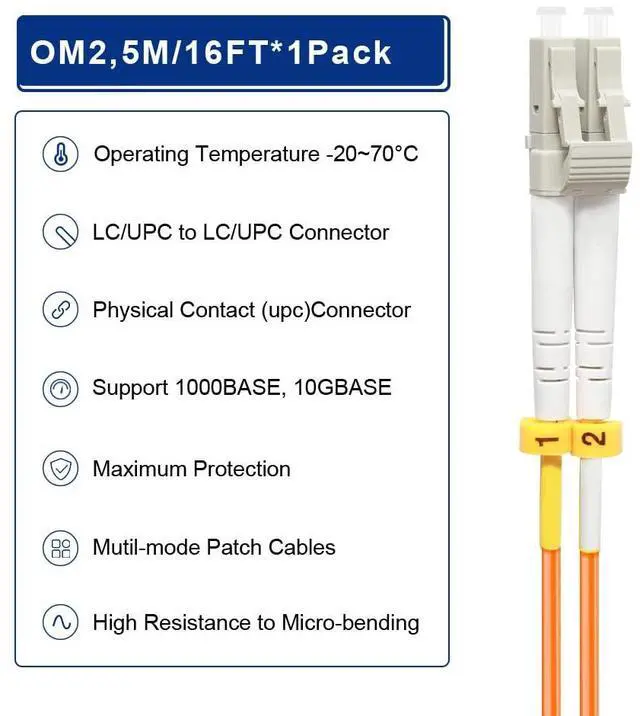

OM2 Duplex Multimode Fiber Optic Cable Specifications
| Wavelength | 850nm and 1300nm |
| Bandwidth | 500/500MHz.km @850/1300nm |
| Attenuation at 850nm | 3.0 dB/km |
| Attenuation at 1300nm | 1.0 dB/km |
| Cable Diameter | 2.0mm |
| Polish Type | UPC to UPC |
| Fiber Type | LC to LC |
| Fiber Count | Duplex |
| Ferrule Material | Ceramic |
| Min. Bend Radius(Fiber Core) | 15mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) |
OS2 Single Mode Duplex | OM3 Multimode Duplex | OM4 Multimode Duplex | OM3 Multimode Duplex | OS2 Single Mode Simplex | OS2 Single Mode Simplex Armored | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1G/10GB | 10G/40G/100GB | 10G/40G/100GB | 10G/40G/100GB | 1G/10GB | 1G/10GB |
| Connector | LC/UPC to LC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC | SC/UPC to LC/UPC | SC/APC to SC/APC | SC/APC to SC/APC |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =30dB | =30dB | =30dB | =50dB | =50dB |
| Min. Bend Radius(Fiber Core) | 16mm | 7.5mm | 7.5mm | 7.5mm | 16mm | 10mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) |
| Cable Diameter | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Fiber Grade | G652D | Bend Insensitive | Bend Insensitive | Bend Insensitive | G652D | G657A1 |
FLYPROfiber founded in 2005. A large-scale optical communication product manufacturer integrating R&D, production and sales of optical fiber cables, optical modules, WDM, optical switches, splitters, optical circulators and other passive components.
Optical fiber cable provide high-speed and reliable network connectivity, which benefits AI applications.
