12 Fibers OM4/OM3 Multimode Patch Panel with 6 x LC UPC Duplex Fiber Optic Adapters - LGX Compatible

Upgrade your network infrastructure with this rack mount compatible 6 port patch panel fiber optic; Fiber patch panel supports fiber optic networking equipment with LC to LC connectors

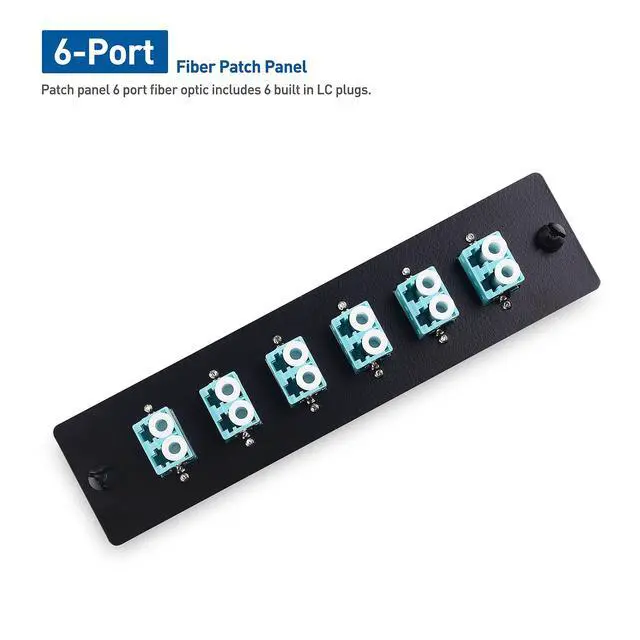

Patch panel 6 port fiber optic includes 6 built in LC plugs; Connect high speed fiber optic network cables like LC to LC cables to the network patch panel fiber optic
Fiber network patch panel 6 port supports OM1/OM2/OM3/OM4 fiber optic cables for fast fiber optic connections; Fiber cable connectors expand networking potential
Fiber patch panel is 5.12 In x 1.24 In x 1.14 In (130mm x 31.6mm x 29.2mm)
Attach this patch panel to standard networking infrastructure for fiber optic cable networking; Supports 1U rack systems and other networking equipment

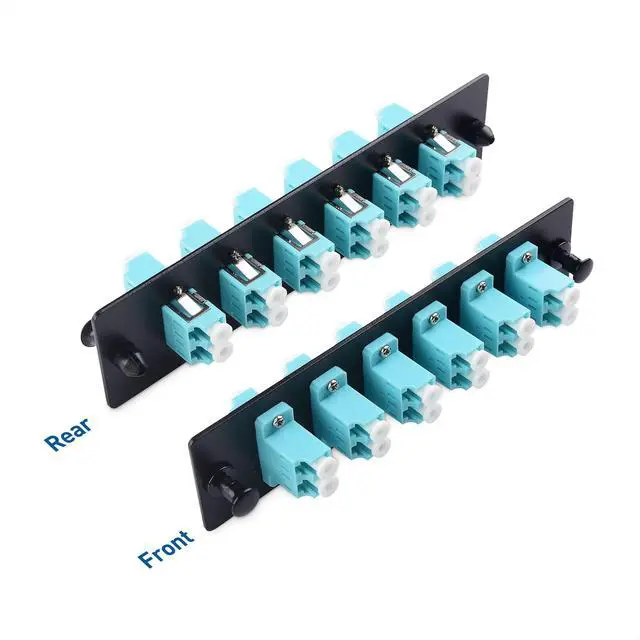

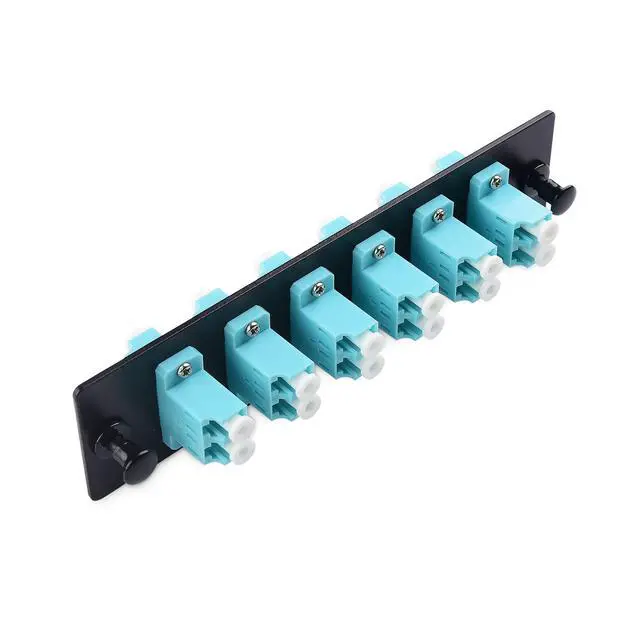

6-Port Fiber Patch Panel with 6 Duplex LC Fiber Optic Adapters

Expand Your Fiber Optic Network

The Cable Matters 6-Port LC OM1/OM2/OM3/OM4 Multimode Fiber Optic Patch Panel future-proofs your fiber optic network expansion. With support for speeds up to 100Gbps, this patch panel and included LC fiber connectors are perfect for a new fiber deployment or upgrading an existing network.

6-Port Fiber Patch Panel with 6 Duplex LC Fiber Optic Adapters

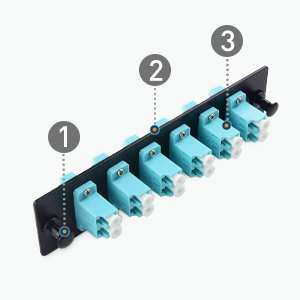

Rugged & Durable Construction

1) Snap-in screws for toolless installation

2) Tough 1.5mm SPCC steel material

3) Built-in LC connectors

6-Port Fiber Patch Panel with 6 Duplex LC Fiber Optic Adapters

Fiber Optic Performance

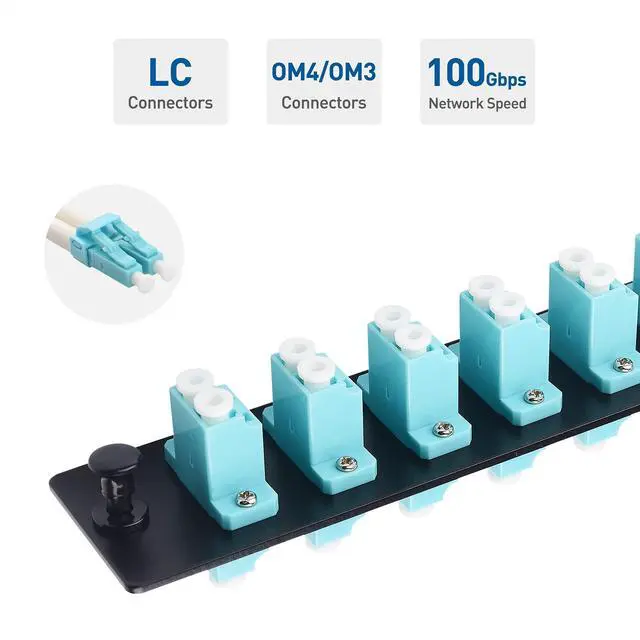

Connectors support LC networks at OM1, OM2, OM3, and OM4 speeds

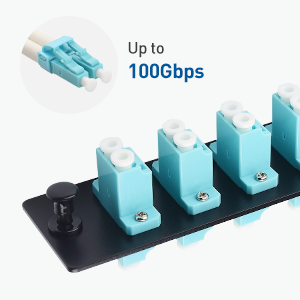

Supports up to OM4 fiber networks at up to 100Gbps (100GBASE)

6-Port Fiber Patch Panel with 6 Duplex LC Fiber Optic Adapters

Universal Installation

LGX Compatible
Built in screws for toolless installation

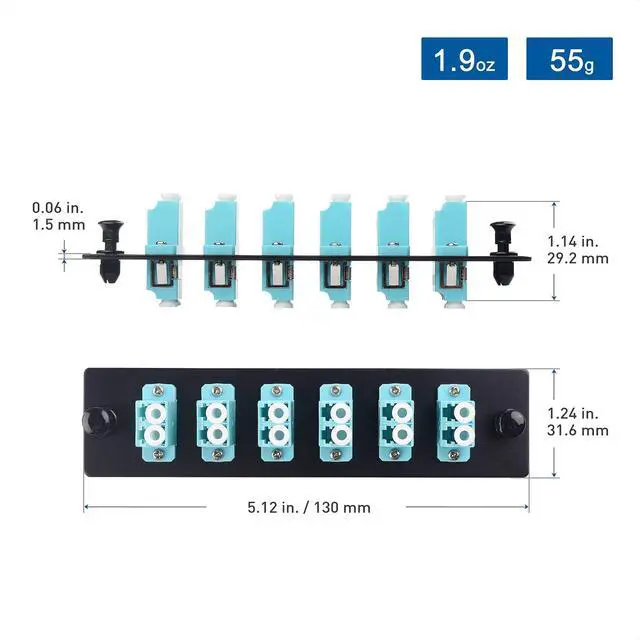

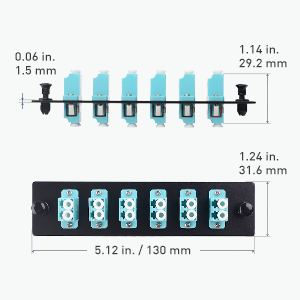

Dimensions: 5.12” x 1.24” x 1.24 In (130 x 31.6 x 29.2mm)

	12 Fibers LC to LC OM3/OM4 Fiber Patch Panel	12 Fibers LC to LC OS2 Fiber Patch Panel	24 Fibers LC to LC OS2 Fiber Patch Panel	24 Fibers LC to LC OM3/OM4 Fiber Patch Panel	1U Fiber Patch Panel	Blank Fiber Patch Panel

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Connectors	LC Female / LC Female	LC Female / LC Female	LC Female / LC Female	LC Female / LC Female	LC Female / LC Female	N/A
Connectors Support	OM1, OM2, OM3, OM4	OS1, OS2	OS1, OS2	OM1, OM2, OM3, OM4	OM1, OM2, OM3, OM4	N/A
Model Number	120020	120023	120024	120025	120033	120034
