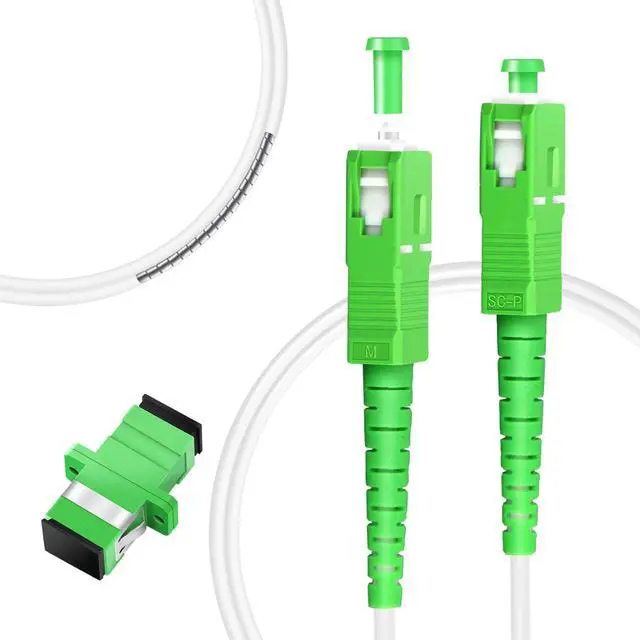

White Armored Fiber Optic Internet Cable SC/APC to SC/APC Single-Mode-9/125um-Simplex-OS1/OS2-OD3mm- LSZH
- High Bending Performance: It has excellent low macrobending sensitivity and boasts extremely high resistance to bending loss within the bending radius range of 7.5mm to 15mm. Its minimum bending radius can reach 7.5mm. Compared with the G652 single-mode optical fiber, it has better bending performance and can be laid and installed in smaller spaces.
- Low Water Peak Characteristics: The water peak refers to the phenomenon that the attenuation of optical fiber increases due to the absorption of water molecules at specific wavelengths. G657A2 has a low water peak level and can achieve low attenuation transmission within a wider wavelength range. It can be comprehensively optimized for use in the O-E-S-C-L band (1260nm - 1625nm).
- Good Compatibility: It is fully compatible with all G652 optical fibers and has the same transmission and interconnection characteristics as the G652d optical fiber. It can be mixed with the G652d optical fiber, facilitating upgrades and expansions in existing networks.
- Low Attenuation: It meets the low attenuation requirements for operation within the O-E-S-C-L band. For instance, the attenuation is =0.35dB/km at 1310nm and =0.21dB/km at 1550nm, etc., enabling long-distance and high-speed data transmission.
- Low Polarization Mode Dispersion (PMD): It meets the requirements of high bit rate and long-distance transmission and can effectively reduce signal distortion during transmission, ensuring high-quality signal transmission.
This Fiber Optic Patch Cable simultaneously meets the standards of OS2 and G657A2. When entering narrow spaces such as corners and ducts, it can possess excellent bending performance, and meanwhile, it can ensure low attenuation during long-distance transmission .
Application Scenarios
- FTTH Network: Thanks to its good bending performance and low attenuation characteristics, it is especially suitable for use in the Fiber-to-the-Home network. It can be conveniently laid from indoor optical connection points or the bottom of buildings to optical terminal sockets, meeting users' needs for high-speed broadband access.
- Data Centers: Inside data centers, due to the dense equipment and limited space, optical fibers with good bending performance are needed for cabling. The fiber optic patch cable can be flexibly bent in narrow spaces to achieve high-speed data transmission between equipment.
- Industrial Environments: In some industrial automation control systems, optical fibers need to be arranged in limited spaces. The high bending performance of the fiber optic patch cable can meet the special requirements in industrial environments and achieve stable data transmission.
Precautions:
This Fiber Optic Patch Cable is recommended to be used indoors. The typical service life of optical fibers with LSZH sheaths is around 20 years. However, if they are exposed to high temperatures, high humidity, intense ultraviolet radiation, or areas with chemical corrosive substances for an extended period, their service life will be significantly shortened, potentially ranging from 5 to 10 years.
White Armored Fiber Optic Internet Cable SC/APC to SC/APC Single-Mode-9/125um-Simplex-OS1/OS2-OD3mm- LSZH
- High Bending Performance: It has excellent low macrobending sensitivity and boasts extremely high resistance to bending loss within the bending radius range of 7.5mm to 15mm. Its minimum bending radius can reach 7.5mm. Compared with the G652 single-mode optical fiber, it has better bending performance and can be laid and installed in smaller spaces.
- Low Water Peak Characteristics: The water peak refers to the phenomenon that the attenuation of optical fiber increases due to the absorption of water molecules at specific wavelengths. G657A2 has a low water peak level and can achieve low attenuation transmission within a wider wavelength range. It can be comprehensively optimized for use in the O-E-S-C-L band (1260nm - 1625nm).
- Good Compatibility: It is fully compatible with all G652 optical fibers and has the same transmission and interconnection characteristics as the G652d optical fiber. It can be mixed with the G652d optical fiber, facilitating upgrades and expansions in existing networks.
- Low Attenuation: It meets the low attenuation requirements for operation within the O-E-S-C-L band. For instance, the attenuation is =0.35dB/km at 1310nm and =0.21dB/km at 1550nm, etc., enabling long-distance and high-speed data transmission.
- Low Polarization Mode Dispersion (PMD): It meets the requirements of high bit rate and long-distance transmission and can effectively reduce signal distortion during transmission, ensuring high-quality signal transmission.
This Fiber Optic Patch Cable simultaneously meets the standards of OS2 and G657A2. When entering narrow spaces such as corners and ducts, it can possess excellent bending performance, and meanwhile, it can ensure low attenuation during long-distance transmission .
| Fiber Mode | OS2 9/125µm |
| Fiber Count | Simplex |
| Fiber Grade | G.657.A2 (Compatible with G.652.D) |
| Sheath type | LSZH (Low Smoke Zero Halogen) |
| Connector A | SC/APC |
| Connector B | SC/APC |
| Insertion loss | =0.3dB |
| Return loss | =65dB |
| Cable diameter | 3 mm |
| Colour | White |

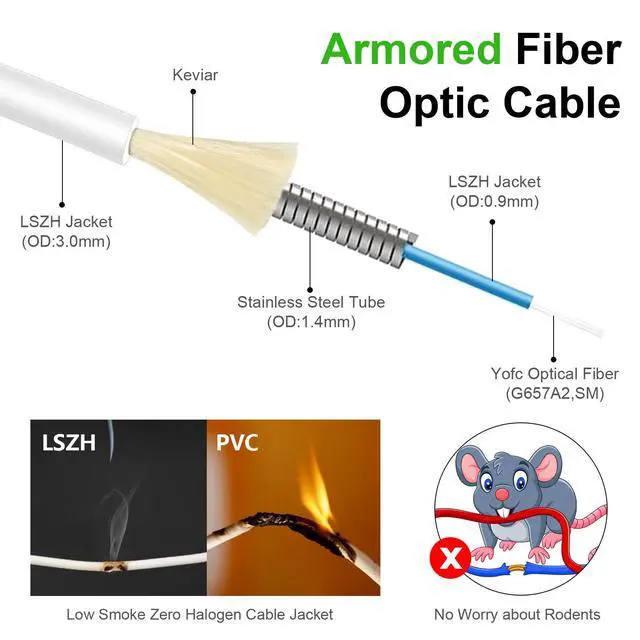

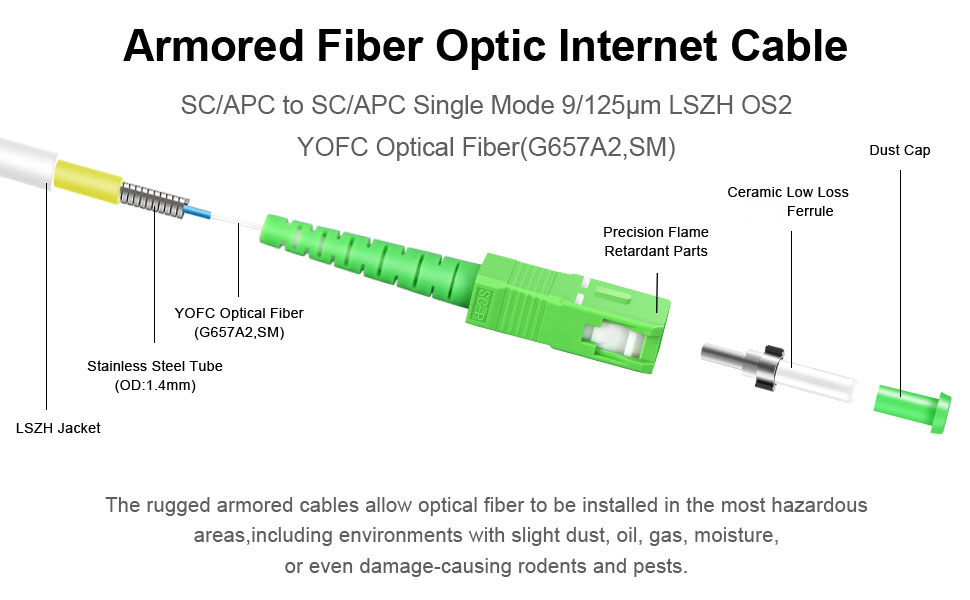

| Fiber Cords Structure | Single Armored, Stainless Steel Tube |
| Tensile Load | 120/225N (Long/Short Term) |
| Min. Bend Radius (Fiber Core) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Operating Temperature | -10°C to 60°C |

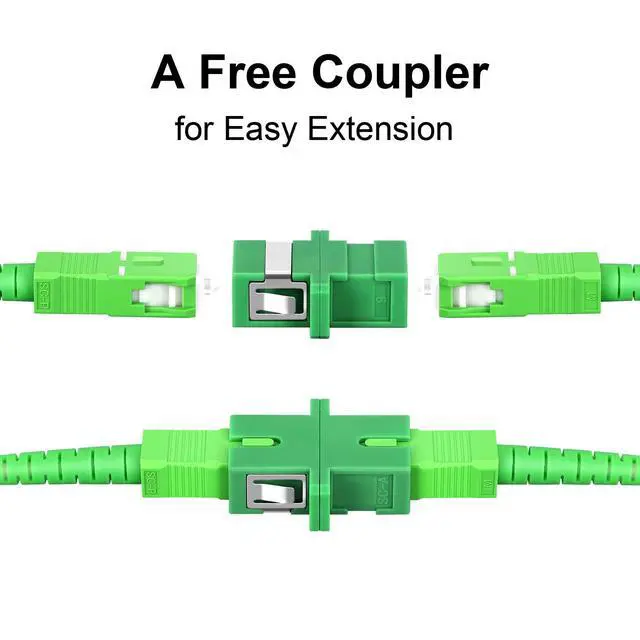

| Accessories | With 1x SC/APC fiber optic connector |
Application Scenarios
- FTTH Network: Thanks to its good bending performance and low attenuation characteristics, it is especially suitable for use in the Fiber-to-the-Home network. It can be conveniently laid from indoor optical connection points or the bottom of buildings to optical terminal sockets, meeting users' needs for high-speed broadband access.
- Data Centers: Inside data centers, due to the dense equipment and limited space, optical fibers with good bending performance are needed for cabling. The fiber optic patch cable can be flexibly bent in narrow spaces to achieve high-speed data transmission between equipment.
- Industrial Environments: In some industrial automation control systems, optical fibers need to be arranged in limited spaces. The high bending performance of the fiber optic patch cable can meet the special requirements in industrial environments and achieve stable data transmission.
Precautions:
This Fiber Optic Patch Cable is recommended to be used indoors. The typical service life of optical fibers with LSZH sheaths is around 20 years. However, if they are exposed to high temperatures, high humidity, intense ultraviolet radiation, or areas with chemical corrosive substances for an extended period, their service life will be significantly shortened, potentially ranging from 5 to 10 years.
