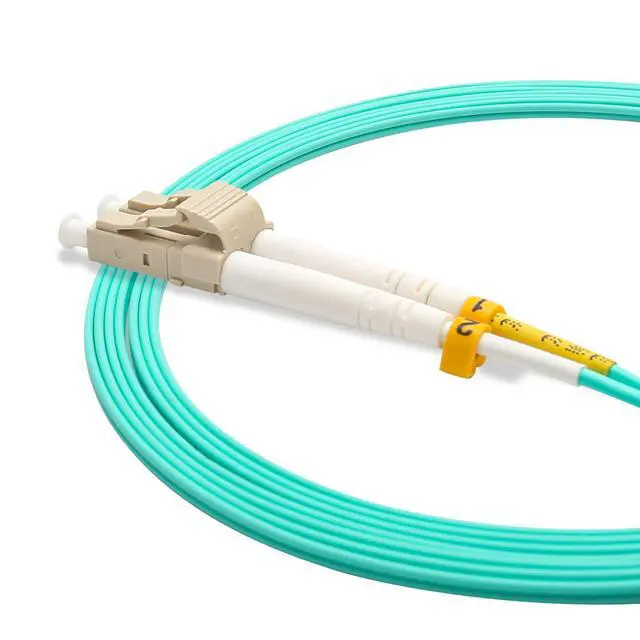

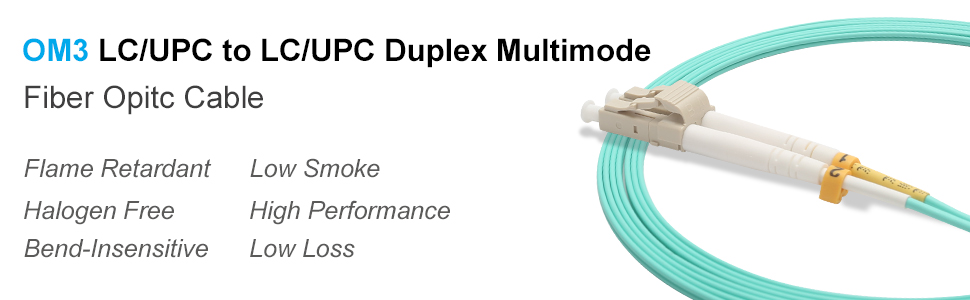

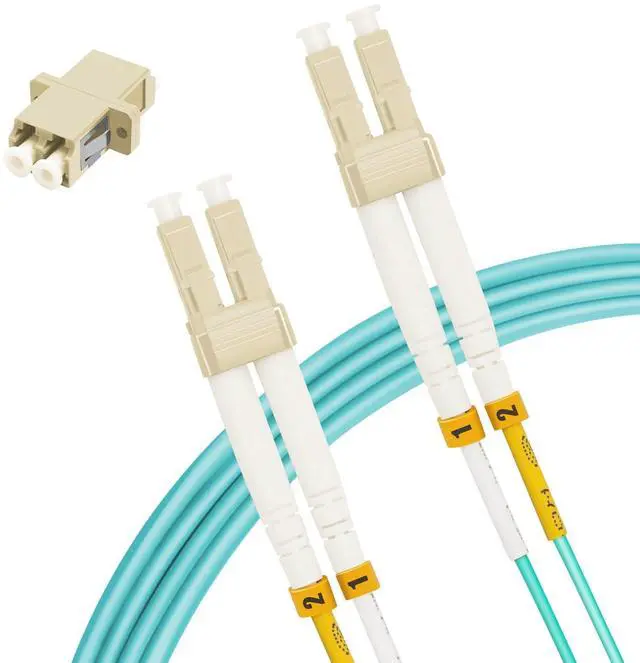

OM3 MultiMode LC/UPC to LC/UPC Fiber Patch Cable (50/125µm Duplex, LSZH, OD2mm,10G/40G/100G)
Advantages:

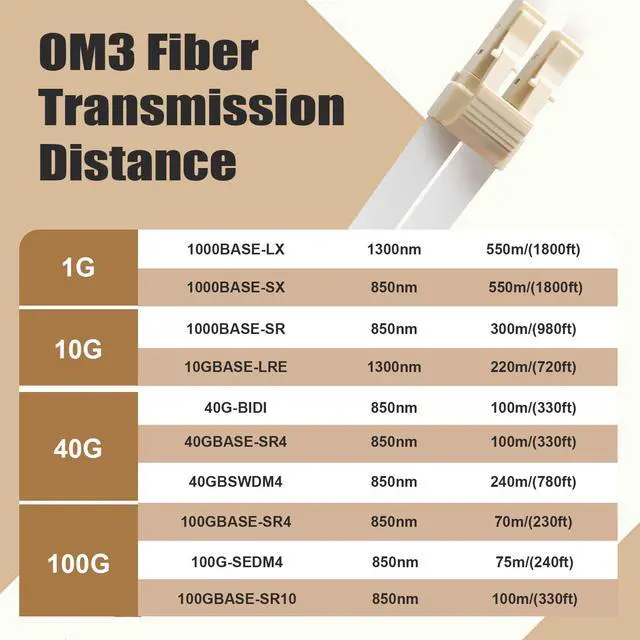

- High Performance: Supports 10GbE to 300m, 40/100GbE over shorter distances (using MPO/QSFP28). Backward compatible.
- High Density: Small LC duplex connectors maximize port density in racks/panels.
- Low Loss: UPC polish ensures minimal signal loss/reflection.
- Safety: LSZH jacket minimizes smoke and toxic gases in fires.
- Flexibility: Thin 2mm cable eases routing in tight spaces, reduces weight/strain, improves airflow.
- Cost-Effective: Uses lower-cost multimode optics than single-mode.
- Reliable: Durable standard construction.
Key Applications:
- Data Centers: High-speed links (10G-100GbE) between switches, servers, storage, and panels.
- Enterprise/SAN/HPC: Backbones, storage networks (Fibre Channel), server interconnects.
- Safety-Critical Sites: Building risers, transport hubs, hospitals, ships (due to LSZH).
- Space-Constrained Areas: Inside racks, dense panels (benefits from thin cable).
- Upgrades: Cost-effective path to 10GbE+ within 300m for existing OM1/OM2 networks.
| Fiber Mode | OM3 50/125µm |
| Fiber Count | 2 cores |
| Fiber Grade | G.657.A2 (Compatible with G.652.D) |
| Sheath type | LSZH |
| Connector A | LC/UPC Duplex |
| Connector B | LC/UPC Duplex |

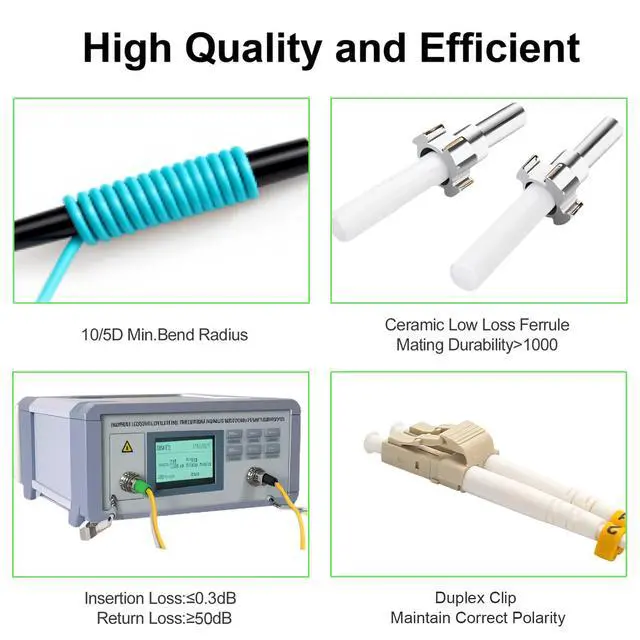

| Insertion loss | =0.3dB |
| Return loss | =30dB |
| Cable diameter | 2 mm |
| Colour | aqua |

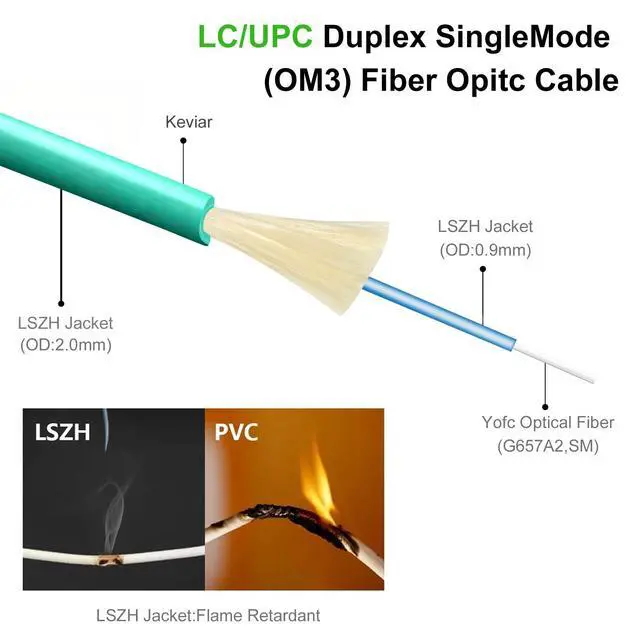

| Fiber Cords Structure | tight buffer |
| Tensile Load | 90/150N (Long/Short Term) |
| Min. Bend Radius (Fiber Core) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Operating Temperature | -25°C to 70°C |
| Accessories | With 1x LC/UPC fiber optic connector |
