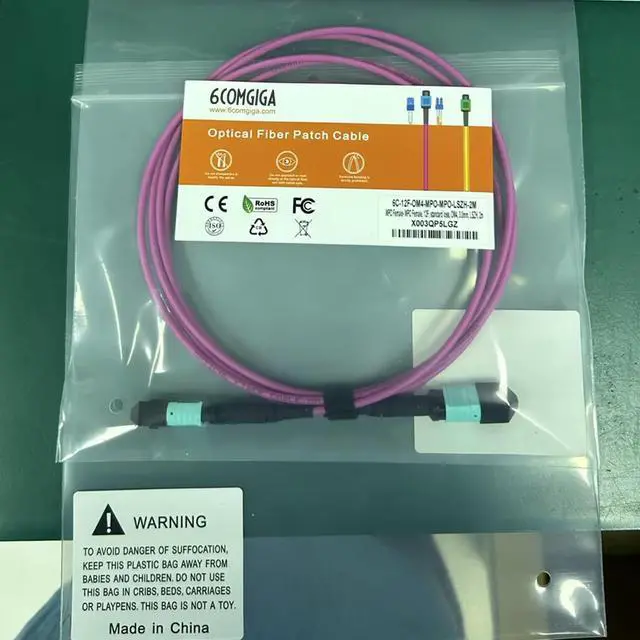

6COMGIGA 2M MPO Female To MPO Female, 12 Fibers OM4 3.0mm LSZH Multimode Fiber Optic Cable
- High Speed and High Density, MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Standard insertion loss and back reflection loss process, connections for 10G/40G/100G.
- TYPE B & IEEE802BM, MMF(50/125um), OM4 fibers, LSZH sheet, 12 fibers cable, constructed with TYPE B (Channel 1 to Channel 12).
- Carrier Grade Performance and LSZH (Plenum) Fire Rating. Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources(Low-smoke-zero-halogen Rated).
- All of products are manufactured under strict quality control system, every fiber has been tested one by one before shipping, to ensure the fibers can work well.
- 30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description

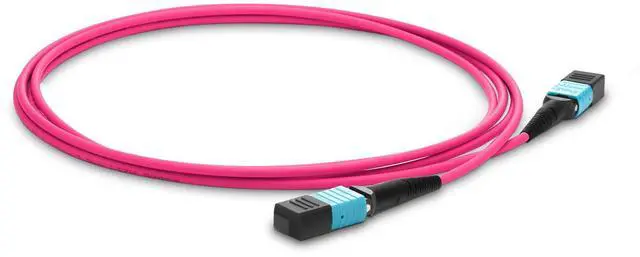

MTP Female to MTP Female OM4 Multimode Trunk Cable
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors , it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Product Specification:
Connector A: MPO Female (Pinless)
Connector B: MPO Female (Pinless)
Fiber Mode: OM4 50/125m
Wavelength: 850/1300nm
40/100G Ethernet Distance: 150m at 850nm
10G Ethernet Distance: 400m at 850nm
Minimum Bend Radius: 7.5mm
Insertion Loss: 0.75dB Max (0.35dB Typ.)
Return Loss: 20dB
Attenuation at 850nm: 2.3 dB/km
Attenuation at 1300nm: 0.6 dB/km
Jacket OD: 3.0mm
Cable Jacket: Plenum (LSZH)
Operating Temperature: -10°C to +70°C
