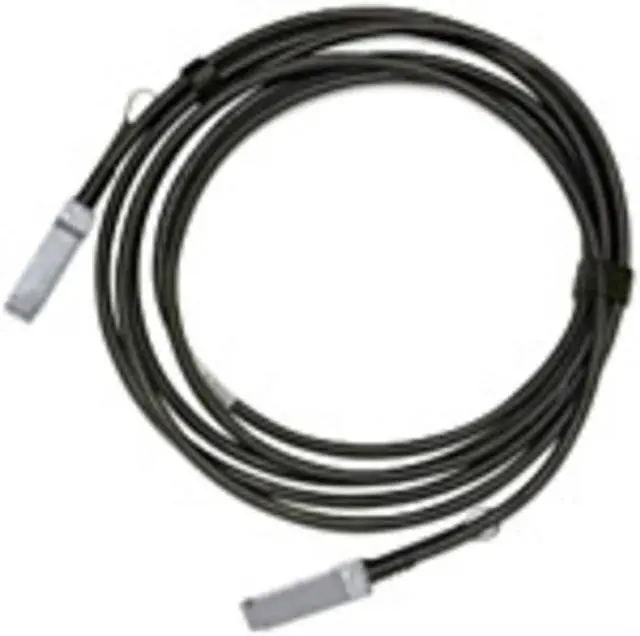

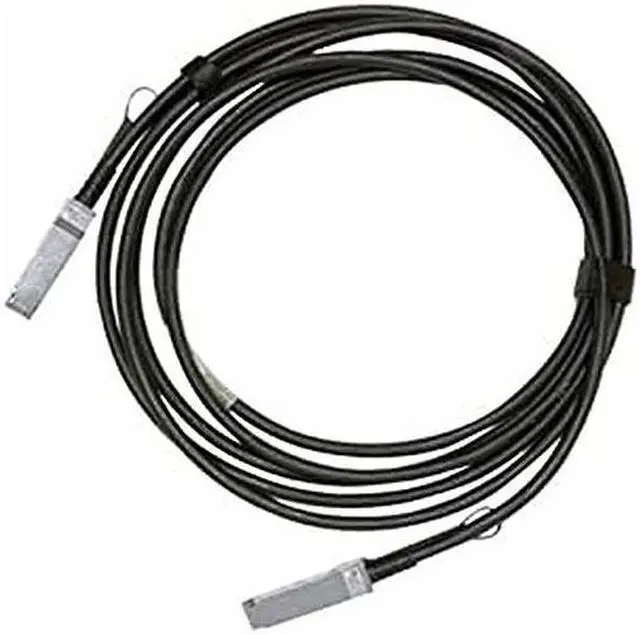

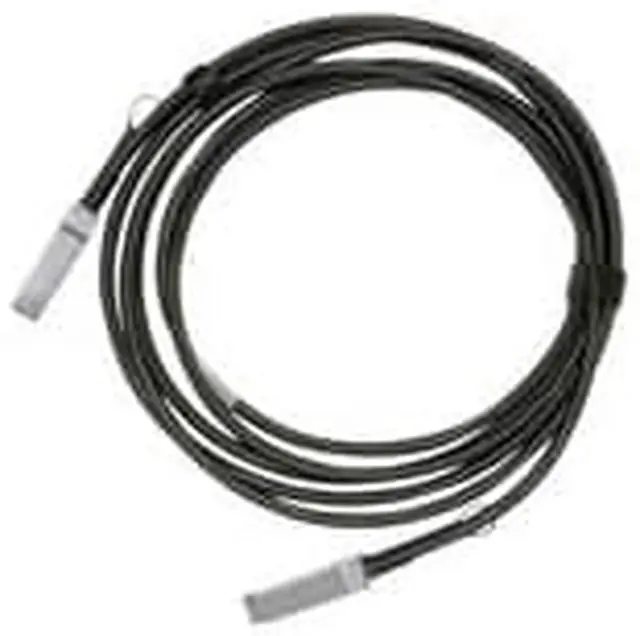

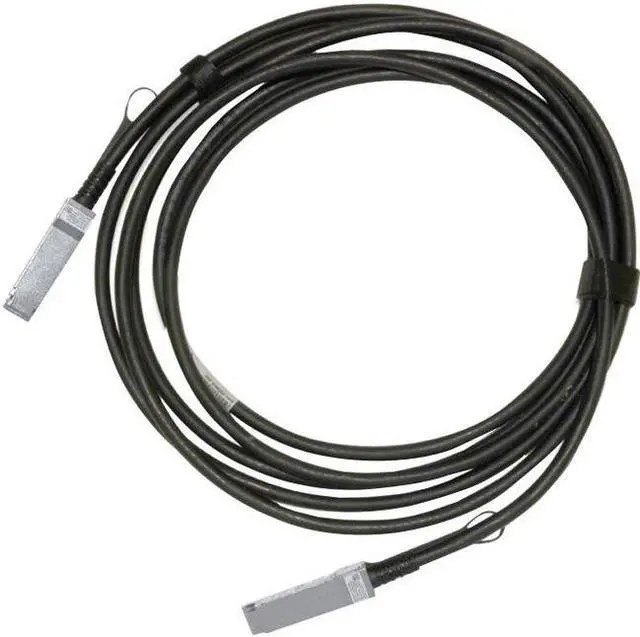

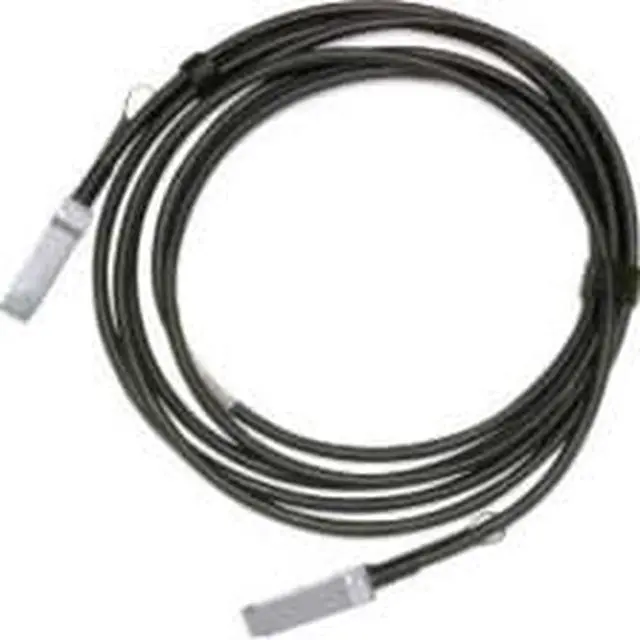

Mellanox Passive Copper Cable, IB EDR, up to 100Gb/s, QSFP28, 2m, Black, 30AWG

NVIDIA MCP1600-E002E30 Direct Attach Copper Cable InfiniBand EDR up to 100Gb/s QSFP28 2m Black 30AWG

100Gb/s QSFP28 Direct Attach Copper Cable
NVIDIA Networking direct attach copper (DAC) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications.

NVIDIA Networking QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.

NVIDIAs unique quality, passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

• Up to 100Gb/s data rate
• SFF-8665 compliant QSFP28
• Operating case temperature 0-70C
• Single 3.3V supply voltage
• Bit Error Rate (BER) better than 1E-15
• Hot pluggable
• RoHS compliant
• LSZH (Low Smoke Zero Halogen) jacket
• LF (Lead Free) HF (Halogen Free) PCB
• SFF-8636 compliant I2C management interface
