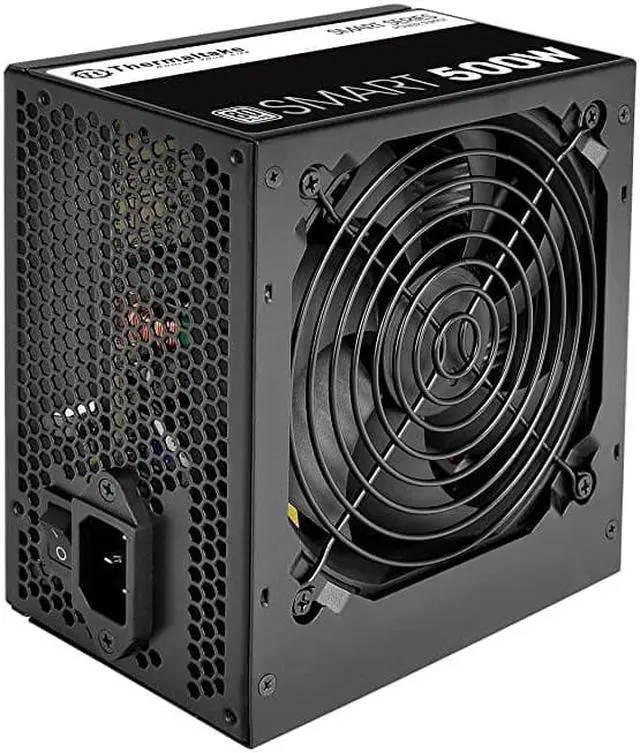

Smart 500W 80+ White Certified PSU Continuous Power with 120mm Ultra Quiet Cooling Fan ATX 12V V23EPS 12V Active PFC Power Supply PSSPD0500NPCWUSW
- ***** Best Quality Guranteed.
- *****Delivers 500 Watt Continuous output @ +40 degree. Compliance with Intel ATX 12 Volt 2.31 & EPS 12V 2.92 standards
- *****80 PLUS Certified, 80percentage efficiency under typical load
- *****Supports (2) PCI E 6+2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100,000 hours
- *****Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
- *****High Quality Components
- *****Equipped with a powerful +12 Volt rail, superior performance under all types of system loading
- *****5 Year Warranty
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Style: Quite
Fan | Size: 500W Incorporating various high-quality components, The smart series - models are Rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent Airflow at an exceptionally low noise level. Additionally, the single +12V rail design enables non-stop usage with stable and reliable performance. Smart Series adopt 120mm cooling fan delivers excellent Airflow at an exceptionally low noise level. Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS standard Certified. High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. Single +12V output.

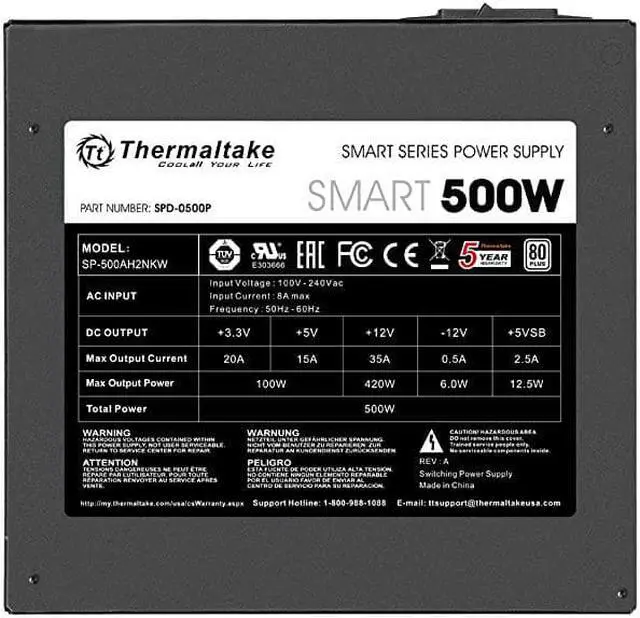

p/N: ps-spd-0500npcw-wshort
P/N:
spd-0500pmodel:
sp-500ah2nkwtype: Intel ATX 12V 2.3 max.
Output capacity:
500wcolor: blackdimension
(H x W x D): 86mm x 150mm x 140mmpfc power factor correction: active
pfcpower good signal: 100-500
msechold up time: 16msec (minimum) within 60% loadinput current: 8a
maxinput frequency range: 50
Hz - 60 hzinput voltage: 100Vac
240vacoperating temperature: 5
to +40operating humidity: 20% to 85%, non-condensing
operating temperature: -40
to +55 operating humidity: 10% to 95%, non-condensingcooling
system: 120mm
fan: 1800 R. P. M.
10%efficiency: 82-86%
efficiency @ 20-100% loadmtbf: 100, 000 hrs minimumsafety
Approval: CE/CB/TUV/
UL/ fccpci-e connector: PCI-E 6+2pin x 2
Fan | Size: 500W Incorporating various high-quality components, The smart series - models are Rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent Airflow at an exceptionally low noise level. Additionally, the single +12V rail design enables non-stop usage with stable and reliable performance. Smart Series adopt 120mm cooling fan delivers excellent Airflow at an exceptionally low noise level. Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS standard Certified. High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. Single +12V output.
p/N: ps-spd-0500npcw-wshort
P/N:
spd-0500pmodel:
sp-500ah2nkwtype: Intel ATX 12V 2.3 max.
Output capacity:
500wcolor: blackdimension
(H x W x D): 86mm x 150mm x 140mmpfc power factor correction: active
pfcpower good signal: 100-500
msechold up time: 16msec (minimum) within 60% loadinput current: 8a
maxinput frequency range: 50
Hz - 60 hzinput voltage: 100Vac
240vacoperating temperature: 5
to +40operating humidity: 20% to 85%, non-condensing
operating temperature: -40
to +55 operating humidity: 10% to 95%, non-condensingcooling
system: 120mm
fan: 1800 R. P. M.
10%efficiency: 82-86%
efficiency @ 20-100% loadmtbf: 100, 000 hrs minimumsafety
Approval: CE/CB/TUV/
UL/ fccpci-e connector: PCI-E 6+2pin x 2
