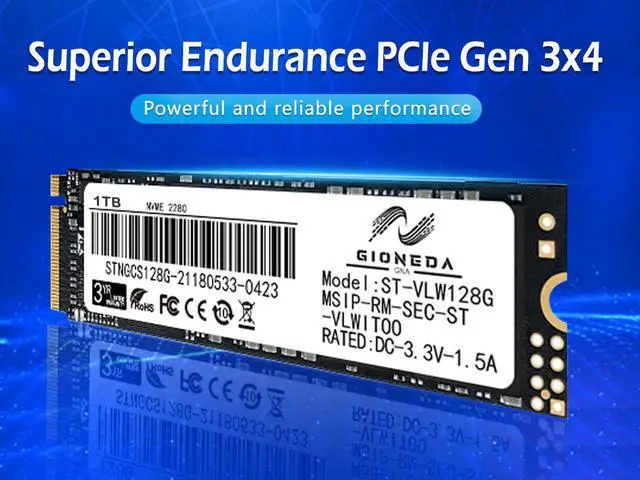

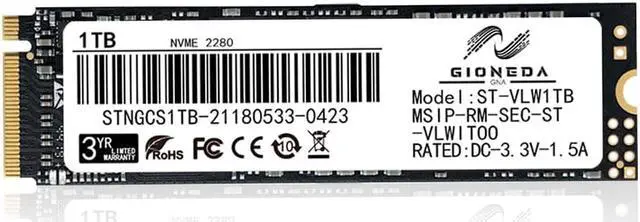

Gioneda 1TB M.2 NVMe SSD, 2280 PCIe Gen3x4 Internal Solid State Drive for PC Laptop/Notebook (M.2 2280, 1TB)
Limited time offer, ends 11/15 By Gioneda Technology
- VERSATILITY: Designed for laptop or desktop computers for faster boot-ups, data transfers, application loads, and response time.

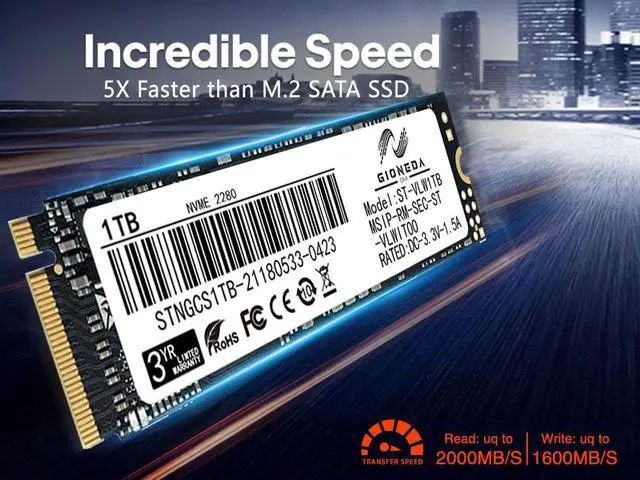

- PERFORMANCE: High-speed PCIe Gen 3x4 interface with read speeds up to 2200MB/s and write speeds up to 1,600MB/s, available in 128GB, 256GB, 512GB, 1TB

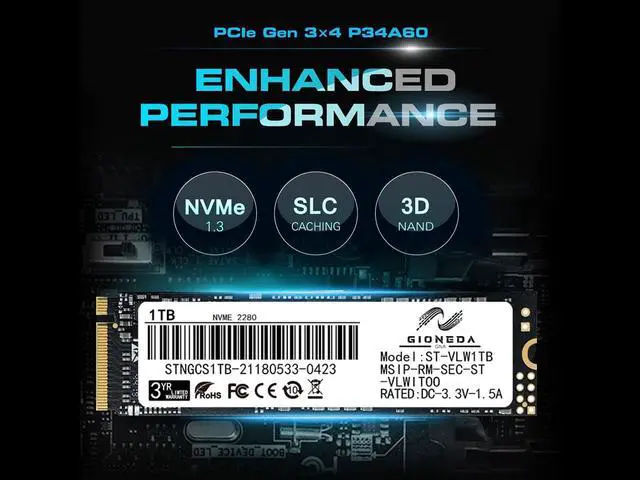

- ENHANCED TECHNOLOGY: Supports NVMe 1.3, Host Memory Buffer (HMB) and SLC Cache to deliver high and efficient performance.

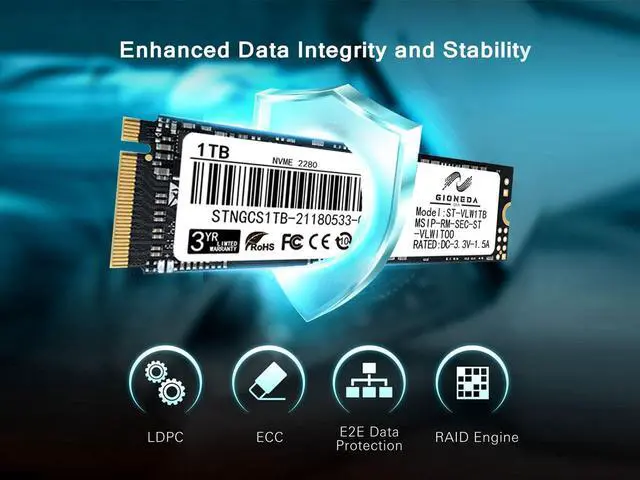

- DATA PROTECTION: LDPC (Low-Density Parity Check), Error Correction Code (ECC) technology, End-To-End (E2E) data protection, and RAID engine for enhanced data integrity and stability.
- EXTENDED RELIABILITY: 3-year limited manufacturer warranty ensures superior quality and reliability.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Form Factor: M.2 2280
Interface: PCI-e Gen3x4
NVME Rev: NVME Rev.1.3- with backwards compatibility to NVME Rev. 1.1
Operation Voltage: DC 3.3V±5%
Flash Type: 3D NAND FlASH
Sequential Read (Max.): Up to 2000 MB/s
Sequential Read (Max.): Up to 1600 MB/s
Max. Random 4K Read: 100200 IOPS
Max. Random 4K Write: 14500 IOPS
Operating Humidity: 5%-95% RH non-condensing
Power Consumption (Max*): 2.0W
Operating Temperature: 0°C ~ +70°C
Storage Temperature: -20°C ~ +75°C
DWPD: 0.69cycle
MTBF: 1 million hours
S.M.A.R.T : Supported
Interface: PCI-e Gen3x4
NVME Rev: NVME Rev.1.3- with backwards compatibility to NVME Rev. 1.1
Operation Voltage: DC 3.3V±5%
Flash Type: 3D NAND FlASH
Sequential Read (Max.): Up to 2000 MB/s
Sequential Read (Max.): Up to 1600 MB/s
Max. Random 4K Read: 100200 IOPS
Max. Random 4K Write: 14500 IOPS
Operating Humidity: 5%-95% RH non-condensing
Power Consumption (Max*): 2.0W
Operating Temperature: 0°C ~ +70°C
Storage Temperature: -20°C ~ +75°C
DWPD: 0.69cycle
MTBF: 1 million hours
S.M.A.R.T : Supported
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by Gioneda Technology Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The Gioneda 1TB M.2 2280 NVMe SSD is an internal PCIe Gen3x4 drive for compatible laptops and desktops, suited to users upgrading storage for faster boot-ups, file transfers, and application loading.
Recommended For
- Laptop or desktop owners replacing a slower system drive who need 1TB for the operating system, everyday applications, and file storage, provided their device supports an M.2 2280 NVMe drive.
- PC builders adding an internal drive for a game library or frequently used applications who have a compatible PCIe Gen3 x4 M.2 slot and do not need newer-generation peak speeds.
- DIY upgraders seeking a 1TB NVMe drive for routine boot, app-launch, and file-transfer tasks on a compatible M.2 2280 system.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Adding 1TB of M.2 NVMe storage to a compatible PC or laptop |
