Stinger SS600XS 8GA Copper 600W Amplifier Wiring Kit with AudioControl LC1i 2-Channel Line Output Converter/Line Driver

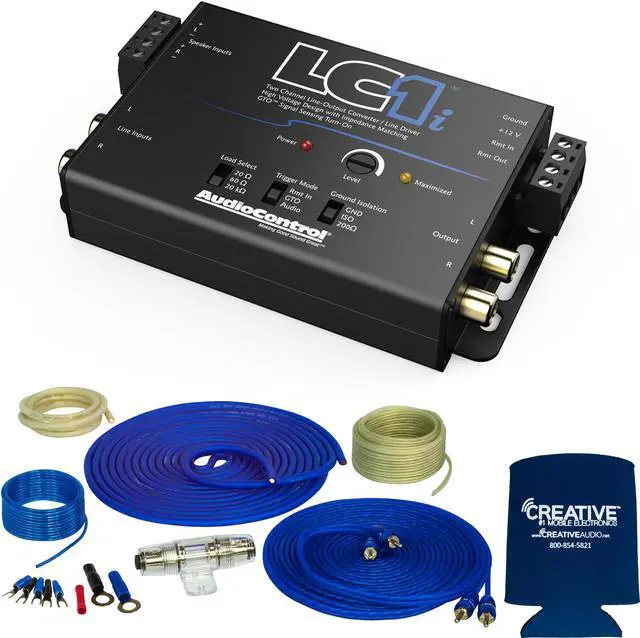

Stinger SS600XS 8GA Copper 600W Amplifier Wiring Kit with AudioControl LC1i 2-Channel Line Output Converter/Line Driver - This bundle includes: AudioControl LC1i Active 2-Channel Line Driver/Output Converter with Impedance Matching, a Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue, and a Creative Audio coozy.

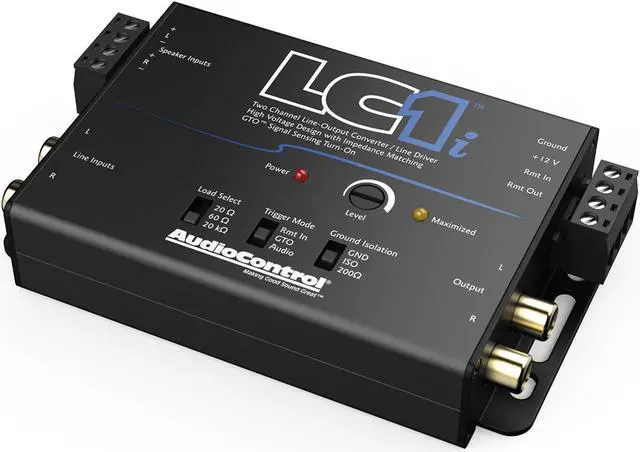

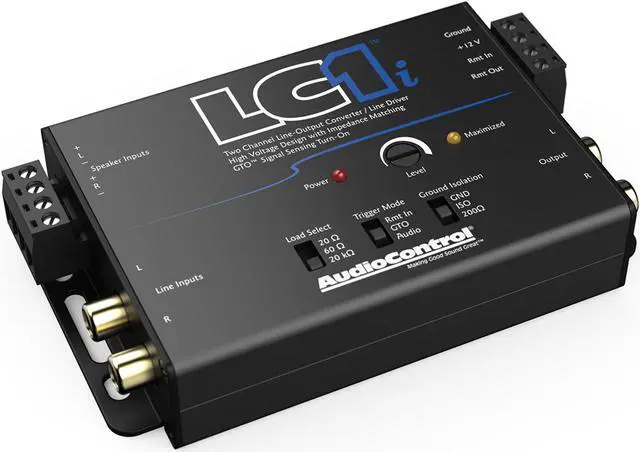

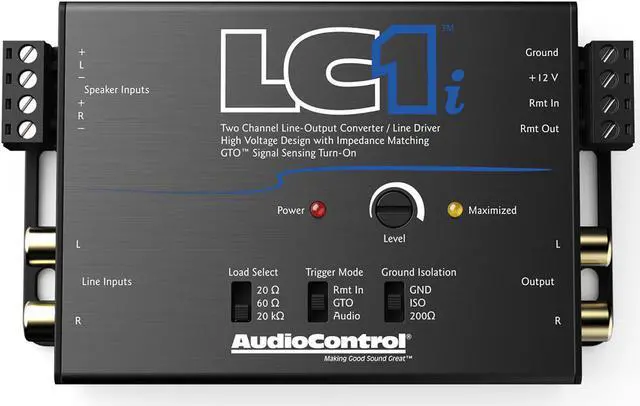

AudioControl LC1i Active 2-Channel Line Driver/Output Converter with Impedance Matching

Features

Two channels of active speaker level inputs (up to 40V input handling)

Two channels of line level inputs

Load Selection Switch

GTOTM Signal Sensing

Ground Isolation Switch

Compact design



Specifications

Inputs

Speaker Level Input: 1 (2 channels)

Maximum Speaker Level Input: 40 Vrms / 400 W (20k setting)

Speaker Level Input Impedance (selectable): 20, 60, 20k

Line Level Input: 1 (2 channels)

Line Level Input Impedance: 7k

Outputs

Preamp Outputs: 1 (2 channels)

Maximum Output Level: 9.5Vrms/13V peak

Output Gain: +/- 12 dB

Output Impedance: 150

Performance

Total Harmonic Distortion: 0.01%

Signal to Noise: >110 dB

Frequency Response: 20 Hz 50 kHz ±1 dB

Control

Remote In / GTO Signal Sense / Audio Sense

12VDC Remote Out (always active when unit is on)

General

Current Draw: 120 mA

Recommended Fuse Rating: 1 A

Weights & Dimensions

Dimensions: 4.8L x 3D x 1H (including speaker connectors)

Weight: 0.55 lbs. (0.25 kg)

In the Box: LC1i, Speaker and Power connectors, Manual, Warranty



Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue

Includes:

17FT Translucent Blue Power Wire

3FT Translucent Silver Ground Wire

17FT Translucent Blue Twisted Pair RCA Interconnects

3FT Black flex loom tubing

16FT Blue Remote Turn-on Wire

20FT Translucent Speaker Wire

1pc AGU Fuseholder
