Stinger SS1200XS 4GA Copper 1200W Amplifier Wiring Kit with AudioControl LC2i-PRO 2-channel line output converter

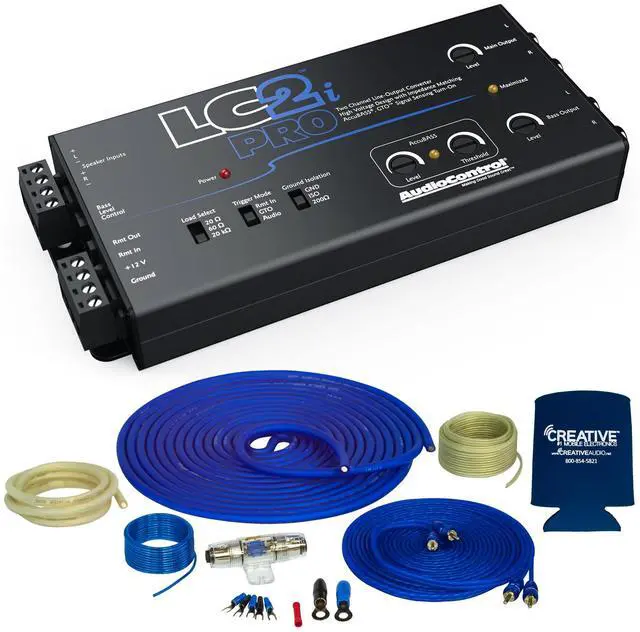

Stinger SS1200XS 4GA Copper 1200W Amplifier Wiring Kit with AudioControl LC2i-PRO 2-channel line output converter - This bundle includes a AudioiControl LC2i-PRO 2 Channel Line Out Converter With Accubass And Bass Control, a Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit, and a Creative Audio coozy.



AudioiControl LC2i-PRO 2 Channel Line Out Converter With Accubass And Bass Control

Features

Two channels of active speaker level inputs (up to 40V input handling)

Fixed and variable outputs with discrete level controls

AccuBASS® processing for correction of bass roll-off

Load Selection Switch

GTOTM Signal Sensing

Ground Isolation Switch

ACR-1 dash remote inluded

Compact design



Specifications

Speaker Level Input: 1 (2 channels)

Maximum Speaker Level Input: 40 Vrms / 400 W (20k setting)

Input Impedance (selectable): 20, 60, 20k

Preamp Outputs: 2 (2 channels main, 2 channels bass)

Maximum Output Level: 9.5Vrms/13V peak

Output Gain: +/- 12 dB

Output Impedance: 150

Total Harmonic Distortion: 0.01%

Signal to Noise: >110 dB

Frequency Response: 20 Hz 50 kHz ±1 dB

Remote In / GTO Signal Sense / Audio Sense

12VDC Remote Out (always active when unit is on)

Current Draw: 200 mA

Recommended Fuse Rating: 1 A

Dimensions: 6.9 L x 3 D x 1 H (including speaker connectors)

Weight: 0.75 lbs. (0.34 kg)



Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit

Includes:

17FT Translucent Blue Power Wire

3FT Translucent Silver Ground Wire

17FT Translucent Blue Twisted Pair RCA interconnects

3FT Black flex loom tubing

16FT Blue Remote Turn-on Wire

20FT Translucent Speaker Wire

1pc Mini-ANL/AFS Fuseholder & Fuse
