Stinger SS1200XS 4GA Copper 1200W Amplifier Wiring Kit compatible with Power Bass ALC2 2-Channel Line Output Converter/Line Driver

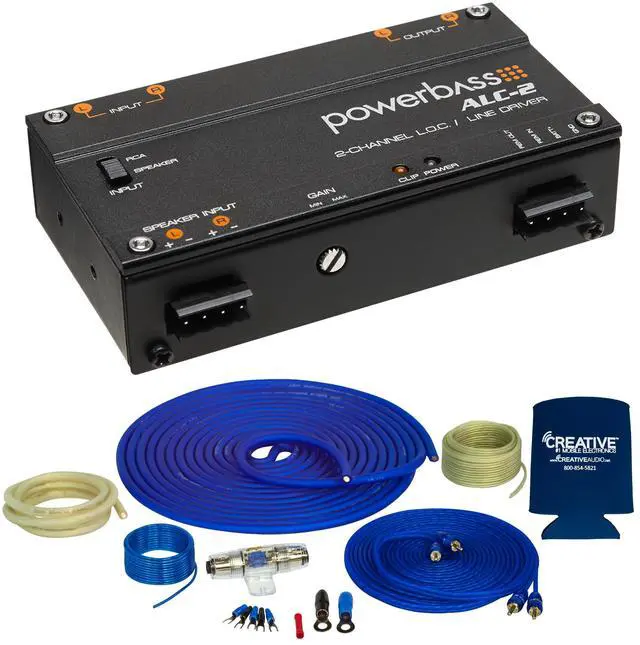

Stinger SS1200XS 4GA Copper 1200W Amplifier Wiring Kit compatible with Power Bass ALC2 2-Channel Line Output Converter/Line Driver - This bundle includes a ALC-2 - 2 Channel High to Low Level Converter, a Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit, and a Creative Audio coozy.

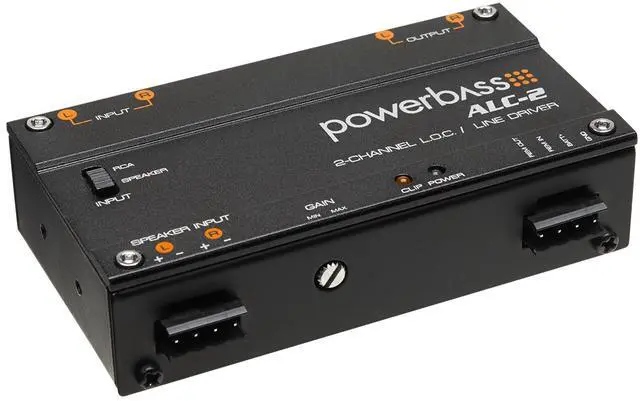

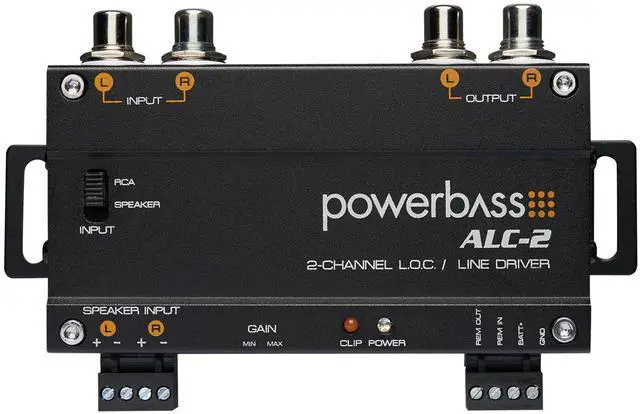

ALC-2 - 2 Channel High to Low Level Converter

Features -

2-Channel High to Low Level Active Converter

Front/Rear High Level Inputs

Front/Rear Variable Gain

Front/Rear RCA Low Level Output

LED Clipping Indicator

Auto Turn-On Circuitry

Variable 13Vrms Output



Specifications -

Maximum Input Power (High Level): 100 watts

Maximum Input Voltage (Low Level): 9.5 volts

Maximum Output Voltage: 13 volts

Frequency Response: 10Hz-100KHz +/-3dB

Total Harmonic Distortion: <0.4%

Signal to Noise Ratio: 94dB

Low Level Input Impedance: >20,000 ohms

High Level Input Impedance: >180 ohms

Output Impedance: <100 ohms

Power Supply: PWM DC/DC

Current Draw: 150mA

Recommended Fuse: 1-amp

Chassis Measurements (W x L x H): 4.4" x 2.3" x 1.1" (111mm x 58mm x 28mm)



Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit

Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder, and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.



Includes:

17FT Translucent Blue Power Wire

3FT Translucent Silver Ground Wire

17FT Translucent Blue Twisted Pair RCA interconnects

3FT Black flex loom tubing

16FT Blue Remote Turn-on Wire

20FT Translucent Speaker Wire

1pc Mini-ANL/AFS Fuseholder & Fuse
