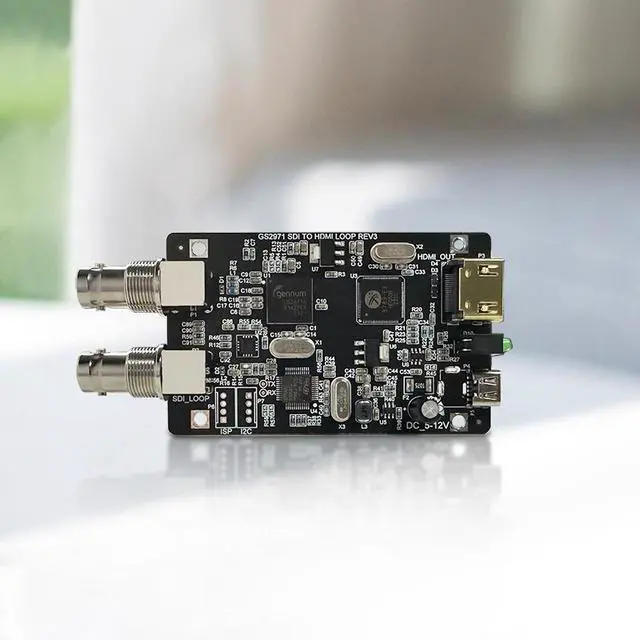

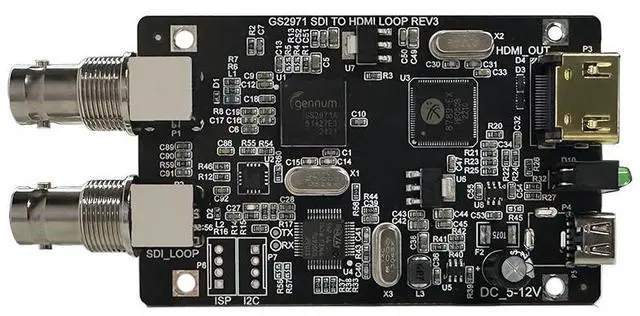

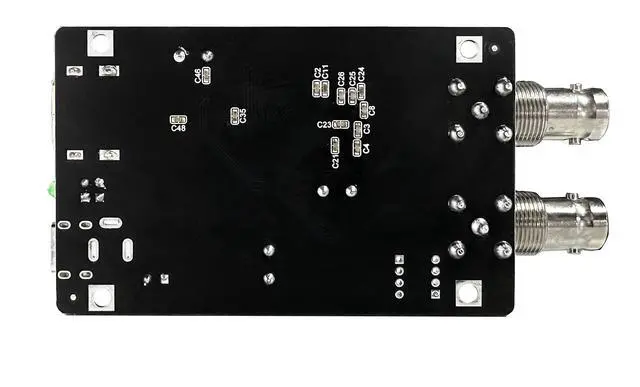

SDI to HDMI Converter Board, 1080P@60Hz SDI Input with SDI Loopout and HDMI Output Adapter Module, Embedded Video Converter PCB
+ 10% off w/ promo code MKTCY0A3MME3,limited offer By XSTRIVE
- -SDI to HDMI Video Conversion: Converts SDI video input to HDMI output, supporting resolutions up to 1080P at 60fps and 720P at 60fps.

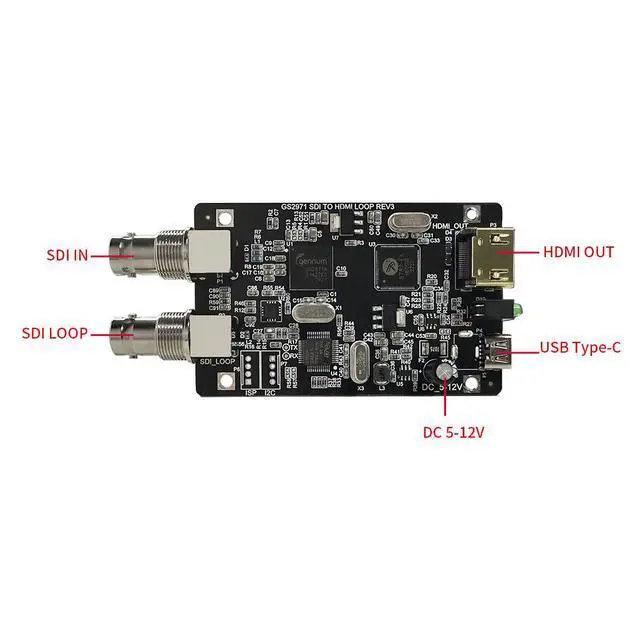

- -SDI Loopout & Standard BNC Ports: Features standard BNC female connectors for 1-channel SDI input and 1-channel SDI loop output
- -Gennum GS2971 Processing Architecture: Built with the Gennum/Semtech GS2971 video receiver chip for reliable SDI signal equalization.
- -Flexible Power Input Options: Operates on DC 5V-12V power supply, compatible with standard terminal power connections or USB Type-C input.
- -Compact PCB Form Factor: Open-frame converter module measuring 10cm x 5cm (100mm x 50mm) and weighing 49g, suitable for custom housing and system integration.
- -Environmental Specifications: Supports standard operating temperatures from 0°C to 70°C.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description
This SDI to HDMI Output Converter Board offers a reliable and efficient solution for converting SDI video signals to HDMI output, making it ideal for professional video applications in the auto and hardware industries. This converter supports high-definition HDMI output at 1080P@60Hz and 720P@60Hz, ensuring clear and vibrant visuals. It features SDI loopout for seamless signal distribution and supports SDI embedded audio, delivering both video and audio through a single connection. The compact design, measuring 10 cm x 5 cm and weighing only 49g, allows for easy integration into various setups. Powered by a DC 12V supply and capable of operating in temperatures from 0°C to 70°C, this board is engineered for dependable performance in demanding environments.
Features
- SDI to HDMI conversion with SDI loopout
- Supports HDMI output at 1080P@60Hz and 720P@60Hz
- SDI embedded audio support
- Compact and lightweight design
- Operating temperature: 0°C ~ 70°C
- Power supply: DC 12V
| Model | XSWEDR-DSDI2HDMI |
| Function | SDI to HDMI Video Converter Module with SDI Loop-out |
| Video Input | 1x BNC SDI Input Interface |
| Audio Input | SDI Embedded Audio |
| Video Output | 1x HDMI Output (1080P @ 60fps / 720P @ 60fps), 1x BNC SDI Loop-out |
| Power Supply | DC 5V - 12V / USB Type-C Port |
| Operating Temperature | 0°C ~ 70°C |
| PCB Dimensions & Weight | 100 x 50 mm (10 x 5 cm) | Weight: 49g (1.72 oz) |
