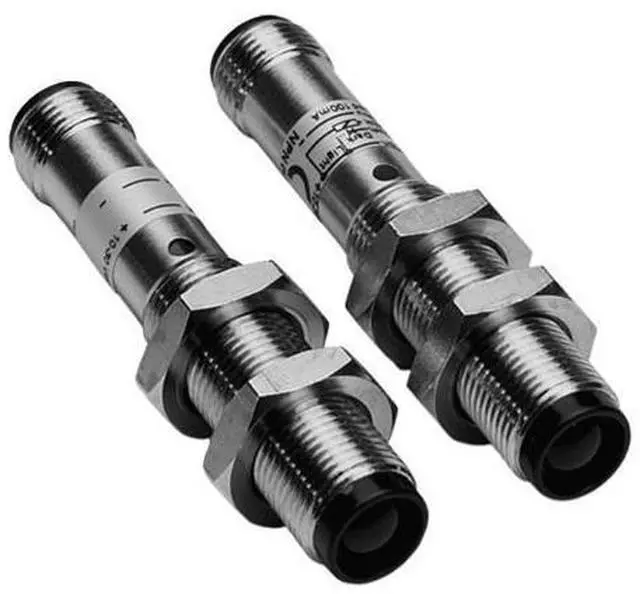

SICK VS/VE12-2N430 Through-beam photoelectric sensor ,NPN ,New
- SICK VS/VE12-2N430 Through-beam photoelectric sensor ,NPN ,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES Sensor/ detection principle Through-beam photoelectric sensor Housing design (light emission) Cylindrical Housing length 66.3 mm Thread diameter (housing) Round connector M12 x 1 Sensing range max. 0 m... 5 m Sensing range 0 m... 4 m Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 100 mm (4 m) Angle of dispersion Approx. 1.4 ° Wave length 880 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 20 mA 3) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Output current Imax.
= 100 mA 3) Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 36 g Housing material Metal, Nickel-plated brass/PA Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C Ambient storage temperature –25 °C... +70 °C
= 100 mA 3) Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 36 g Housing material Metal, Nickel-plated brass/PA Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C Ambient storage temperature –25 °C... +70 °C
