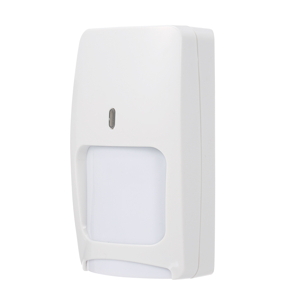

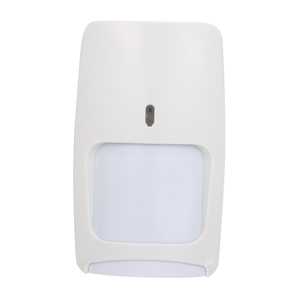

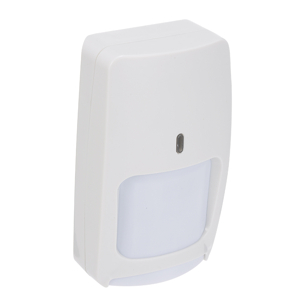

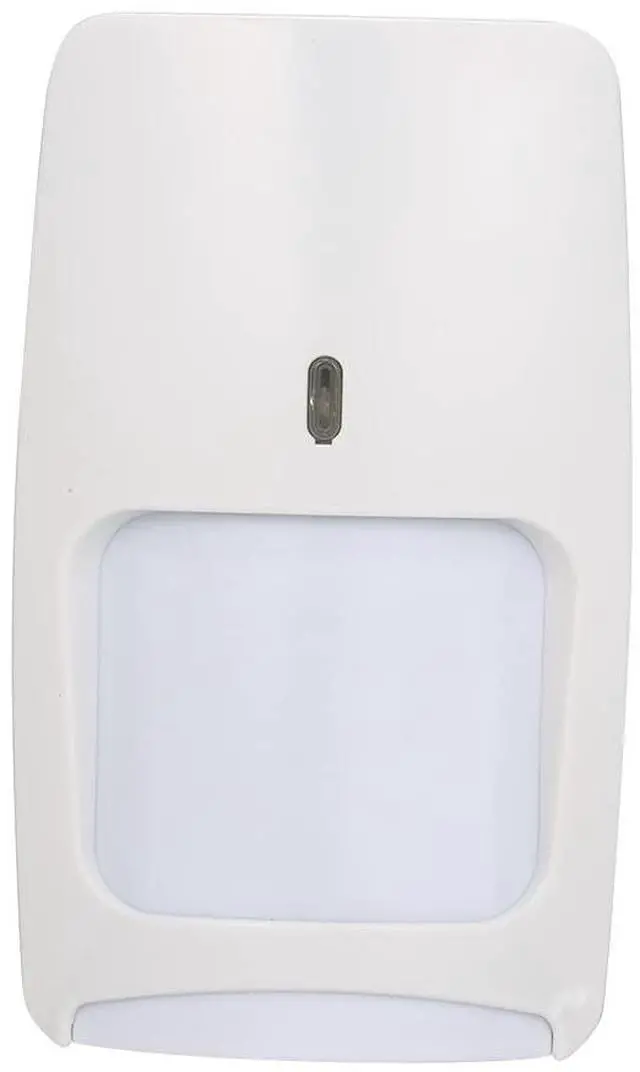

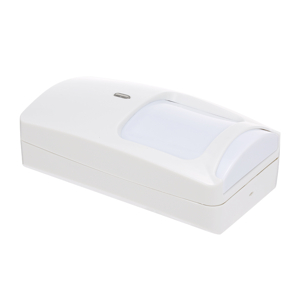

Sunydog Wired Dual-tech Infrared Motion and Micro Detector, Wall Mounted PIR Motion Sensor Pet Immunity for Home Burglar Security Alarm System
The ABS housing is stable and has excellent shock resistance.
Built-in temperature compensation and micro anti-interference function, suitable for use in a variety of hot and cold environments.
K-band micro detection technology can further suppress false alarms and improve detector sensitivity.
Specification:
Color: White
Working Voltage: 7.5V-16V DC / 25mA
Detection Method: PIR and Microwave Detector
Detector Range: 7.6m x 9m
Sensitivity: 2-4 steps of normal pace in the detection zone
Microwave Frequency: 24.125GHZ
Alarm Relay: N.C. 30VDC, 500mA
Antitamper Switch: N.C. 24VDC, 500mA
Anti White Light: 6500LX
Radiation: 30V/m, 10MHz - 1000MHz
Pet Immunity: Casing Material: ABS
Operating Temperature: -15 to 55?
Relative Humidity: 5%-95% (RH)
Item Size: 124x75x43mm/4.88x2.95x1.69in
Item Weight: 125g/4.41oz

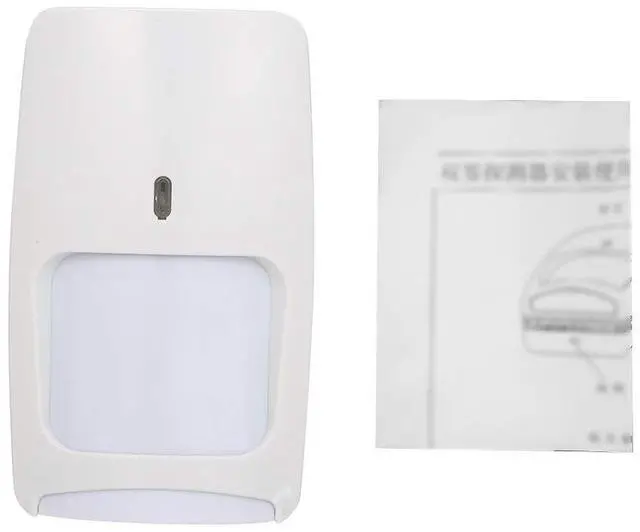

Package List:
1 x Wired PIR Sensor
1 x User Manual
Note: Do not mount the unit in direct sunlight or near heat sources.
