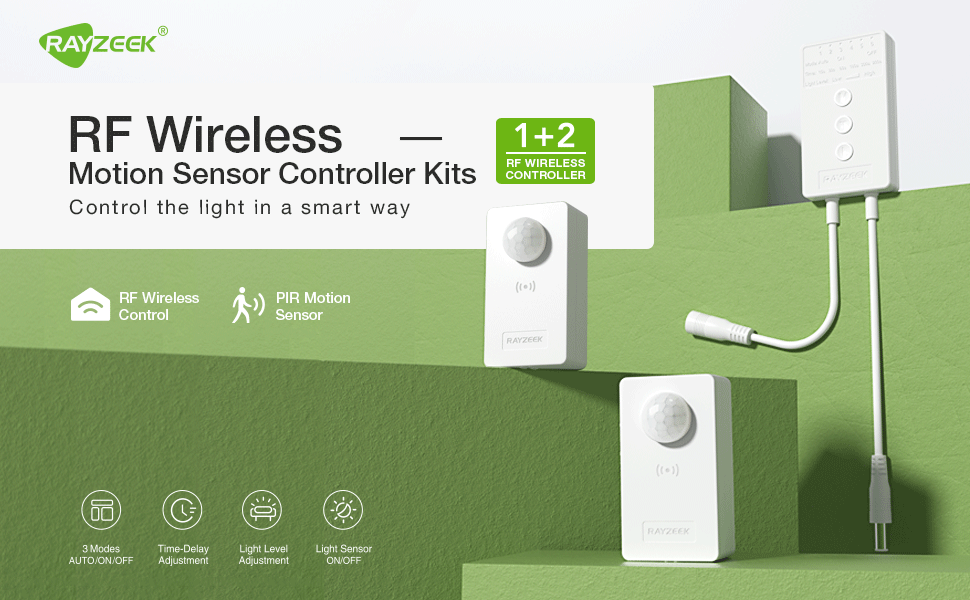

Rayzeek Wireless Motion Sensor and Controller Receiver Kit(1+2)
Do you want to place the sensor wherever you want instead of being fixed where there is a plug?
Do you want to get rid of the traditional sensor and adjust the delay time without using screws?
Rayzeek Wireless Motion Sensor and Controllers-Receiver Kit can widely used to control a DC 12~24V load, Led lights, Led strip lights, Other devices that require automatic illumination or alarm functions.
You can easily control your life needs with the touch of a button, place any location you need for sensor control, create ambiance and light up your life.

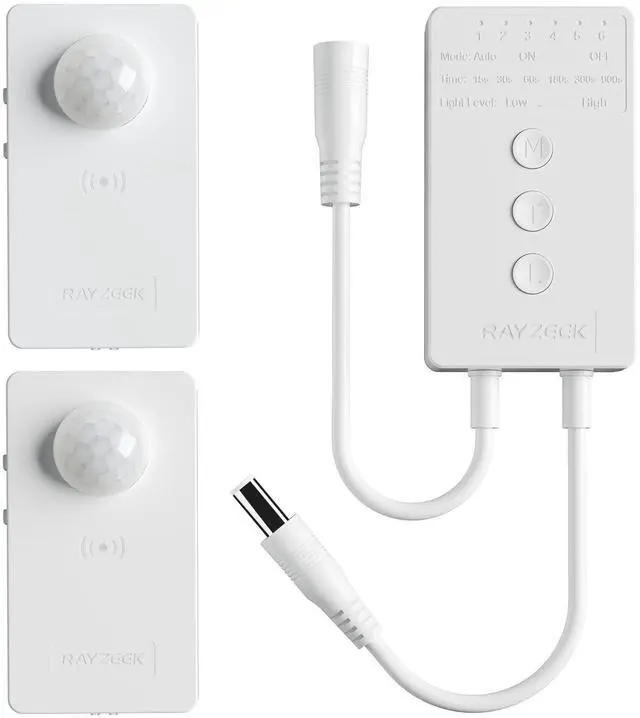

A complete Kit:
- 2x Motion sensor(RZ016W)
- 1x Controller-Receiver(RZ016A)
- 4x Screws
- 3x Double Sided Tape

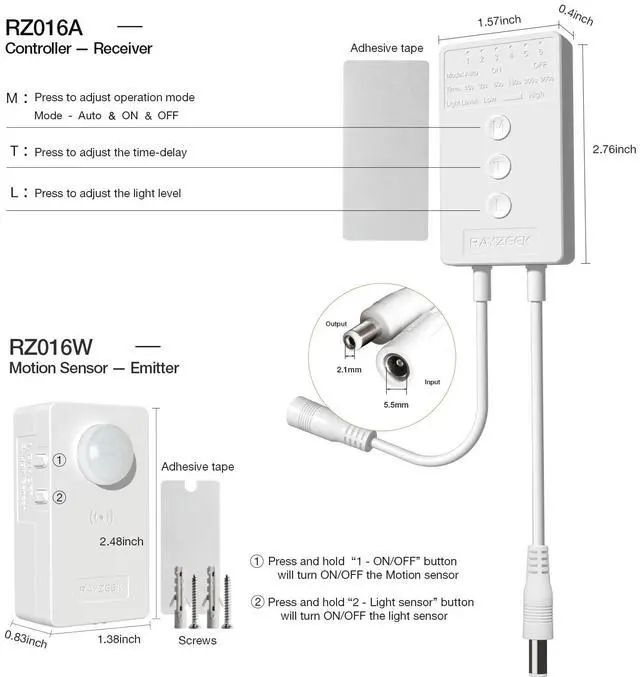

RZ016A Contoller-Receiver
- Input Voltage:DC 12~24V
- Output Voltage: Equal to input voltage
- Load Current: =5A
- Static Power: =10uA
- Mode: Auto/ON/OFF
- Time Delay: 15s.30s. 60s.180s. 300s. 900s. Adjustable
- Light Level: 20%~ 100% Adjustable
RZ016W Motion Sensor-Emitter
- Input Voltage: 2pcs AAA batteries powered(Not include)
- Output Voltage: Equal to input voltage
- Mode: 1. Sensor ON/OFF 2. Light Sensor ON(=35Lux)/OFF
- Detect range: 5~8 Meters

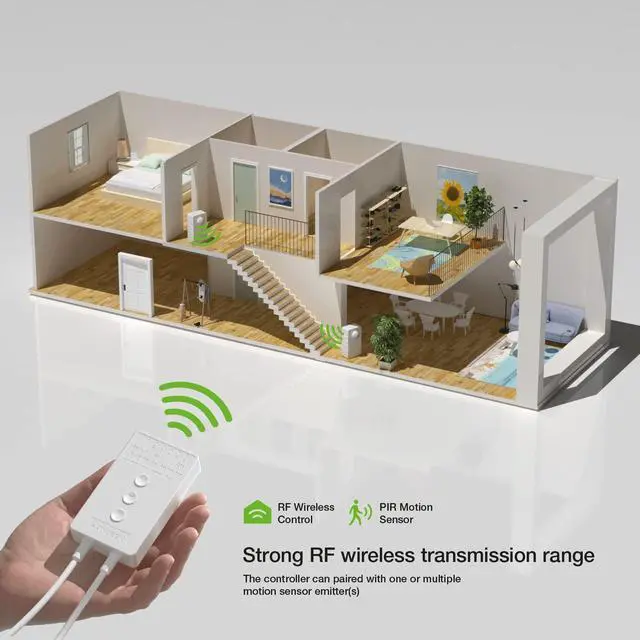

- Wireless transmission range: 7-20 Meters (7M when batteries voltage is lower than 2.5V)

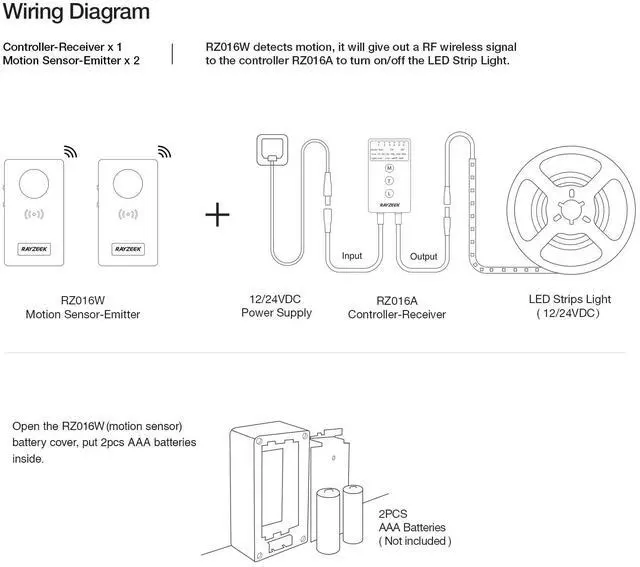

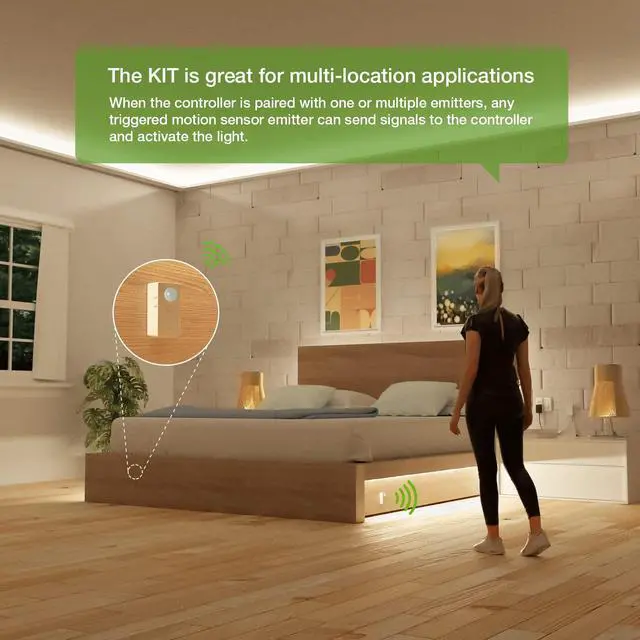

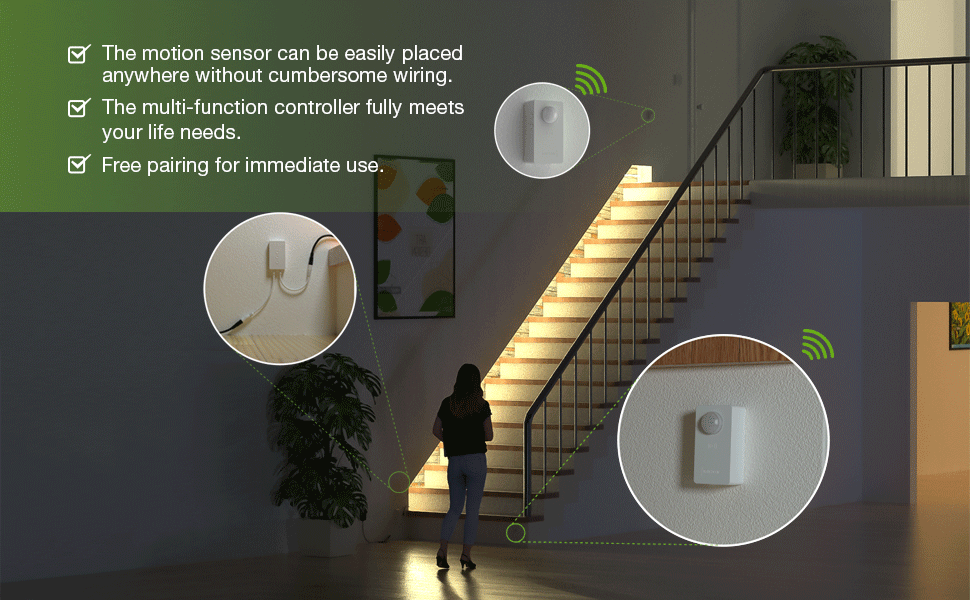

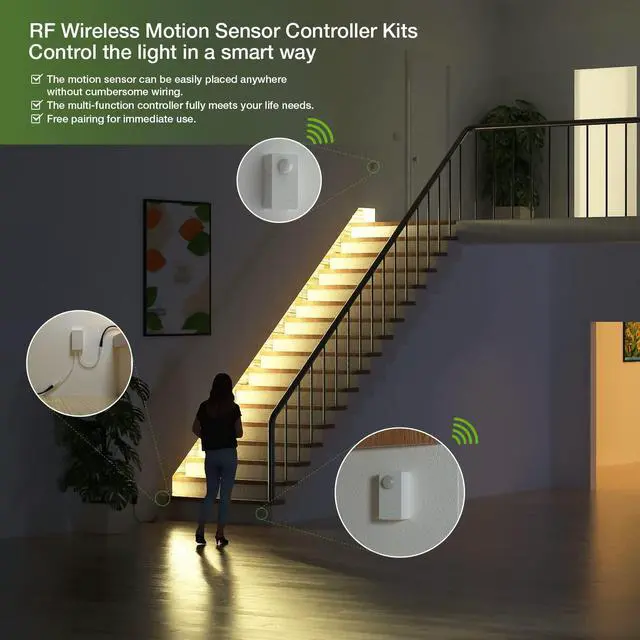

The Wireless Motion Switch Kit is designed for reliable lighting control and extended motion detection range. It can be easily mounted on the wall without the need for any wiring. When motion is detected, the switch sends a signal to the receiver sensor, which processes the signal and controls the lighting fixture. This feature is particularly useful in narrow corridors, stairs, and large spaces.
Features:
- Extended range for option detection and reliable lighting control
- Quick and easy wall mounting without any wiring
- Communication range: 7-20 meters
Tip:
Motion sensor(RZ016W) when sensing movement,the lens will flash red light and then orange light, flashing orange light means that the sensor is not sensing person at the moment
Rayzeek strives to offer innovative and energy-saving lighting solutions for both businesses and consumers worldwide.
Our main lighting control portfolio now includes motion sensors,lighting sensors, dimmers and related lighting components.
Enjoy a touchless, automative, safe and energy-friendly lifestyle with Rayzeek today.
