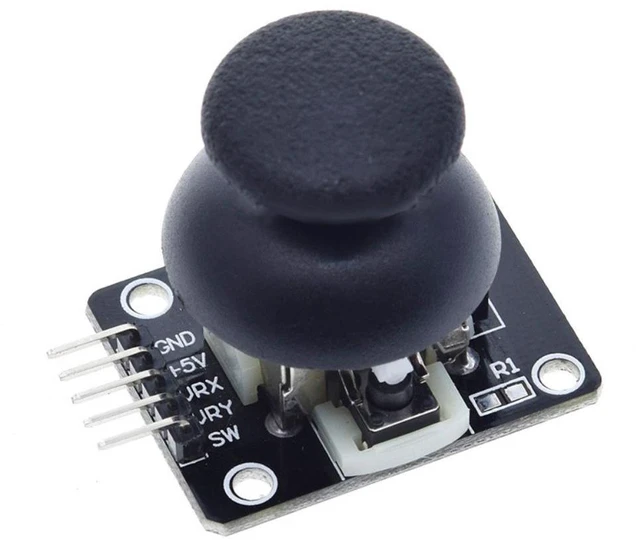

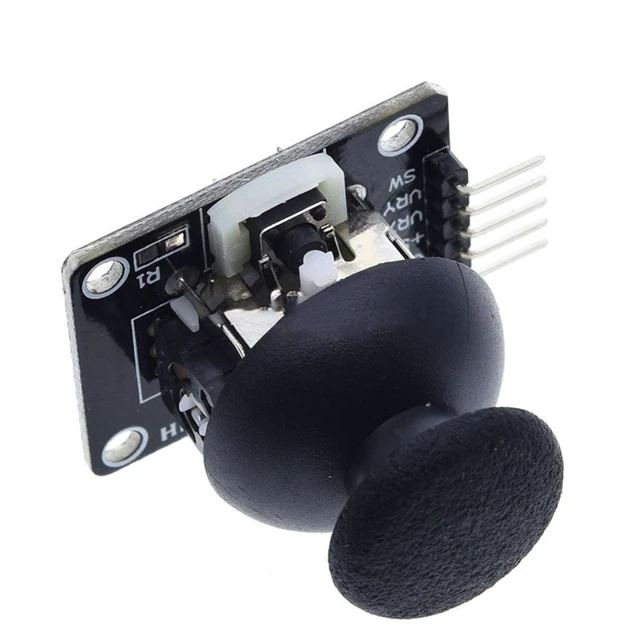

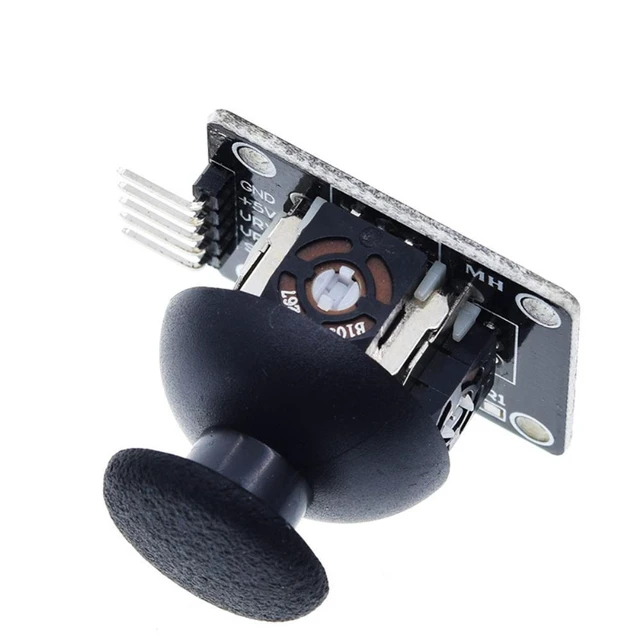

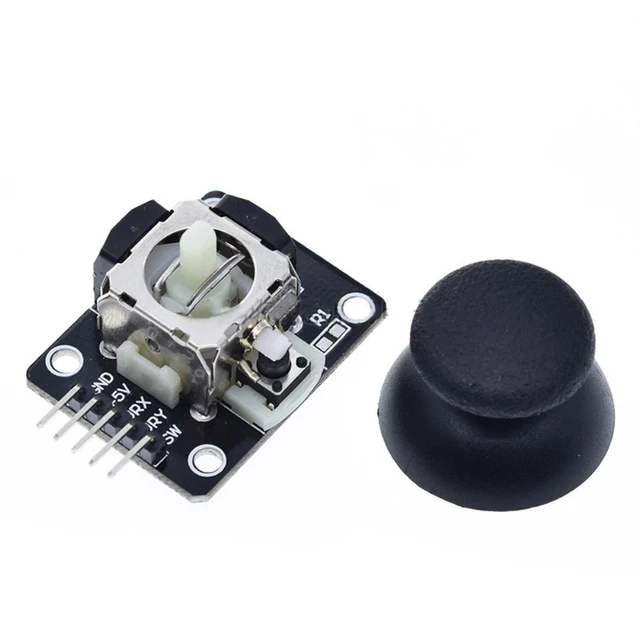

Dual-Axis XY Joystick Module Analog Control Lever Sensor with Push-Button Digital Switch 10K Potentiometer 3.3V-5V Input Separate X/Y/Z Outputs Compatible with Sony PlayStation 2
- Dual-axis XY control provides two analog outputs that correspond to rocker movement along the X and Y directions.
- A Z-axis push button provides a separate digital switch output for button input and control functions.
- The X, Y, and Z circuits use separate leads, supporting connection through standard interfaces and a 3-pin cable.
- The module accepts a DC input voltage from 3.3V to 5V for compatible control-board connections.
- The cross-shaped joystick uses a bidirectional 10K resistor whose resistance changes as the rocker moves in different directions.
- In its original position, the X and Y outputs read approximately 2.5V; directional movement changes the readings between 0V and 5V.
- The PS2 rocker potentiometer design combines directional analog sensing with an integrated digital push-button switch.
- Compatible with Sony model playstation2 and designed for use with a sensor expansion board for interactive remote-control projects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
Dual-axis XY joystick module with a rocker control lever, two-axis analog sensing, and a separate button switch output. It is designed for interactive control projects requiring X-axis, Y-axis, and Z-axis input signals.
Core Selling Points:
The module provides independent X and Y analog outputs for directional positioning and a Z-axis digital output activated by pressing the joystick. Its separate axis leads support connection to standard 3-pin interfaces. The bidirectional 10K resistor changes resistance as the rocker moves in different directions, enabling variable directional readings.
Technical Specifications:
Product type: Dual-axis XY joystick module. Input voltage: DC 3.3V to 5V. Outputs: X-axis analog, Y-axis analog, and Z-axis digital switch. Joystick resistance: Bidirectional 10K resistor. With 5V power, the X and Y outputs are approximately 2.5V in the original position, increase toward 5V when pressed in the corresponding direction, and decrease toward 0V in the opposite direction. Color: Black. Size: As shown in the product image.
Package Contents:
1 dual-axis joystick module.
Before Purchase:
Confirm that your project supplies DC 3.3V to 5V and supports separate X, Y, and Z signal connections. The listed size is shown in the product image, and manual measurement differences of 0.1-0.3 cm may occur. Display and lighting conditions may cause the actual color to vary slightly from the image.
