#Please refer to the official website for detailed specifications#
#The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#

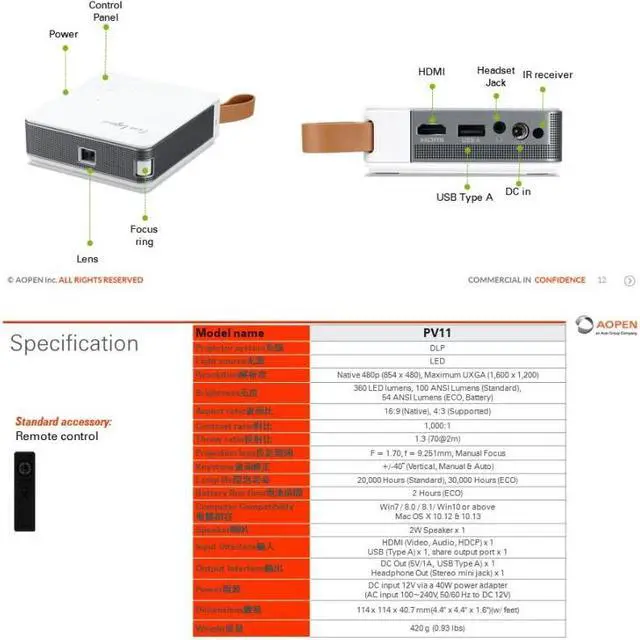

Product name PV11
Display panel 0.2 inch DMD
projection system DLP
Resolution Native 480p (854 x 480)
Max UXGA (1, 600 x 1, 200)
Brightness 360 LED lumens,
100 ANSI lumens (standard)
54 ANSI lumens (power saving, battery)
Aspect ratio 16:9 (native), 4:3 (supported)
Contrast Ratio 1, 000:1
Color 16.7 million colors
Projection Lens F = 1.70, f = 9.251 mm, Manual Focus
Throw Ratio 1.3 (70 inches @2 meters)
Zoom factor 1X
Projection screen size 30" ~ 100" (76 cm ~ 254 cm)
Projection distance 0.86 m ~ 2.88 m ( 2.80 ft ~ 9.44 ft)
Shadow Offset 100%
Keystone correction +/-40° (vertical, manual and automatic)
Light source LED
Lamp life 20, 000 hours (standard), 30, 000 hours (saving)

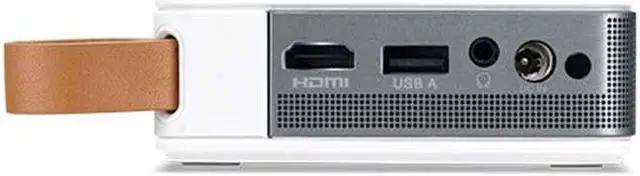

Input Interface HDMI (Video, Audio, HDCP) x 1, USB (Type A) x 1, Shared Output Port x 1
Output Interface DC Out (5V/1A, USB Type A) x 1, Headphone Out (Stereo Mini Jack) x 1
Control Surface N/A
Network Interface N/A
Audio 2W Speaker x 1
Dimensions (W x D x H) 114 x 114 x 40.7 mm ( 4.4" x 4.4" x 1.6" ) (with stand)
Weight 420 g ( 0.93 lb)
Noise strength 25 dBA (standard),
24 dBA (power saving)
Projection mode Front projection, Upward projection, Rear projection, Ceiling front projection, Ceiling rear projection
Computer compatibility IBM PC and compatibles and VESA standard 1080p (1, 920x1, 080), WSXGA+ (1, 680 x 1, 050), WXGA+ (1, 440 x 900), WXGA (1, 366 x 768, 1, 280 x 800, 1, 280 x 768), UXGA (1, 600 x 1, 200), SXGA+ (1, 400 x 1, 050), SXGA (1, 280 x 1, 024), XGA (1, 024 x 768), SVGA (800 x 600)
Video Compatibility N/A
3D Compatibility N/A
Power supply DC input 12V via a 40W power adapter (AC input 100~240V, 50/60 Hz to DC 12V)
Battery Li-ion Rechargeable ( 3.7V, 5200mAh)
Battery Run Time 2 Hours (ECO)
Operating temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 80%RH (Max)
Smart Specification N/A
Wireless Connection N/A
Accessories (Standard) AC to DC Transformer
Quick Start Guide
IR remote control
HDMI cable
