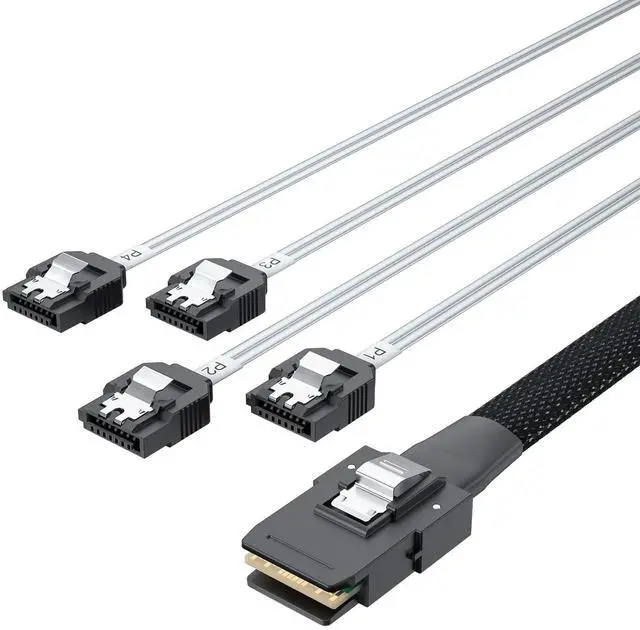

Vszerda MiniSAS SFF-8087 Fan-Out Cable Breakout to 4xSATA, 6Gbps High-Speed Cable for RAID Controllers, Servers & Storage Enclosures, with Shrapnel, 0.75~0.8m(2.46~2.62ft)
- Internal SAS SFF-8087 to 4x SATA Forward Cable, 0.8-m (2.6ft)
- Impedance = 100 Ohms. Up to 6Gbps data rates per channel.

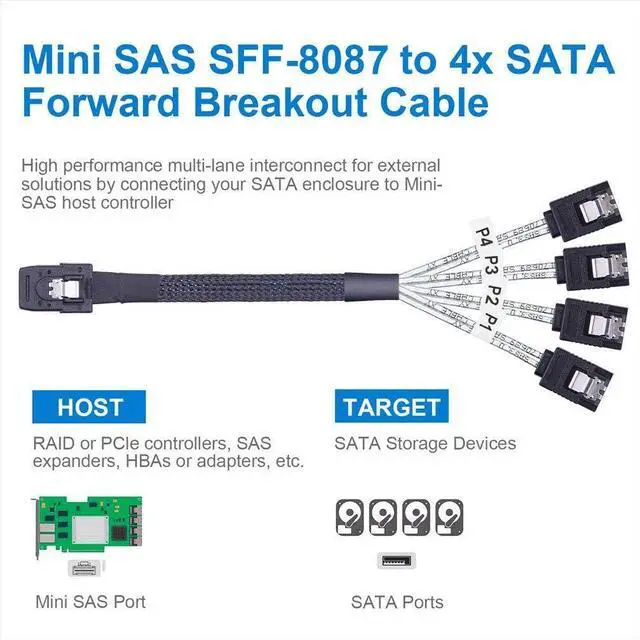

- This Mini SAS to SATA forward cable, 36pin SFF-8087 is host, connected to the motherboard or RAID Controller with SFF-8087 port. 4x7Pin SATA is the target, connect to backplane or SATA hard disk with SATA port.

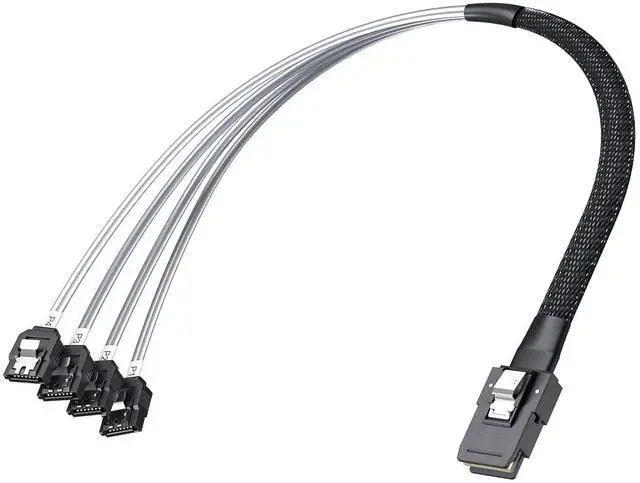

- The flexible design of the Mini SAS to SATA breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; a Woven mesh sheath covers half of the cable for easy routing.

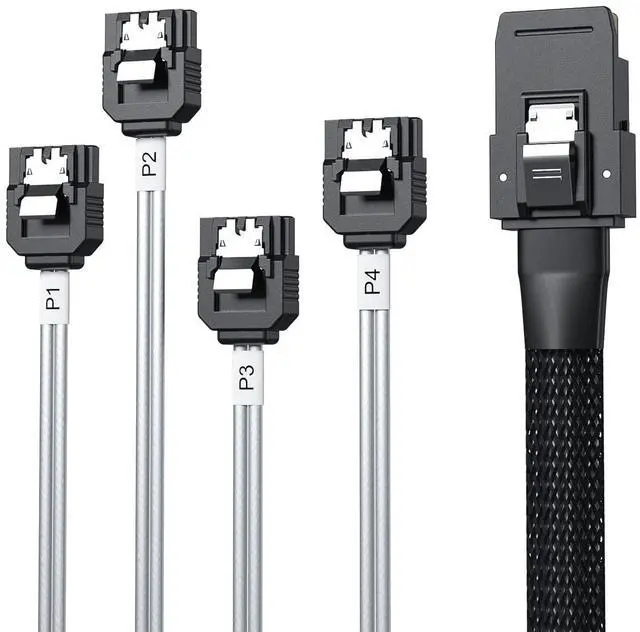

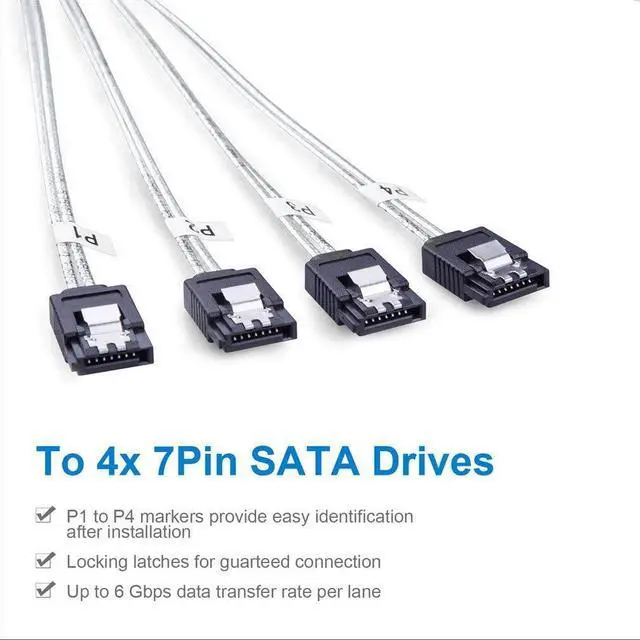

- P1 to P4 markers provide easy ID after installation; Low-profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration disconnections.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Internal SAS SFF-8087 to 4x SATA Forward Cable, 0.8-m (2.6ft)
- Impedance = 100 Ohms. Up to 6Gbps data rates per channel.
- This Mini SAS to SATA forward cable, 36pin SFF-8087 is host, connected to the motherboard or RAID Controller with SFF-8087 port. 4x7Pin SATA is the target, connect to backplane or SATA hard disk with SATA port.
- The flexible design of the Mini SAS to SATA breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; a Woven mesh sheath covers half of the cable for easy routing.
- P1 to P4 markers provide easy ID after installation; Low-profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration disconnections.
