Vszerda SFF-8087 to SFF-8087 6G Internal Mini SAS Cable for Server Backplane/RAID Card, Hot-Swap Ready with SATA Compatibility, 100-Ohm, 0.5-m(1.6ft)
- [Internal Mini SAS Cable]10Gtek Mini SAS internal cable assembly provides high-speed transfers up to 6 Gbps. Compatible with SAS or SATA storage systems and hot-swappable SATA/SAS drive bays.
- [Advantage]It is the ideal interconnect solution for the growing server and storage markets. MiniSAS is designed to significantly reduce cable size on current storage systems using SAS 4-lane (4x or 4 data lanes) and be widely used in next-generation designs.

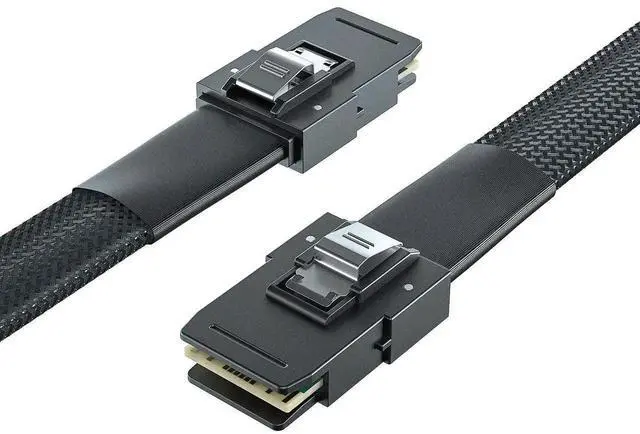

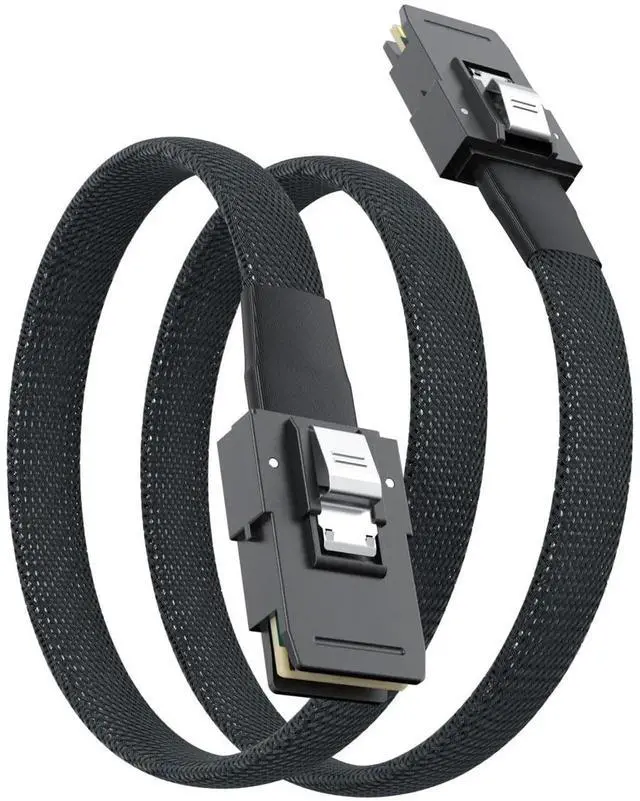

- [Design]Both sides of the SFF-8087 cable are wrapped with an industrial-grade braided mesh jacket over individually shielded ribbon cable, a tape strain relief to protect the cable without creating rigidity, and a rugged 36-pin SFF-8087 connector with stainless steel Latch to ensure a secure connection.

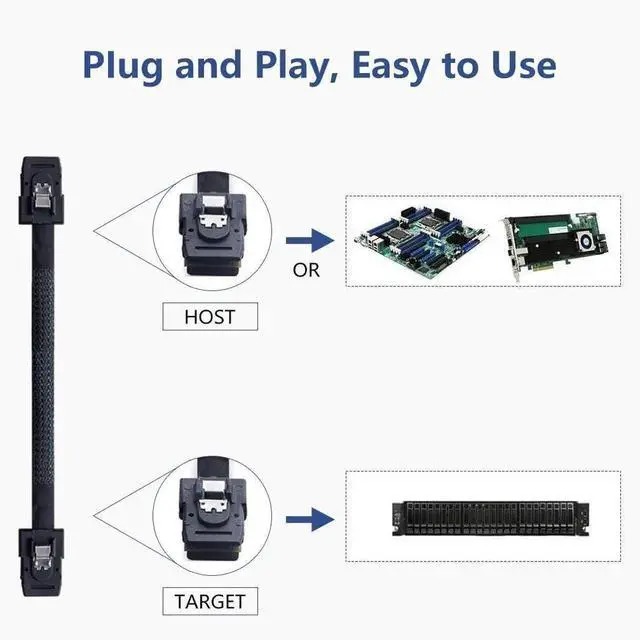

- [Application]Server RAID system; Storage system SAS/SATA; HBA interface; Direct-attached storage (DAS).
- [More]If the cable you need is not above, please contact us for your design.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- [Internal Mini SAS Cable]10Gtek Mini SAS internal cable assembly provides high-speed transfers up to 6 Gbps. Compatible with SAS or SATA storage systems and hot-swappable SATA/SAS drive bays.
- [Advantage]It is the ideal interconnect solution for the growing server and storage markets. MiniSAS is designed to significantly reduce cable size on current storage systems using SAS 4-lane (4x or 4 data lanes) and be widely used in next-generation designs.
- [Design]Both sides of the SFF-8087 cable are wrapped with an industrial-grade braided mesh jacket over individually shielded ribbon cable, a tape strain relief to protect the cable without creating rigidity, and a rugged 36-pin SFF-8087 connector with stainless steel Latch to ensure a secure connection.
- [Application]Server RAID system; Storage system SAS/SATA; HBA interface; Direct-attached storage (DAS).
- [More]If the cable you need is not above, please contact us for your design.
