SAPPHIRE NITRO Radeon RX 7900 XT OC 20GB Graphics Card ,320 bit GDDR6 PCI Express 4.0 x16 ATX Video Card

Core
AMD Radeon RX 7900 XT Graphics Card

5nm GPU

AMD RDNA 3 Architecture

Core Frequency
Acceleration Up to 2450 MHz
Gaming Clock Frequency Up to 2075 MHz



The boost clock frequency is the maximum frequency achievable on GPUs performing bursty workloads. The achievability, frequency, and sustainability of the boost clock will vary based on several factors including, but not limited to, thermal conditions and variations in applications and workloads.

Game Clock refers to the GPU clock for general gaming applications, while TGP (Total Graphics Power) will vary depending on the game being played.
Streaming Processor Count
5376
Compute Units
84 CU (with RT+AI Accelerators)
Infinity Cache
80 MB
Ray Accelerators
84 CUs (with RT+AI Accelerators)
Video Memory
20GB/320 bit GDDR6
Memory Frequency
20 Gbps (Effective)
Multi-Display
Up to 4 Displays
Resolutions: HDMI: 7680×4320
HDMI: 7680×4320
DisplayPort 2.1: 7680×4320
Interface Type
PCI-Express 4.0 x16

Interface
2x HDMI
2x DisplayPort


BIOS Support
Single UEFI
Recommended Games
4K
Sapphire Features
Digital Power Design
Ultra High Efficiency Aluminum Capacitors
Fuse Protection Design

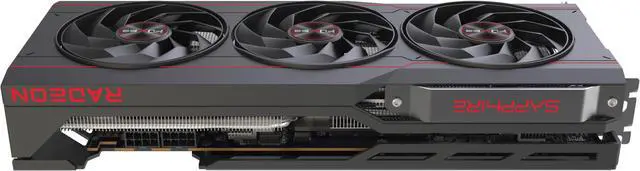

Tri-X Triple Fan Cooling Technology
High TG Copper PCB
Optimized composite heat pipes
Intelligent Fan Control
Precise Fan Control

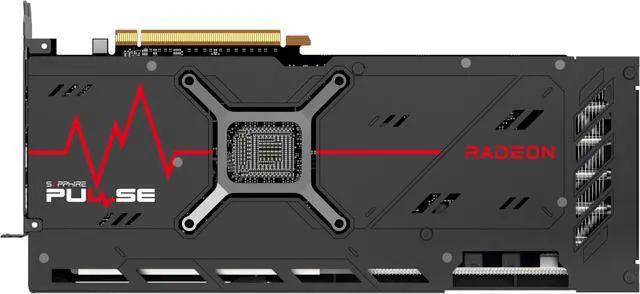

Metal Backplate
Dual Ball Bearing
Folded Blade Design
TriXX Software Support
TriXX Boost
Graphics Card Support Bracket
FEATURES
AMD RDNA 3 Architecture
84 AMD RDNA 3 ops unit (with RT+AI Accelerators)
80 MB AMD Infinity Cache Technology
DisplayPort 2.1
AMD Radiance Display Engine
AMD Radeon Boost Technology
AMD Radeon Anti-Lag* Technology
20GB GDDR6 on 320-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX Technology
AMD FidelityFX Super Resolution Technology
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies
AMD Software: Adrenalin Edition application
AMD Noise Suppression
AMD Privacy View
AMD Radeon Super Resolution technology
AMD Link
AMD Freesync technology
Cooling System
3 Fans

Card Size
2.7 slot, ATX
LxWxH: 313 (L) x133, 75 (B) x 52.67 (H) mm

Power Consumption
331W Total Board Power
Operating System: Linux®, Windows® 10, Windows® 7, Windows® 8, Windows® 9
Linux®, Windows® 10, Windows 11, 64Bit System Requirements

Required/External Power Supply
Minimum 800 Watt Power Supply
2 x 8-pin power cables.
One x16-channel PCI
Express® slot on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
