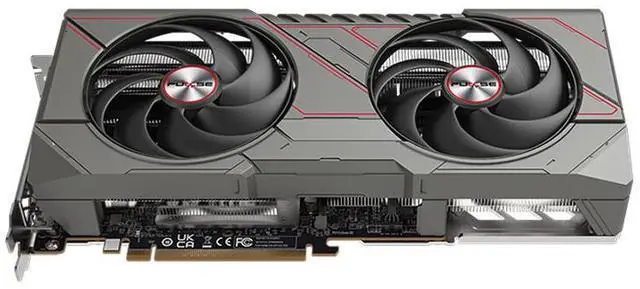

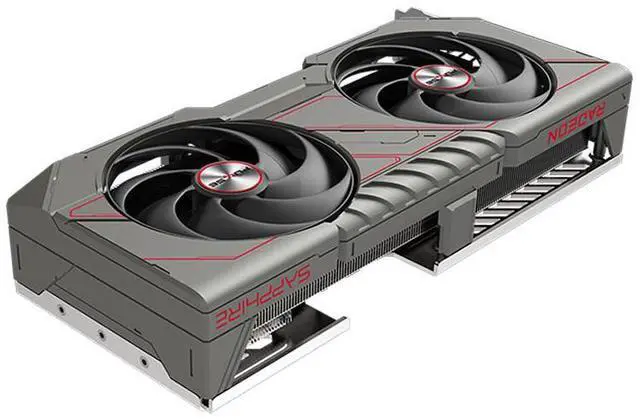

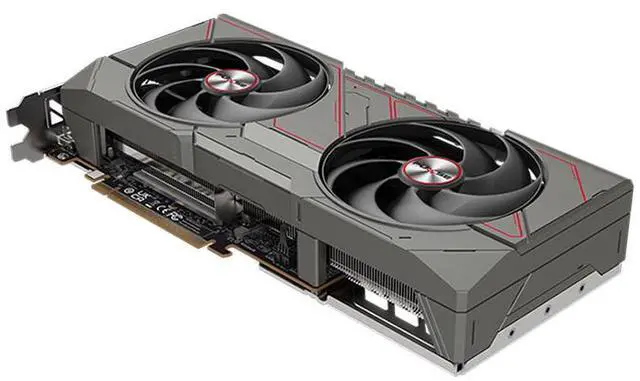

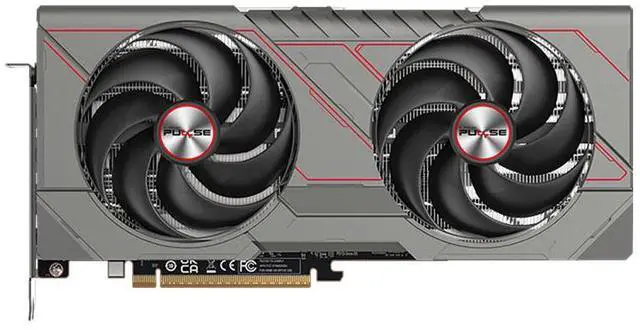

SAPPHIRE METAL PULSE Radeon RX 9070 16GB GDDR6 PCI Express 5.0 x16 ATX Graphics Card

Core

AMD Radeon RX 9070 Graphics Card

AMD RDNA 4 Architecture

Core Frequency

Boost Clock: Up to 2520 MHz

Game Clock: Up to 2070 MHz

Boost clock frequency is the maximum frequency achievable on the GPU when performing bursty workloads. The achievability, frequency, and sustainability of boost clock will vary based on several factors, including but not limited to thermal conditions and application and workload variations.

Game Clock refers to the GPU clock speed during typical gaming applications. TGP (Total Graphics Power) will vary depending on the game being run.

Stream Processors

3584

Compute Units

56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64 MB

Ray Accelerators

56

AI Accelerators

112

Video Memory

16 GB/256-bit GDDR6

Video Memory Frequency

20 Gbps (effective)

Multi-Display

Up to 4 Displays

Resolution

HDMI®: 7680 × 4320

DisplayPort 2.1a: 7680 × 4320

Interface Type

PCI-Express 5.0 x16

Interfaces

2x HDMI®

2x DisplayPort 2.1a

BIOS Support

UEFI

Recommended Games

4K

Sapphire Features

Honeywell PTM7950 Thermal Interface Material (TIM)

AeroCurve Fan Blades

Free Flow

FrameDefense

Integrated Thermal Module

Dual-X Cooling Technology

High TG Copper PCB

Optimized composite heat pipe

Metal backplate

Dual ball bearing fan

12-phase digital power design

Fuse protection

Intelligent fan control

Precision fan control

TriXX support

TriXX Boost

Features

AMD RDNA 4 architecture

56 compute units (3rd Gen RT + 2nd Gen AI accelerators)

AMD HYPR-RX (supports AFMF 2)

AMD FidelityFX Super Resolution 4 (supports AI upscaling)

DisplayPort 2.1a

AMD Radiance Display engine

AMD Fluid Motion Frames 2 technology

AMD Radeon Anti-Lag 2 technology

AV1 encoding/decoding

AMD FidelityFX technology

Microsoft® DirectX® 12 Ultimate

AMD noise reduction

AMD Freesync technology

16GB GDDR6 on a 256-bit memory bus

AMD intelligent technology

AMD Software: Adrenalin Edition Applications

Cooling System

Dual-X Cooling

AeroCurve Fan Blades

Free Flow

Integrated Thermal Module

High-TG Copper PCB

Optimized Composite Heatpipe

Dual Ball Bearings

Graphics Card Dimensions

2.5 slot, ATX

L x W x H: 280 (L) x 120.25 (W) x 51.5 (H) mm

Power Consumption

220W Typical Motherboard Power

Operating System

Linux®, Windows® 10, Windows 11, 64-Bit

System Requirements

Required/External Power Supply

Minimum 650W Power Supply

Two 8-pin Power Connectors

Requires a PCI Express®-based PC with one x16 lane graphics card slot on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
