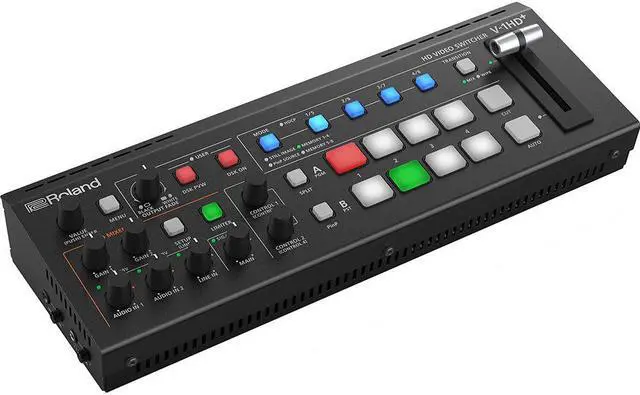

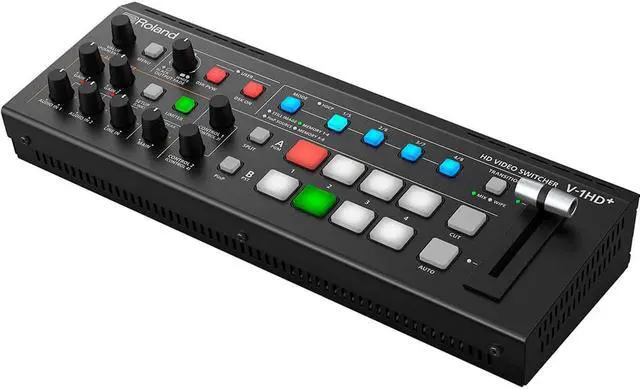

Roland Ultimate Compact V-1HD+ HD Video Switcher

Roland's V-1HD+ Compact 4 x HDMI Video Switcher is a portable solution for HD video production that accommodates up to four HDMI inputs, as well as PC resolutions over one of the inputs. Each input has a frame buffer/TBC and support frame rate conversion, so you don't need to genlock your input sources together. You can control the switcher manually by using the built-in controls or remotely via RS-232, and it has a tally output for working with live cameras. Select your working resolution and switch between four input sources. Built into the switcher is a 14-channel audio mixer that can de-embed and embed audio signals from HDMI. The integrated T-fader allows you to manually control the speed of transitions, or you can use the take button to actuate your selected transition. The unit features two HDMI outputs, both of which are selectable between program and multiview (with up to 10-views on each output), and output #2 also supports an on-screen menu display. The V-1HD+ also features a four-layer effects engine that supports keying effects, PiP, and downstream keys. It has internal memory for four still images, and you can access external drives via the USB port as an additional image source.

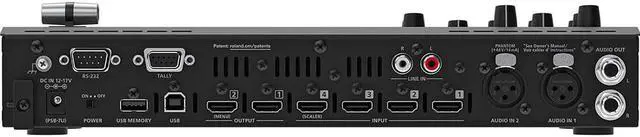

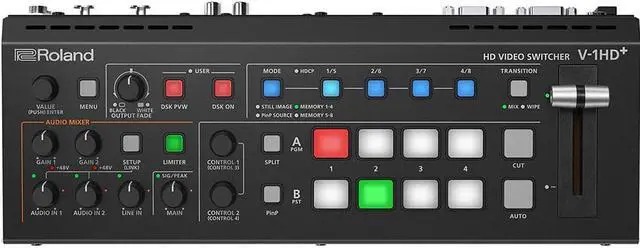

The V-1HD+ features PGM and PST busses, as well as a transition/fade bar (T-bar), which are industry-standard video switching controls. Tactile audio volume knobs, signal/peak lights, and unity gain markers enable intuitive sound level adjustments on the fly. This compact HD switcher has four HDMI inputs, supporting HD video and PC resolutions. Each input incorporates a frame buffer/TBC that allows you to use non-genlocked cameras and as play-out devices as video sources. You select the broadcast system (59.94/50 Hz) within the menu. The built-in 14-channel audio mixer allows you to de-embed audio from the HDMI stream, mix, and re-embed the audio into your output stream. In addition to the embedded audio, the V-1HD+ supports analog audio input via two 3-pin XLR, a left/right pair of RCA connectors, and a 3.5mm stereo mic input. Each audio input has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 3.5mm inputs also include de-essers to clean up vocal sounds in real time. The built-in limiter, three-band equalizer, and compressor on the main outputs enable you to deliver broadcast-quality sound over the analog audio outputs.


Box Contains

Roland V-1HD+ Compact 4 x HDMI Video Switcher


• AC Adapter/Power Cord


• Cord Hook


• Limited 1-Year Warranty
