1pc Grove Breakout for LinkIt 7697
- Up to 12 Grove Sockets
- Easy Mounting with 2x14 Pin Female Header
- Debug Pin Header Supported
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

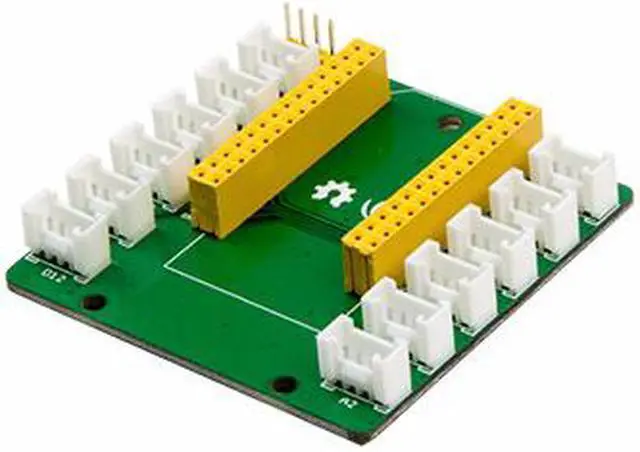

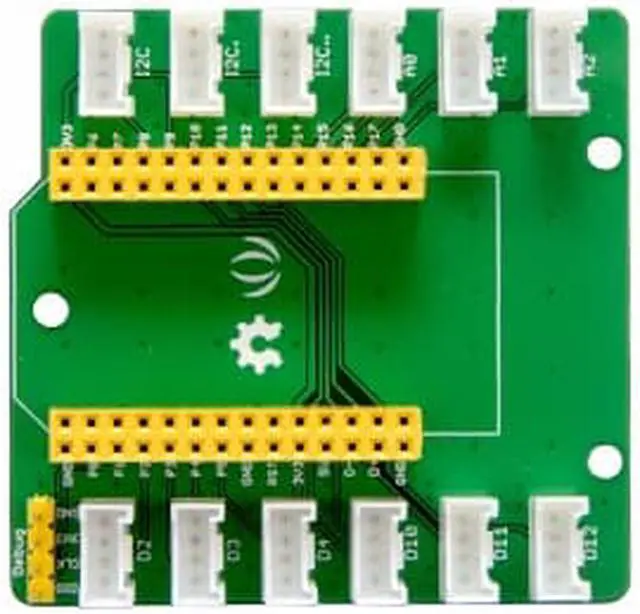

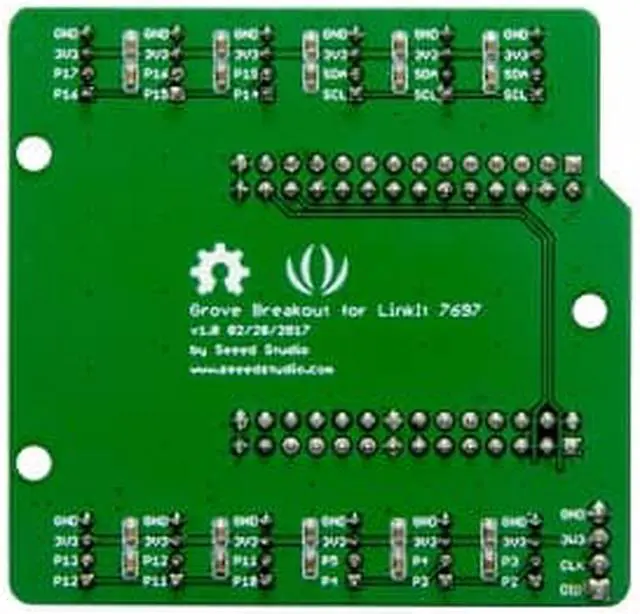

Grove Breakout for LinkIt 7697 is a Grove port integrated and a feature expansion board for LinkIt 7697 development board. The onboard 2x14 pin female header allows you to plug LinkIt 7697 on the board easily. As a Grove breakout board,the 12 plug-and-play Grove socket will save a lot of work for quicker prototyping, especially for novices through simplified wiring procedure.
The grove breakout for LinkIt 7697 is the best expansion board to help a beginner get quick start with LinkIt 7697. We also created a Grove Start kit based on this breakout board.
Features
Up to 12 Grove Sockets
Easy Mounting with 2x14 Pin Female Header
Debug Pin Header Supported
Interface Details
Debug Interfaces
SWD x1
Digital Interface
D2,D3,D4,D10,D11,D12
Analog Interface
A0,A1,A2
I2C Interface
I2C x3
Grove Breakout for LinkIt 7697 is a Grove port integrated and a feature expansion board for LinkIt 7697 development board. The onboard 2x14 pin female header allows you to plug LinkIt 7697 on the board easily. As a Grove breakout board,the 12 plug-and-play Grove socket will save a lot of work for quicker prototyping, especially for novices through simplified wiring procedure.
The grove breakout for LinkIt 7697 is the best expansion board to help a beginner get quick start with LinkIt 7697. We also created a Grove Start kit based on this breakout board.
Features
Up to 12 Grove Sockets
Easy Mounting with 2x14 Pin Female Header
Debug Pin Header Supported
Interface Details
Debug Interfaces
SWD x1
Digital Interface
D2,D3,D4,D10,D11,D12
Analog Interface
A0,A1,A2
I2C Interface
I2C x3
