Adafruit Panel Mount Extension USB Cable - Micro B Male to Micro B Female

Key Features:

• Embedded 4-40 screws (no threading required)
• Mounting screws included
• Wired straight through
• USB 2.0 compatible

Check out this handy MicroUSB extension cable, which will make it easy for you to enclose a device that has a B type (micro USB host) port. Great if you need to extend the USB port for your Raspberry Pi, Arduino, Feather or really anything development board.

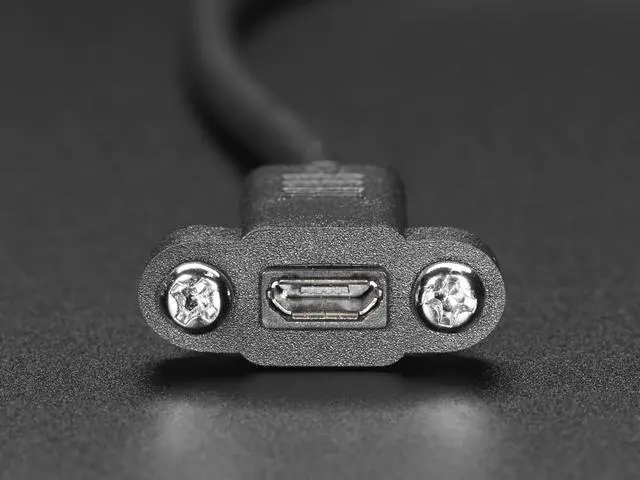

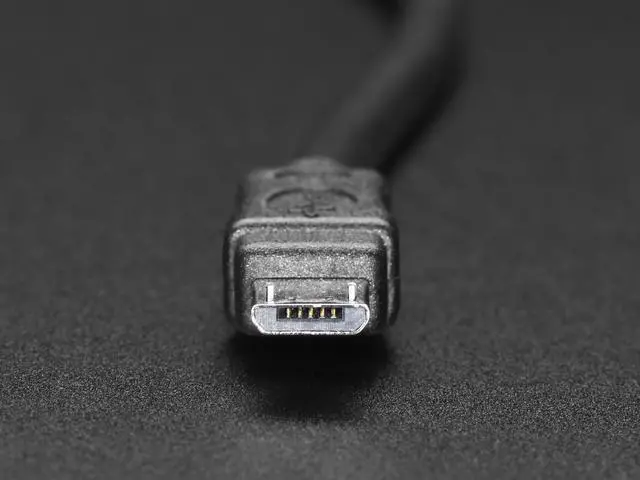

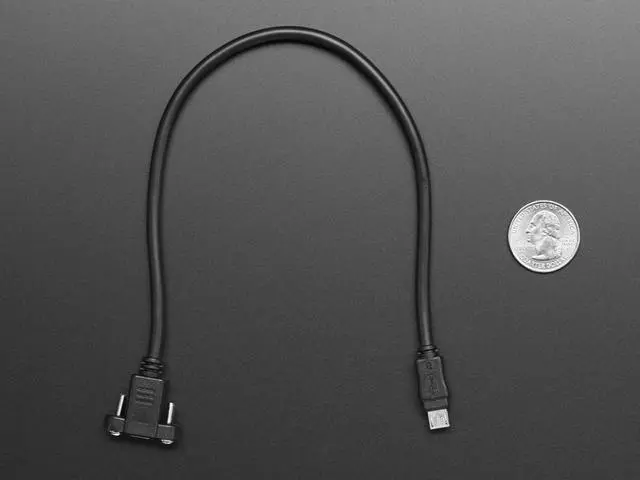

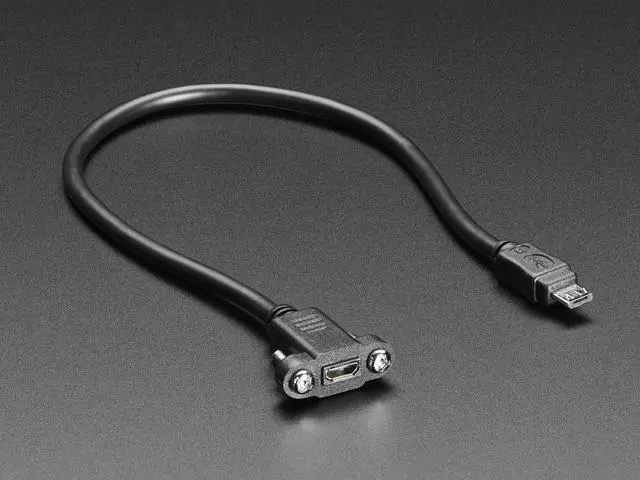

This Micro-B male/female extension cable features a male USB Micro-B plug on one end, and a bulkhead mountable Micro-B female receptacle on the other. The jack half has two mounting ' ears' with 4-40 screws installed, 18mm apart. The ears are flexible so the holes don' t have to be drilled very precisely. The screws can be put on from the back for ' reverse' mounting if the box thickness is a problem. The entire unit is about 12" long from tip to tip (with approx 10" cabling between connectors).

Rated for high-speed USB 2.0 use.

Item Specifics
Size: 315.0 mm x 25.3 mm x 9.9 mm / 12.4" x 1.0" x 0.4"
Weight: 16.2 g / 0.6 oz
