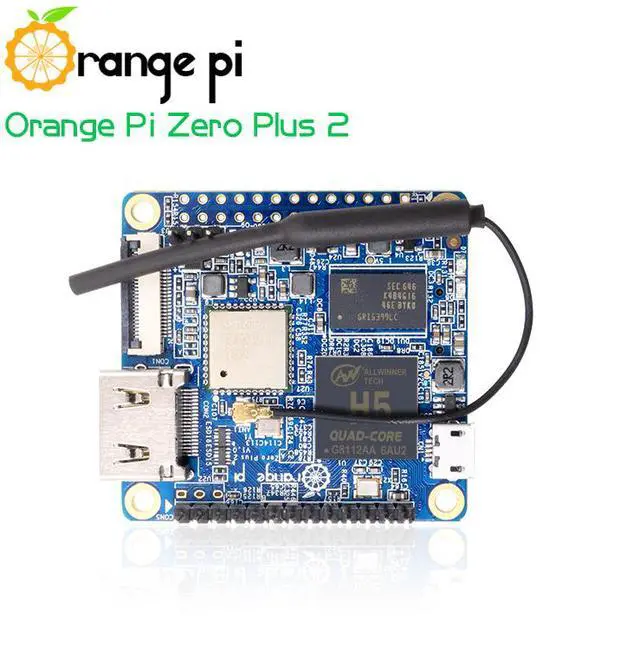

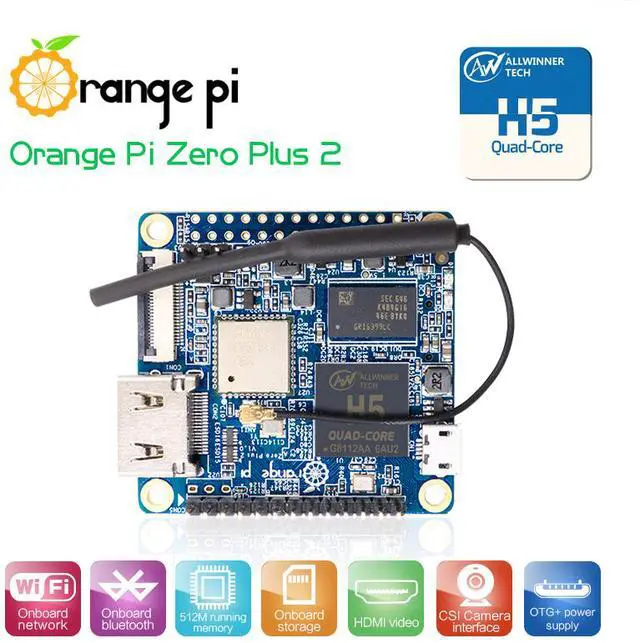

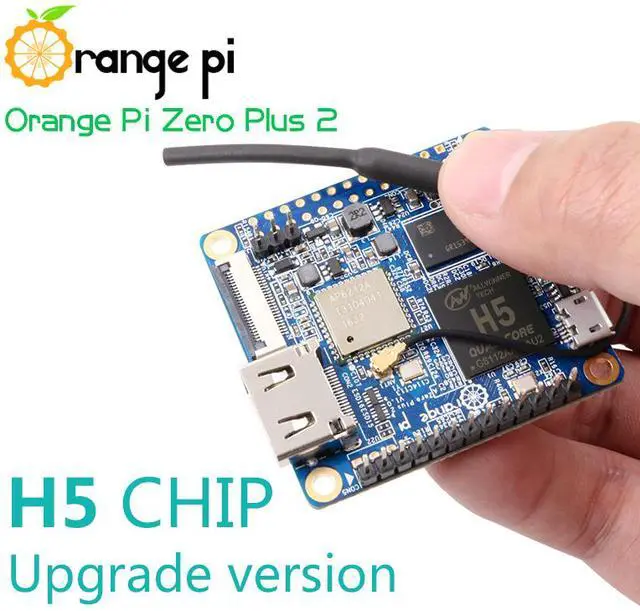

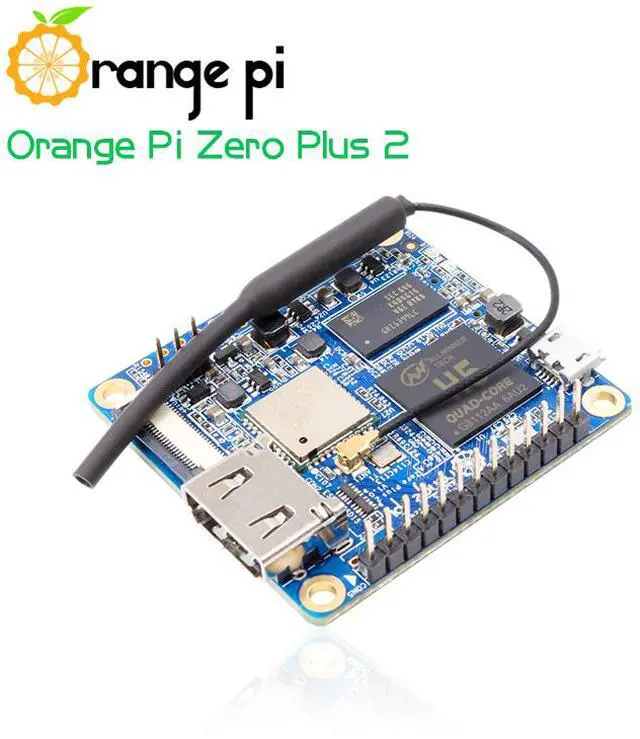

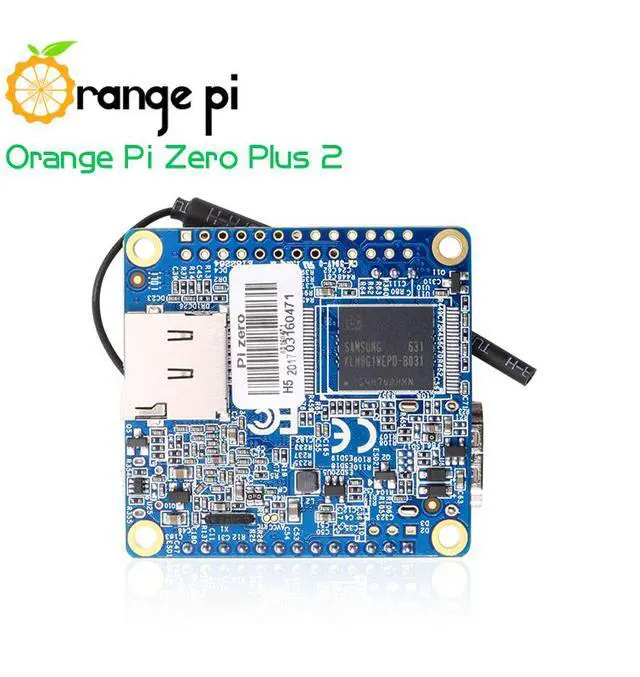

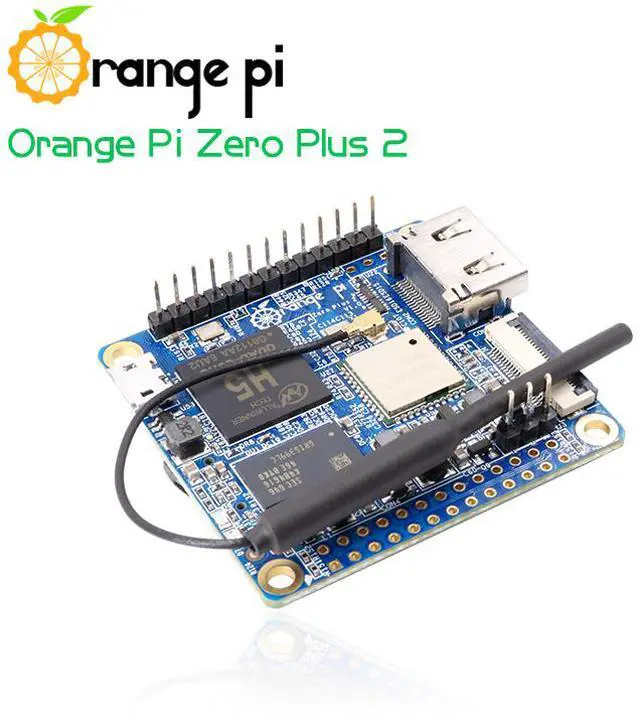

Orange Pi Zero Plus2 H5 Quad-core Wifi Bluetooth mini PC Beyond Raspberry Pi 2 Wholesale is available

In stock.
Ships from China.
Most customers receive within 5-32 days.
  • Engineering Development Tools
Hardware specification CPU H3 Quad-core Cortex-A7 H. 265/HEVC 4K GPU ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 Memory (SDRAM) 2GB DDR3 (shared with GPU) Onboard Storage TF card (Max. 32GB) / MMC card slot, up to 2T on 2.5 SATA disk 16GB EMMC Flash Onboard Network 10/100/1000M Ethernet RJ45 Onboard WIFI Realtek RTL8189ETV, IEEE 802.11 b/g/n Video Input A CSI input connector
Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps Audio Input MIC Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS Audio Output 3.5 mm Jack and HDMI Power Source DC input can supply power, but USB OTG input don’t supply power USB 2.0 Ports Four USB 2.0 HOST, one USB 2.0 OTG Buttons Power Button (SW4), Recovery Button (SW3), Uboot Button (SW2) Low-level peripherals 40 Pins Header, compatible with Raspberry Pi B+ GPIO (1x3) pin UART, ground. LED Power led & Status led Other IR input Supported OS Android, Ubuntu, Debian, Raspbian Image Interface definition Product size 108mm × 67mm Weight 83g
