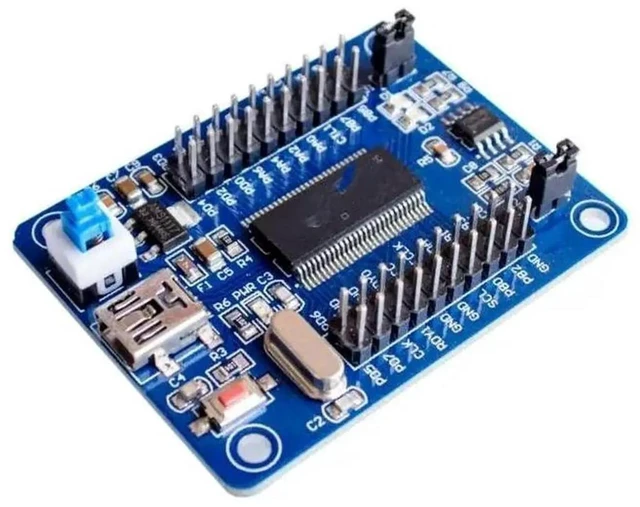

CY7C68013A EZ-USB FX2LP USB Logic Analyzer Core Board, 8-Channel 24MHz Mini DAQ Module (Compatible with Open-Source Sigrok PulseView)
- 8-CHANNEL SIGNAL CAPTURE Monitor up to 8 digital channels for electronics debugging and protocol analysis with this compact USB logic analyzer core board.
- UP TO 24MHz SAMPLING Capture digital signal activity at sampling rates up to 24MHz, providing a practical tool for development, testing, and troubleshooting.
- CY7C68013A EZ-USB FX2LP CORE Built around the CY7C68013A controller to provide USB connectivity for logic analysis, data acquisition, and embedded development projects.
- SIGROK PULSEVIEW COMPATIBLE Designed for use with open-source Sigrok PulseView software, enabling waveform visualization and supported protocol-decoder workflows.
- SOURCE CODE INCLUDED Supplied with source code for development and customization; verify software, driver, pinout, and voltage compatibility with your system before use.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
CY7C68013A EZ-USB FX2LP USB Logic Analyzer Core Board
CY7C68013A EZ-USB FX2LP USB Logic Analyzer Core Board is a compact 8-channel mini DAQ module for digital signal capture, electronics debugging, and embedded development. Built around the CY7C68013A controller, it combines USB connectivity with sampling rates up to 24MHz and compatibility with the open-source Sigrok PulseView software environment.
Use the module to observe digital waveforms, investigate timing behavior, and support protocol-analysis workflows available through compatible Sigrok decoders. Its 8-channel design allows multiple digital lines to be monitored during circuit development, board testing, and troubleshooting. Source code is included for users who want a foundation for customization or further development.
Key Specifications
- Controller: CY7C68013A EZ-USB FX2LP
- Product type: USB logic analyzer core board / mini DAQ module
- Digital channels: 8
- Maximum stated sampling rate: 24MHz
- Software compatibility: Open-source Sigrok PulseView
- Included development resource: Source code
Compatibility notice: Confirm the required operating system driver, PulseView/Sigrok device configuration, signal-voltage limits, connector pinout, and package contents before connecting the board to a target circuit. This module is intended for digital signal acquisition; unsupported analog-measurement capability is not claimed.
Frequently Asked Questions
Q: Does this CY7C68013A logic analyzer work with Sigrok PulseView?
A: The module is designed for compatibility with the open-source Sigrok PulseView environment. Confirm the appropriate driver and device configuration for your operating system.
Q: How many signals can this USB logic analyzer capture?
A: It provides 8 digital channels, allowing up to eight signal lines to be monitored within the module's supported operating limits.
Q: What is the maximum sampling rate?
A: The stated maximum sampling rate is up to 24MHz. Suitable capture settings depend on the signals being measured and the selected software configuration.
Q: Can this module be used for protocol analysis?
A: It can capture digital signals for analysis with compatible Sigrok PulseView protocol decoders. Decoder availability and results depend on the protocol and capture settings.
Q: Is source code included?
A: Yes. Source code is included as a development resource for customization and project integration.
