AJMRTC LOTO OpenSource DIY Expansion Board PCB, Maximize Oscilloscope DIY Potential, DE15 Interface Expansion Module for Circuit Test Logic Analyzer Hardware Development Repair Spare Part
- - Opensource DIY expansion PCB board made for LOTO oscilloscope, connects through DE15 interface to release extra hardware resources and expand oscilloscope DIY capability
- - Offers 5V,5V, 3.3V power outputs, extra IO channels, PWM output, adjustable reference voltage and multichannel logic analysis inputs for circuit prototyping

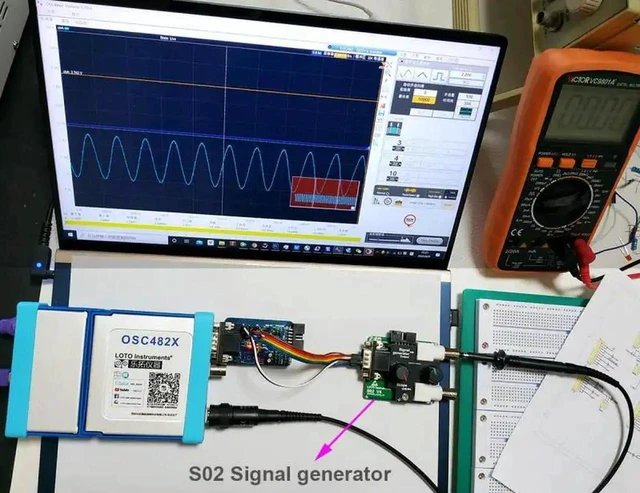

- - Works with external isolation differential modules, current sampling units and signal generator peripherals to extend measurement functions without replacing main oscilloscope
- - Clearly labeled pin headers and opensource layout support secondary modification, fit for logic test, serial protocol decoding and embedded hardware debugging
- - Suited for maker projects, electronic teaching and lab custom measurement system building; verify DE15 interface availability on your oscilloscope before purchase
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

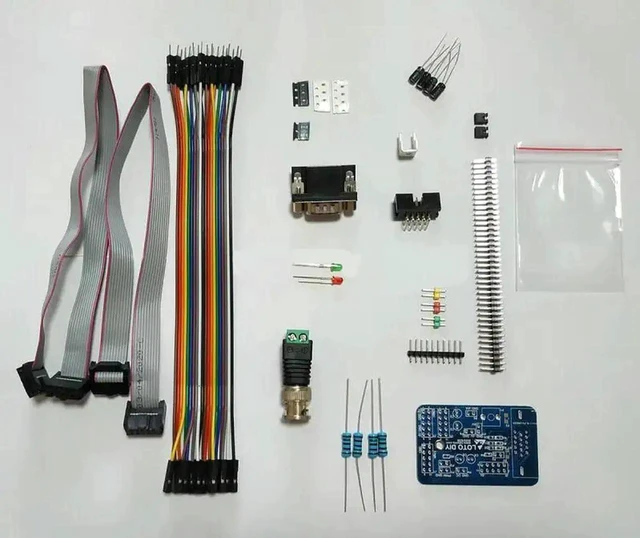

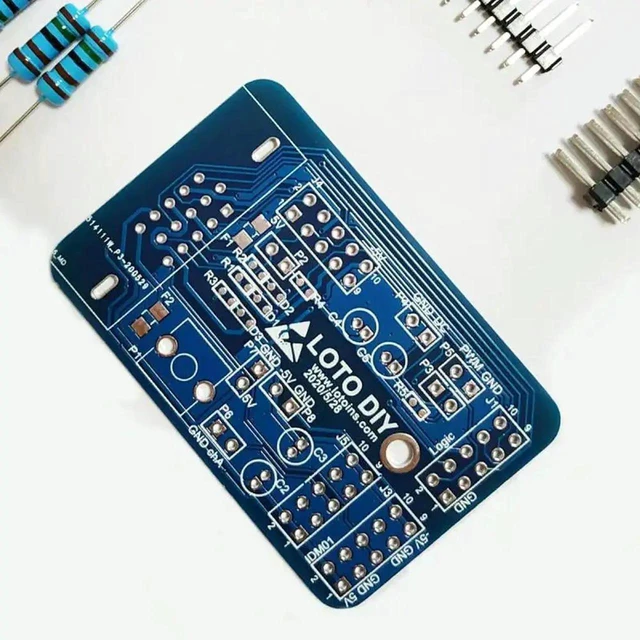

AJMRTC LOTO opensource DIY expansion board PCB helps you fully tap the DIY potential of your oscilloscope. This dedicated expansion board makes full use of LOTO oscilloscope DE15 interface hardware resources. It supplies 5V,5V and 3.3V power outputs for external circuits, together with multichannel IO ports, PWM signal output, adjustable DC reference source and multiple logicanalysis input channels. Users can also connect external functional modules such as isolated differential units and currentsampling accessories to realize more complex measurement scenarios. Opensource PCB design supports secondary modification and personalized function redevelopment. Widely applied in digital logic circuit testing, serial bus protocol decoding, electronic teaching experiments and maker embedded prototype verification. Please confirm your oscilloscope host supports DE15 expansion interface before purchase. Basic soldering and embedded development knowledge are recommended for assembly and usage. Oscilloscope main unit and external functional modules are not included.
- Brand: AJMRTC
- Product Type: LOTO OpenSource DIY Expansion Board PCB
- Connection Interface: Dedicated DE15 expansion port
- Output Resources: 5V, 5V, 3.3V power supply, multiway IO, PWM output, adjustable DC reference, logicanalysis input channels
- Supported Host: LOTO oscilloscope series with DE15 interface
- Feature: Opensource design, secondary modification supported, multifunction hardware expansion
- Application: Circuit DIY prototyping, logic test, protocol decoding, electronic teaching experiment
- Condition: New aftermarket expansion PCB board
- Important Note: Oscilloscope main unit and external modules NOT included
- Important Note: Confirm DE15 interface availability on your oscilloscope before ordering
- Important Note: Basic soldering and electronic development skills suggested
