AJMRTC Universal ePaper Raw Panel Driver HAT, SPI eInk Display Driver Expansion Board for Raspberry Pi Jetson Nano Arduino STM32, Supports Most 3Wire & 4Wire SPI ePaper Raw Panels for Maker Embed
- - Universal SPI epaper driver HAT supports most 3wire and 4wire SPI eink raw panels, ideal for maker prototyping and embedded DIY projects
- - Standard 40pin GPIO header for direct stacking on Raspberry Pi; also compatible with Jetson Nano, Arduino, STM32 via SPI wiring connection
- - Onboard level shifter works with 3.3V and 5V main controllers, prevents signal voltage mismatch damage to your hardware modules
- - Opensource sample codes and technical documents are provided to accelerate secondary development and function debugging work
- - Compact board layout with mounting holes for easy fixation; epaper raw panel and host controller board are not included in package
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

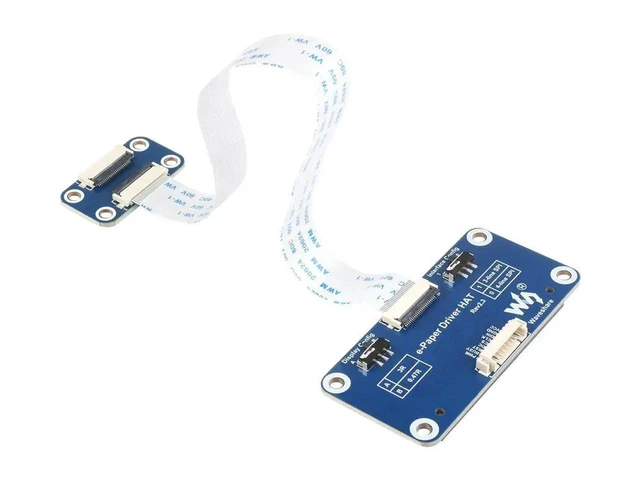

AJMRTC Universal ePaper Raw Panel Driver HAT is a versatile expansion board built to drive SPIinterface eink raw panels. It delivers stable driving performance for most mainstream 3wire and 4wire SPI epaper panels, widely used for electronic label making, embedded display solutions, laboratory prototyping and makeroriented hardware development. Featuring standard Raspberry Pi 40pin GPIO header, this HAT can be stacked directly onto Raspberry Pi series boards. It can also connect with Jetson Nano, Arduino, STM32 and other microcontroller platforms through SPI signal lines. The integrated levelshifting circuit enables safe signal conversion between 3.3V and 5V logic systems, protecting your hardware from voltage incompatibility risks. Complete opensource resources help you skip repetitive bottomlevel programming and speed up project iteration. Please note that epaper raw panel and main control board are sold separately. Verify your epaper panel SPI specification before purchase to ensure proper compatibility.
- Brand: AJMRTC
- Product Type: ePaper Raw Panel Driver HAT
- Supported Interface: 3Wire SPI, 4Wire SPI
- Compatible Host Boards: Raspberry Pi Series, Jetson Nano, Arduino, STM32
- Logic Voltage: 3.3V / 5V Adaptive
- Board Dimension: 65.0 × 30.2mm
- Mounting Hole Size: 3.0mm
- Development Resources: Opensource sample codes & documentation
- Package Content: 1 × ePaper Driver HAT (epaper panel & mainboard not included)
