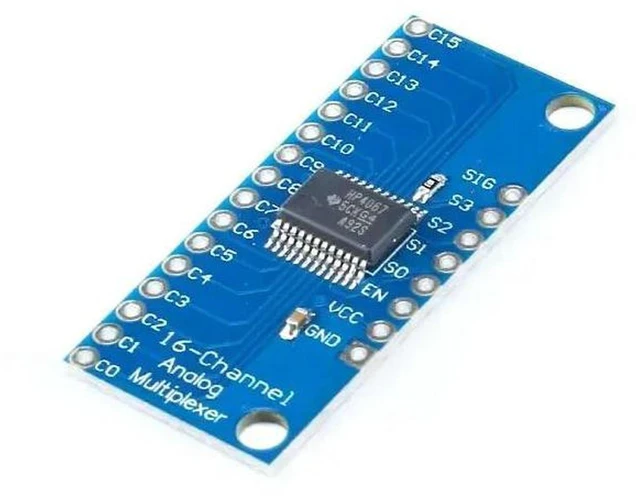

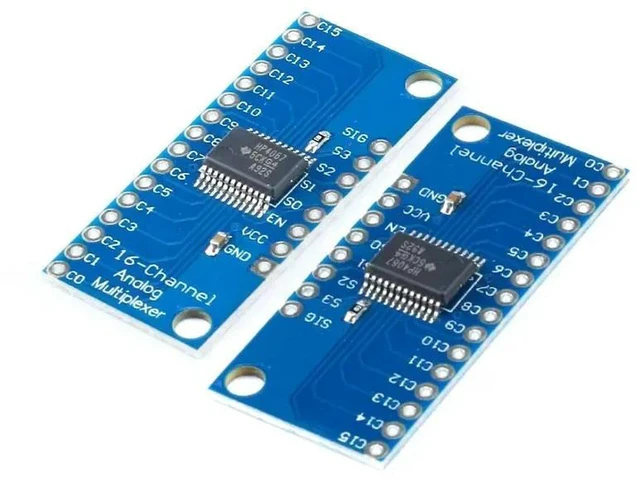

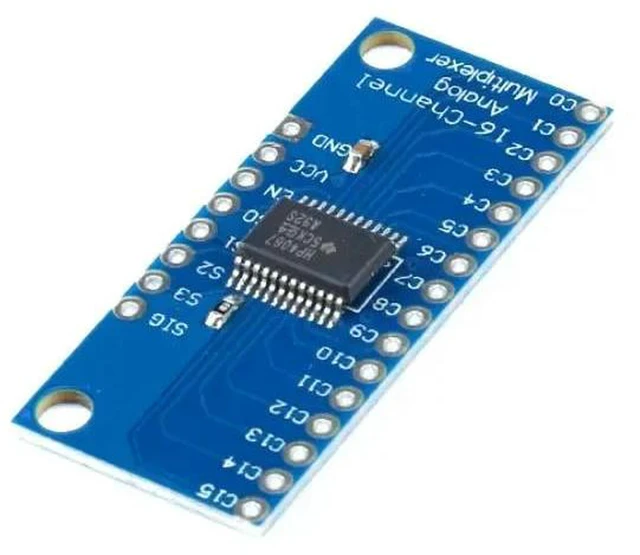

AJMRTC 1Pcs CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module, High Speed CMOS Signal Switch Mux Module for Arduino STM32 Electronic Circuit DIY Projects
- - Built with CD74HC4067 high-speed CMOS chip, 16-channel analog and digital signal multiplexer for signal switching
- - Supports both analog voltage and digital logic signal routing, one common signal output from 16 selectable input channels
- - Wide operating voltage from 2V to 6V, compatible with 3.3V and 5V microcontroller logic levels
- - Compact breakout board with pin headers, easy wiring to expand analog input ports for microcontrollers
- - Ideal for multi-channel sensor sampling, circuit signal switching, electronic experiments and embedded development
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC CD74HC4067 multiplexer breakout board adopts CD74HC4067 high-speed CMOS 16-channel analog/digital multiplexer chip. This module can switch up to 16 independent analog or digital input signals to a single output channel, greatly expanding the analog input resources of microcontrollers. It works at 2V~6V, supporting both 3.3V and 5V logic systems. The module features simple channel selection control pins, allowing users to switch channels via IO ports of Arduino, STM32 and other MCUs. It is widely used for multi-sensor data collection, circuit signal selection, electronic teaching experiments and various DIY embedded circuit projects.
- Brand: AJMRTC
- Quantity: 1Pcs
- Chip Model: CD74HC4067
- Type: 16-Channel Analog & Digital Multiplexer (Mux)
- Operating Voltage: DC 2V ~ 6V
- Signal Type: Support Analog Voltage & Digital Logic Signal
- Interface: Pin Header
- Application: Arduino, STM32, Multi-channel Sensor Acquisition, Electronic Circuit DIY
