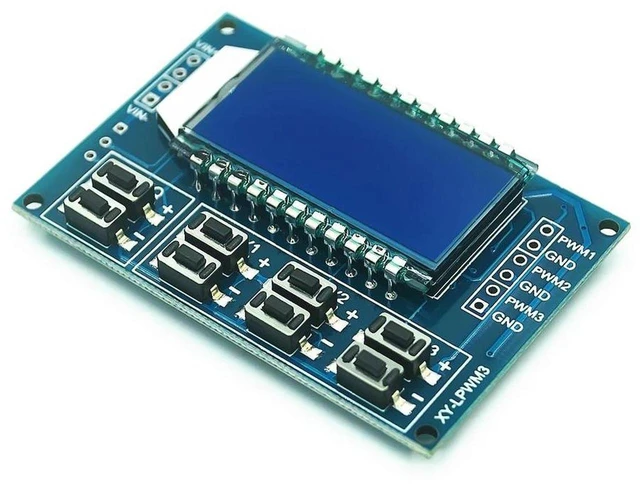

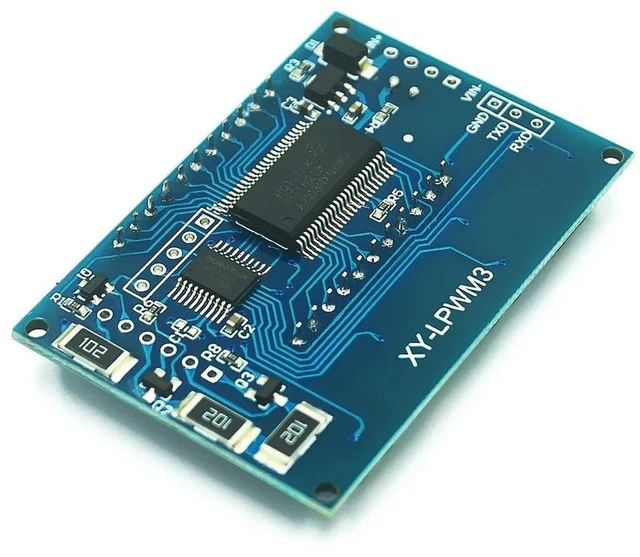

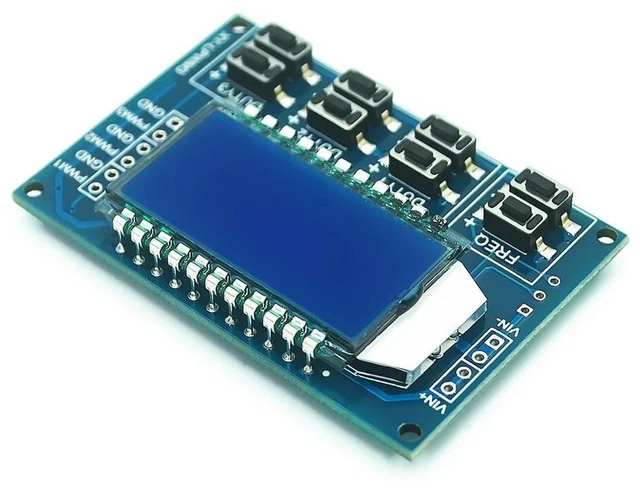

AJMRTC 3 Channel PWM Signal Generator Module, Adjustable Pulse Frequency & Duty Cycle, Square & Rectangular Wave Output, Multi-Channel Pulse Generator for Motor Drive, Circuit Debugging & Electronic
- - 3 independent PWM output channels, separately adjustable frequency and duty cycle for multi-signal control
- - Generates stable square wave and rectangular wave signals to meet various circuit test demands
- - Wide adjustable frequency range, each channel supports independent parameter setting without mutual interference
- - Compact PCB design with clear pin definition, simple wiring for quick connection to power and load
- - Versatile signal source for motor speed regulation, LED dimming, circuit testing and maker projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC 3 Channel PWM Pulse Signal Generator Module can output 3 groups of independent square wave and rectangular wave signals. Both frequency and duty cycle of each channel can be adjusted separately, so you can set different pulse parameters at the same time.
This multi-channel PWM module serves as a convenient signal source widely used for DC motor speed control, LED brightness dimming, solenoid valve driving, circuit debugging and electronic teaching experiments. The PCB is printed with clear pin labels for easy wiring. It is an ideal test tool for electronic enthusiasts, laboratory tests and prototype development. Please match the working voltage according to your load requirements.
- Brand: AJMRTC
- Product: 3 Channel PWM Signal Generator Module
- Output Waveform: Square Wave, Rectangular Wave
- Channel Quantity: 3 Independent Channels
- Adjustable Parameters: Frequency, Duty Cycle
- Application: Motor Speed Control, LED Dimming, Circuit Debugging, Electronic Experiment
- Mounting: PCB Module with Pin Header
- Working Voltage: DC 5V~12V
