1.32inch OLED Display Module, 128x96 Pixels 16 Gray Scale OLED Display,Compatible with Raspberry Pi/Arduino/STM32,SPI/I2C Interface,SSD1327 Driver
Limited time offer, ends 09/13 By SlotNeat
- 128×96 Resolution 16 Gray Scale 1.32inch OLED Display Module; Ultra-narrow bezel, conpact size, with onboard voltage translator; Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate; SSD1327 Driver; Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

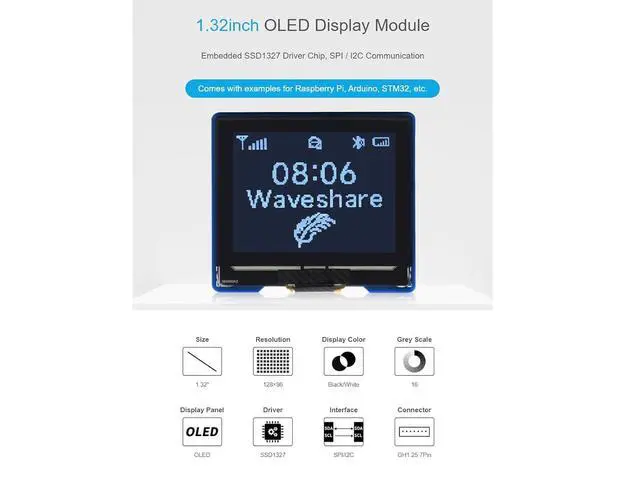

1.32 inch OLED Display Module Embedded SSD1327 Driver Chip, SPI / I2C Communication Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Parameters Operating voltage: 3.3V /5V (IO high-level voltage and supply voltage need to be the same)
Communication bus: 4-wire SPI/I2C
Screen type: OLED
Controller: SSD1327
Resolution: 128 × 96

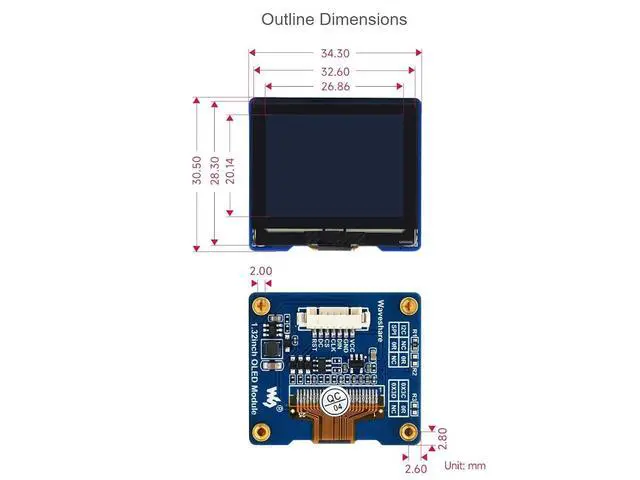

Pixels Outline dimensions: 32.6 mm × 28.3 mm
Display dimensions: 26.86 mm × 20.14 mm
Display color: White
Grey scale: 16
Operating temperature: -20°C ~ 70°C
Storage temperature: -30°C ~ 80°C

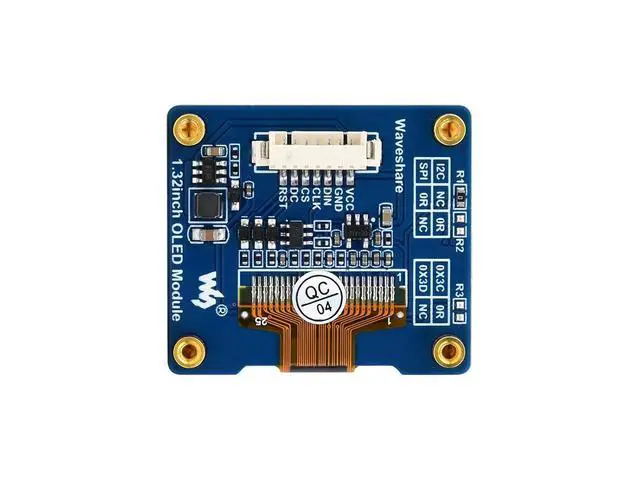

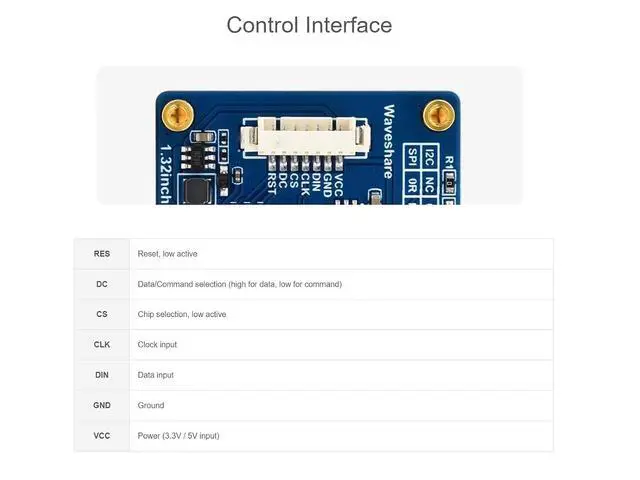

Viewing angle: > 160° Control Interface RES---Reset, low active DC---Data/Command selection (high for data, low for command) CS---Chip selection, low active CLK---Clock input DIN---Data input GND---Ground VCC---Power ( 3.3V / 5V input)

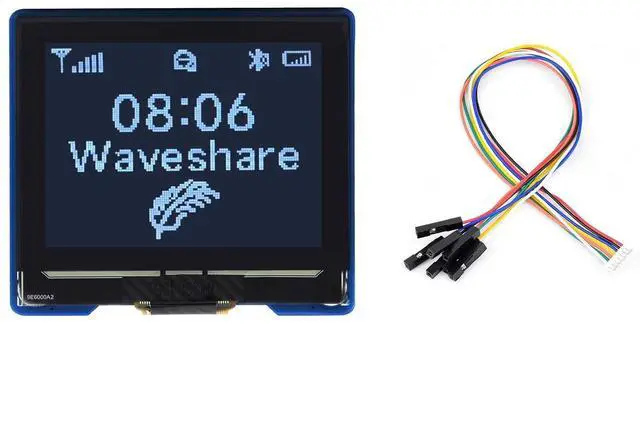

Development Resources https: //www.. com/wiki/ 1.32 inch_OLED_Module? Amazon Package Content 1.32 inch OLED Module x1 GH 1.25 7PIN cable x1 Note Development Resources is provided, please contact us if you have any problem.
Parameters Operating voltage: 3.3V /5V (IO high-level voltage and supply voltage need to be the same)
Communication bus: 4-wire SPI/I2C
Screen type: OLED
Controller: SSD1327
Resolution: 128 × 96
Pixels Outline dimensions: 32.6 mm × 28.3 mm
Display dimensions: 26.86 mm × 20.14 mm
Display color: White
Grey scale: 16
Operating temperature: -20°C ~ 70°C
Storage temperature: -30°C ~ 80°C
Viewing angle: > 160° Control Interface RES---Reset, low active DC---Data/Command selection (high for data, low for command) CS---Chip selection, low active CLK---Clock input DIN---Data input GND---Ground VCC---Power ( 3.3V / 5V input)
Development Resources https: //www.. com/wiki/ 1.32 inch_OLED_Module? Amazon Package Content 1.32 inch OLED Module x1 GH 1.25 7PIN cable x1 Note Development Resources is provided, please contact us if you have any problem.
