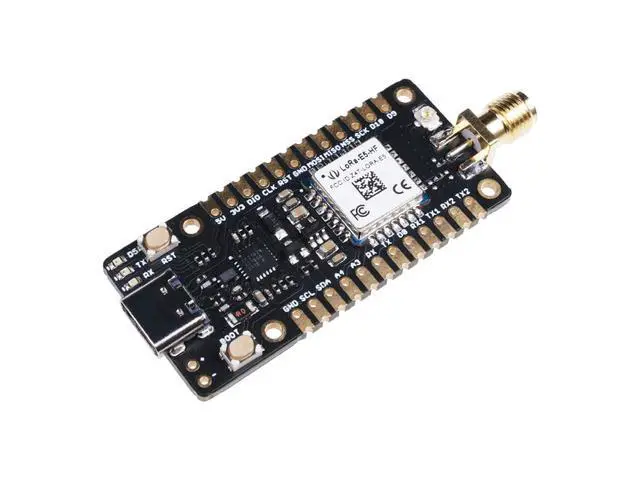

1pc LoRa-E5 mini (STM32WLE5JC) Dev Board, LoRaWAN Protocol and Worldwide Frequency Supported

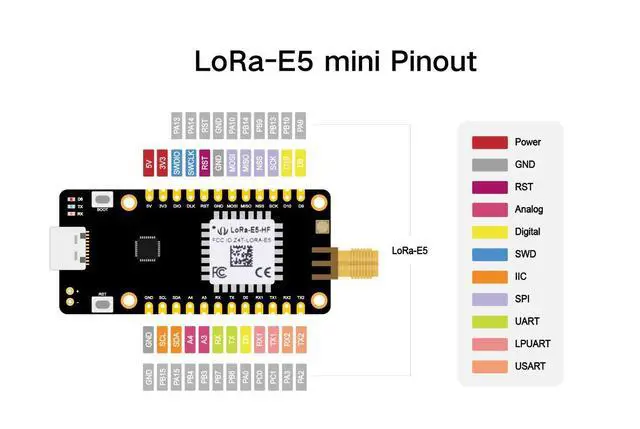

- Full GPIOs led out from the Lora-E5 STM32WLE5JC Global LoRaWAN and LoRa frequency plan supported Long-distance transmission range to 10km (ideal value in open area)

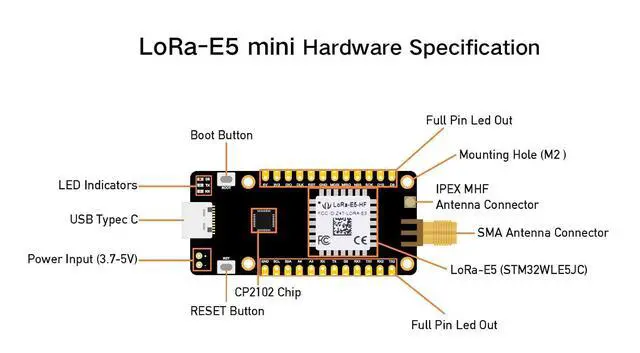

- Mini and compact size, suitable for rapid testing and building small size prototype Convenient RESET and BOOT buttons on board

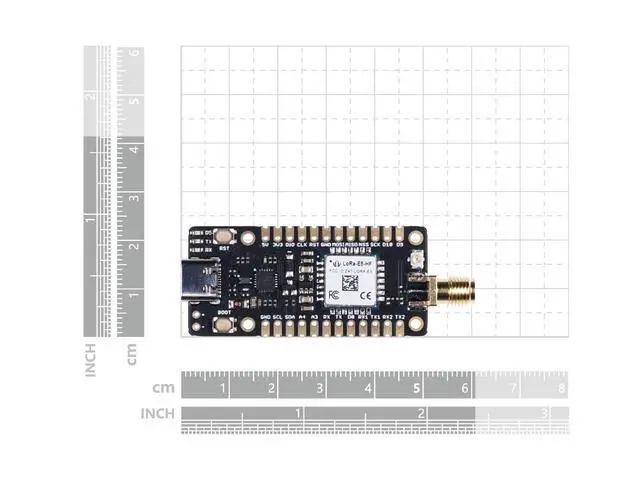

- ParametersSpecifications size50*23mm voltage - supply3.7V - 5V power - outputup to +20.8 dBm at 3.3V working frequency868/915MHz protocolLoRaWAN sensitivity-116.5 dBm ~ -136 dBm
- interfacesUSB Type C / 2P-2.54mm Hole / 1*12P-2.54mm Header*2 / SMA-K / IPEX modulationLoRa, (G)FSK, (G)MSK, BPSK working temperature-40 ~ 85 currentLoRa-E5 module sleep current as low as 2.1uA (WOR mode)

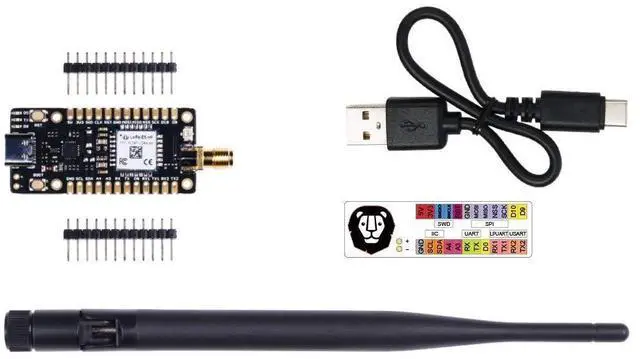

- Part List: LoRa-E5 mini *1 Antenna(EU868/US915) *1 USB TypeC (20cm) *1 Sticker *1 1X12pin male pin headers *2
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Full GPIOs led out from the Lora-E5 STM32WLE5JC Global LoRaWAN and LoRa frequency plan supported Long-distance transmission range to 10km (ideal value in open area). Mini and compact size, suitable for rapid testing and building small size prototype Convenient RESET and BOOT buttons on board. ParametersSpecifications size50*23mm voltage - supply 3.7V - 5V power - outputup to + 20.8 dBm at 3.3V working frequency868/915MHz protocolLoRaWAN sensitivity- 116.5 dBm ~ -136 dBm. interfacesUSB Type C / 2P- 2.54 mm Hole / 1*12P- 2.54 mm Header*2 / SMA-K / IPEX modulationLoRa, (G) FSK, (G) MSK, BPSK working temperature-40 ~ 85 currentLoRa-E5 module sleep current as low as 2.1 uA (WOR mode).
Part List: LoRa-E5 mini *1 Antenna(EU868/US915) *1 USB TypeC (20cm) *1 Sticker *1 1X12pin male pin headers *2
Part List: LoRa-E5 mini *1 Antenna(EU868/US915) *1 USB TypeC (20cm) *1 Sticker *1 1X12pin male pin headers *2
