ESP32-S3 with 1.28inch Round LCD 240×240 Resolution ESP32 S3 Development Board w
- ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4 GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V li-thium ba-ttery recharge/discharge header and GPIO headers
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ESP32-S3-LCD- 1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28 inch LCD display, ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4 GHz W-i-F-i ( 802.11 b/g/n) and Blue-too-th 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

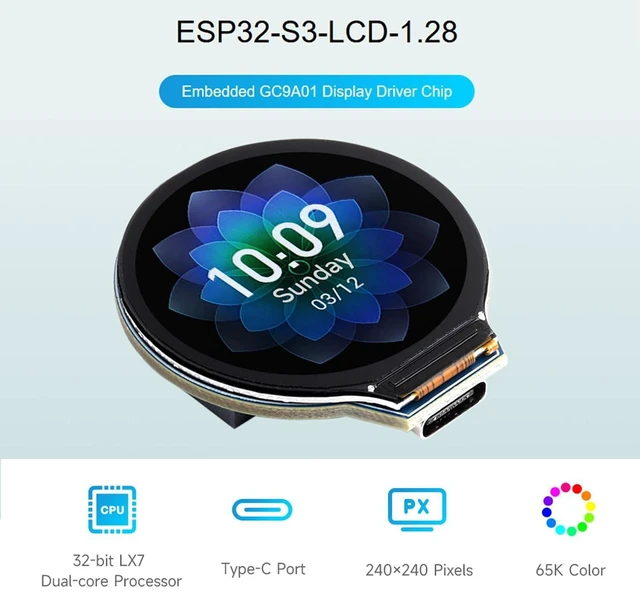

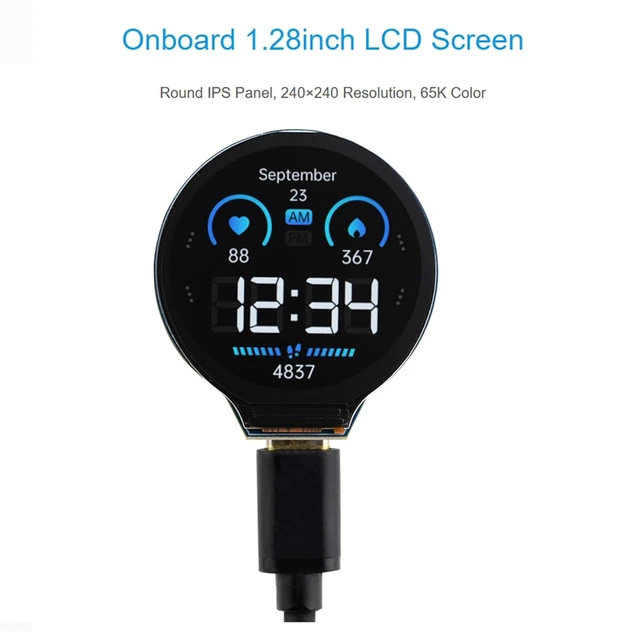

Onboard 1.28 inch LCD display, round IPS panel, 240×240 resolution, 65K color
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V li-thium ba-ttery recharge/discharge header and GPIO headers
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4 GHz W-i-F-i ( 802.11 b/g/n) and Blue-too-th 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
Onboard 1.28 inch LCD display, round IPS panel, 240×240 resolution, 65K color
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V li-thium ba-ttery recharge/discharge header and GPIO headers
