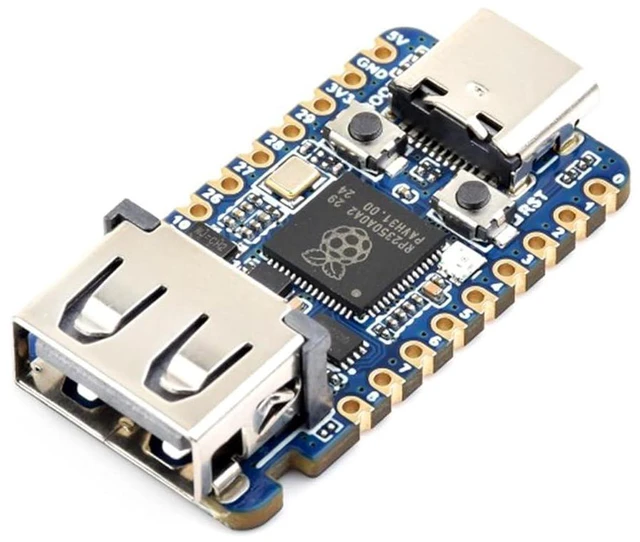

RP2350A USB Mini Development Board, USB Type-A and USB Type-C Port
- RP2350-USB-A is a mini RP2350 development board with a USB expansion port that is compatible with USB 2.0/1.1 transmission. Under the extremely small board size, 15 multifunctional GPIO pins are led out, and the PCB edge adopts half hole technology, which can be easily and quickly integrated into the project
- Based on Pi RP2350A microcontroller chip, adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 2MB of onboard Flash memory. Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support. Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission

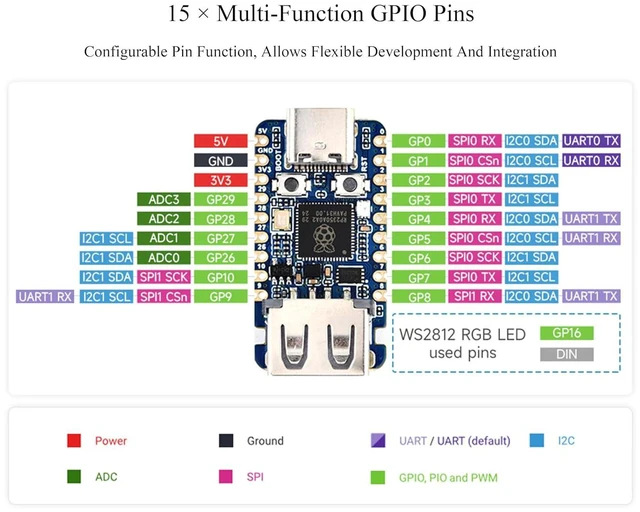

- Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Adapting 15 x multi-function GPIO pins. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 14 x controllable PWM channels
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-USB-A is a mini RP2350 development board with a USB expansion port that is compatible with USB 2.0 / 1.1 transmission. Under the extremely small board size, 15 multifunctional GPIO pins are led out, and the PCB edge adopts half hole technology, which can be easily and quickly integrated into the project
Based on Pi RP2350A microcontroller chip, adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 2MB of onboard Flash memory. Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support. Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0 / 1.1 transmission
Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Adapting 15 x multi-function GPIO pins. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 14 x controllable PWM channels
Based on Pi RP2350A microcontroller chip, adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 2MB of onboard Flash memory. Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support. Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0 / 1.1 transmission
Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Adapting 15 x multi-function GPIO pins. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 14 x controllable PWM channels
