ESP32-S3 Development Board with 1.69inch IPS Display 240×280 Pixels 262K LCD,240
- ESP32-S3-LCD-1.69 is a high-performance MCU board designed by Waveshare. ESP32-S3 Development Board with 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280 Pixels, Supports W-iF-i/Blue-too-th, Compact size, Accelerometer And Gyroscope Sensor
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too th 5 (LE), with onboard antenna
- Onboard 1.69inch LCD Screen, IPS Panel, 240×280 Resolution, 65K Color, Suitable for various application scenarios. Type-C connector, keeps it up to date, easier to use
- Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

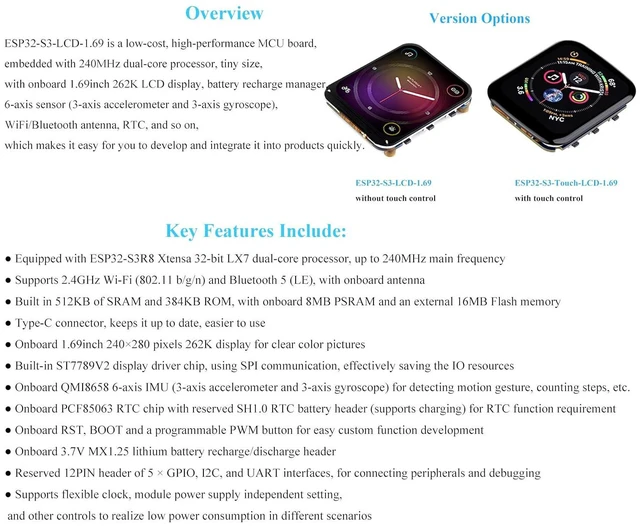

ESP32-S3-LCD- 1.69 is a high-performance MCU board designed by Waveshare. ESP32-S3 Development Board with 1.69 inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280 Pixels, Supports W-iF-i/Blue-too-th, Compact size, Accelerometer And Gyroscope Sensor
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Supports 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-too th 5 (LE), with onboard antenna

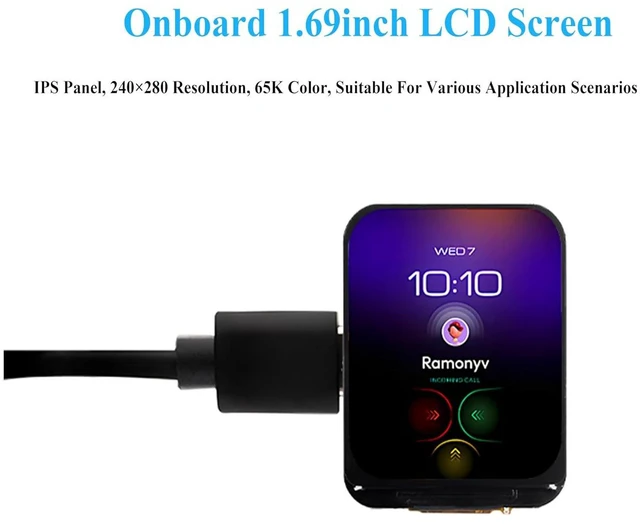

Onboard 1.69 inch LCD Screen, IPS Panel, 240×280 Resolution, 65K Color, Suitable for various application scenarios. Type-C connector, keeps it up to date, easier to use

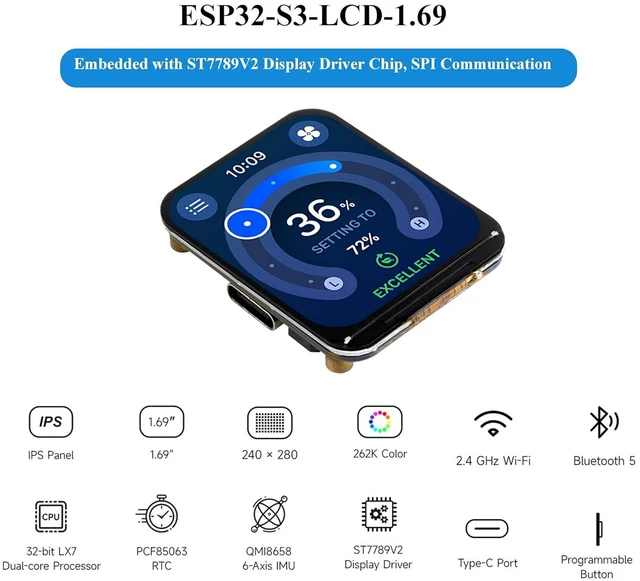

Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Supports 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-too th 5 (LE), with onboard antenna
Onboard 1.69 inch LCD Screen, IPS Panel, 240×280 Resolution, 65K Color, Suitable for various application scenarios. Type-C connector, keeps it up to date, easier to use
Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc
