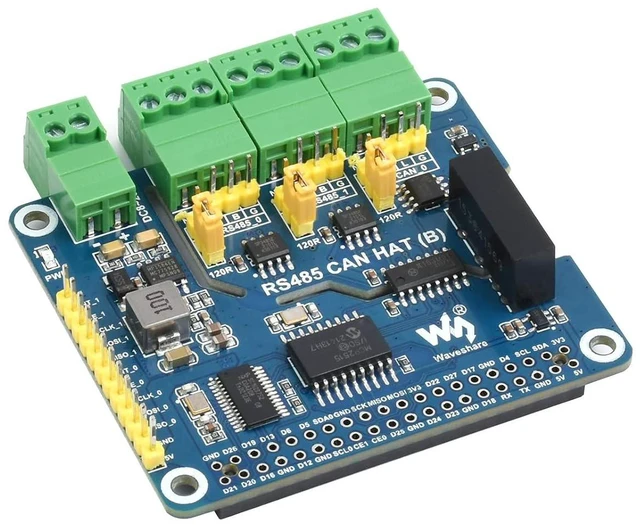

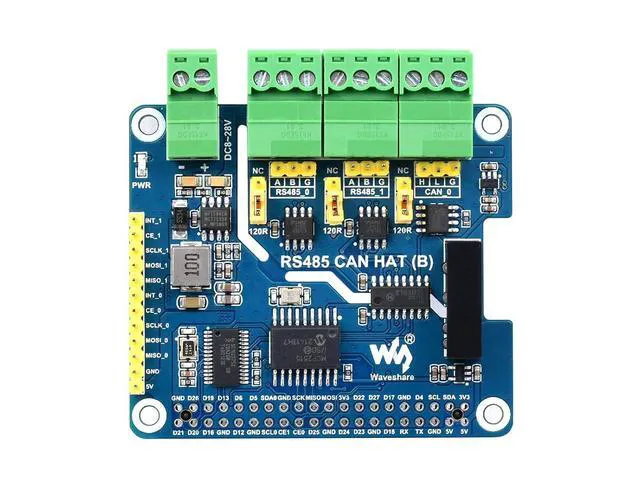

for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero 2W/ 2WH, Isolated RS485 CAN HAT,
- The RS485 CAN HAT (B) is a HAT with RS485 and CAN communication functions for Raspberry Pi. Enable Isolated and stable RS485 and CAN capability for Raspberry Pi. With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

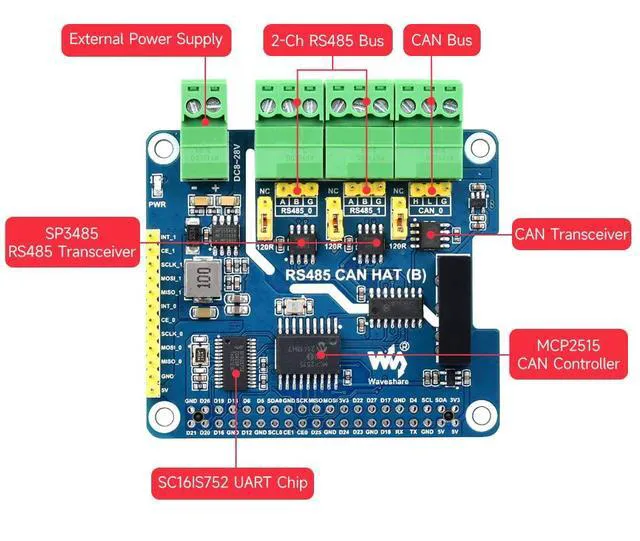

- Expand 1-Ch CAN and 2-Ch RS485---- 1-Ch CAN: adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
- RS485: adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
- Industrial Grade Isolation Protection: Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
- Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The RS485 CAN HAT (B) is a HAT with RS485 and CAN communication functions for Raspberry Pi. Enable Isolated and stable RS485 and CAN capability for Raspberry Pi. With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Expand 1-Ch CAN and 2-Ch RS485---- 1-Ch CAN: adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
RS485: adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
Industrial Grade Isolation Protection: Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
Expand 1-Ch CAN and 2-Ch RS485---- 1-Ch CAN: adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
RS485: adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
Industrial Grade Isolation Protection: Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
