for Compute Module 4, CM4 Mini Base Board Raspberry Pi 40PIN GPIO Header and MIP

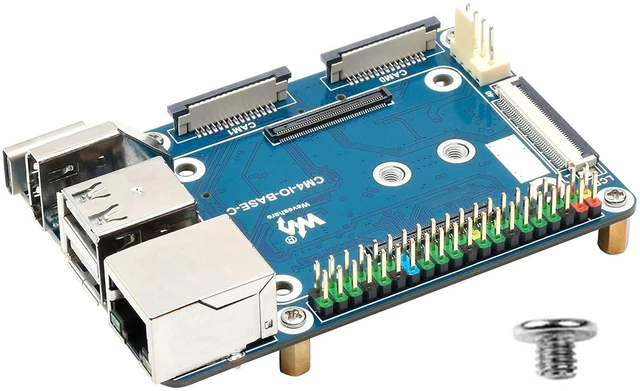

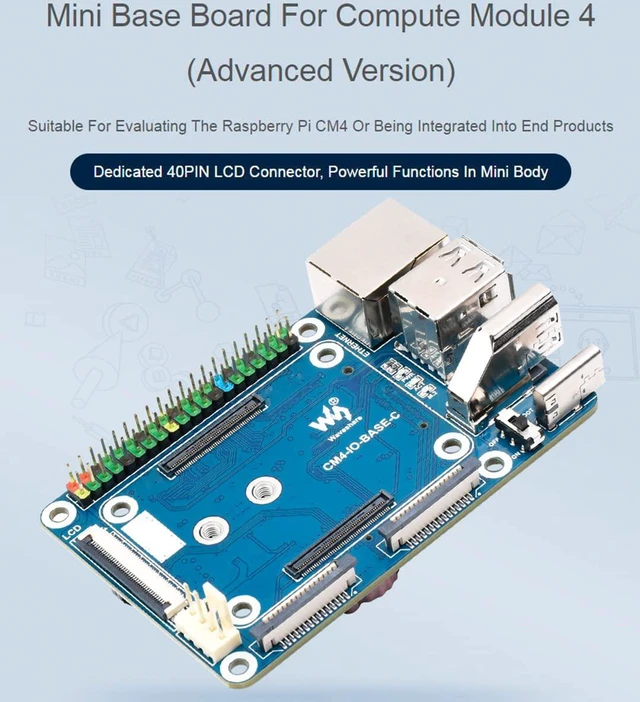

Mini Base Board For Compute Module 4 (Advanced Version) CM4-IO-BASE-C is a carrier board that can be used with Raspberry Pi Compute Module
4. Supporting one connection for display and touch, it also is easier and faster to be integrated into applications

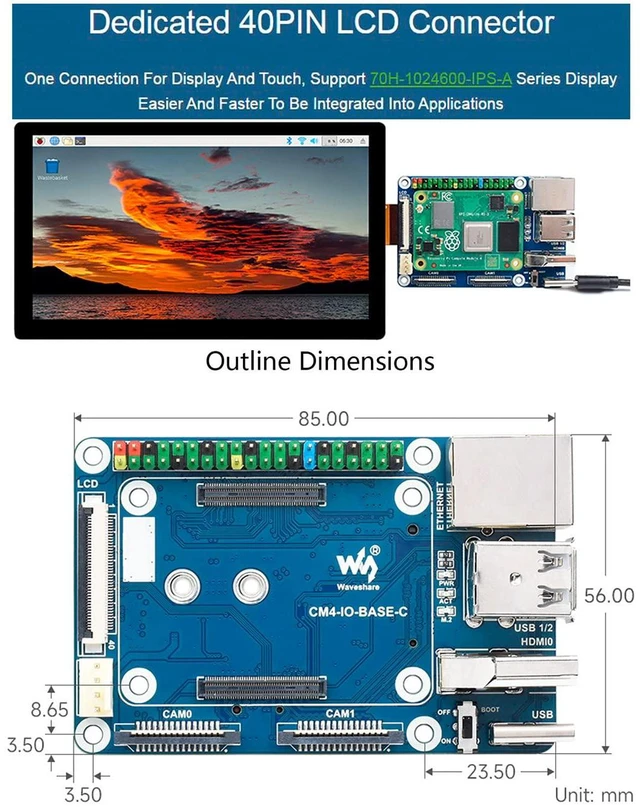

Dedicated 40PIN LCD Connector One connection For Display And Touch, Support 7inch IPS/QLED Integrated Series Display. Easier and Faster To Be Integrated into Applications

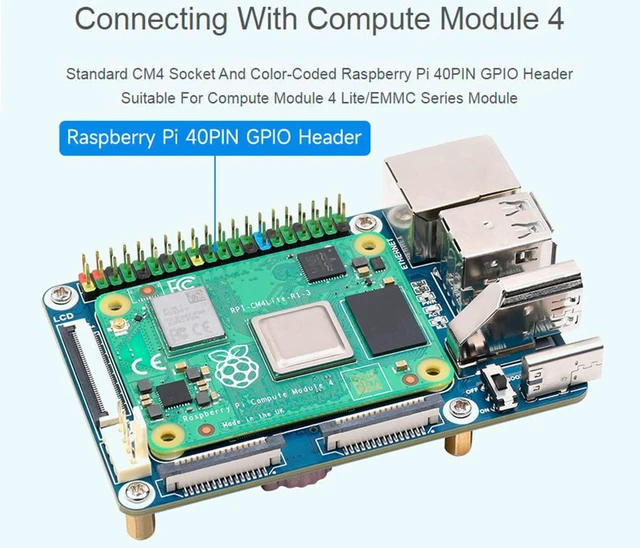

Connecting with Compute Module 4 standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header, suitable for Compute Module 4 Lite/eMMC series module

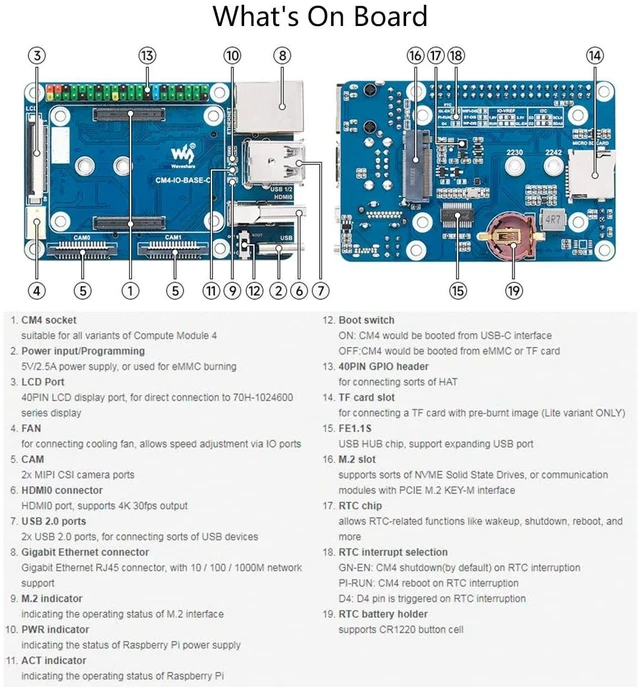

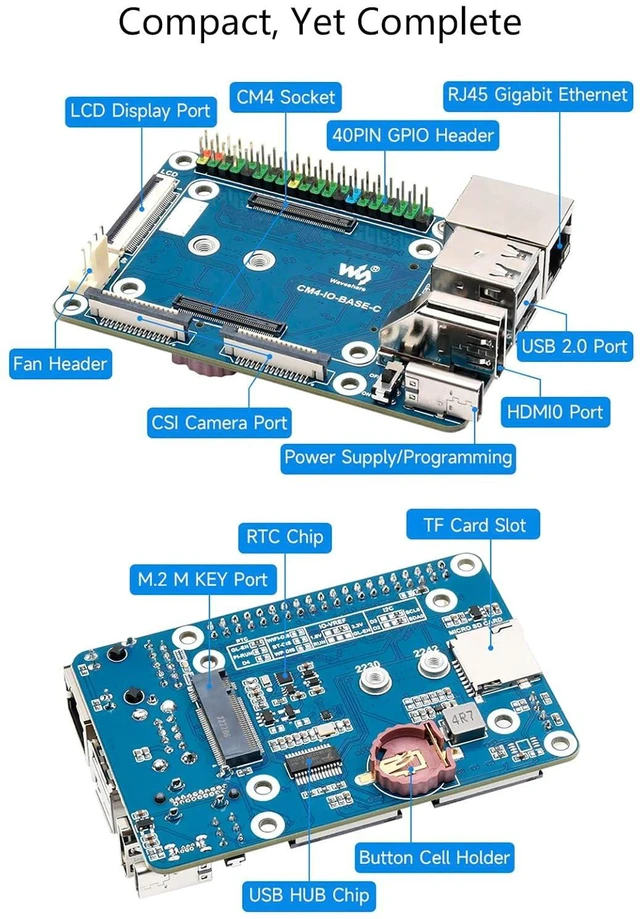

What's on Board Networking: Gigabit Ethernet RJ45 connector.
USB: USB 2.0 Type A x
2.
Display: LCD port (40pin 0.5 mm FPC connector).
Camera: MIPI CSI-2 camera port × 2 (15pin 1.0 mm FPC connector).
Video: HDMI port, supports 4K 30fps output.
RTC: Real-time clock with battery socket and ability to wake Compute Module
4.
Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants.
Fan header: allows speed adjustment, 5V.
Power input: 5V. And so on
Attention for Using Do not unplug any devices except USB and HDMI when powering on. USB 2.0 is closed by default, and you need to add "dtoverlay=dwc2, dr_mode=host" in "config. txt" when using
