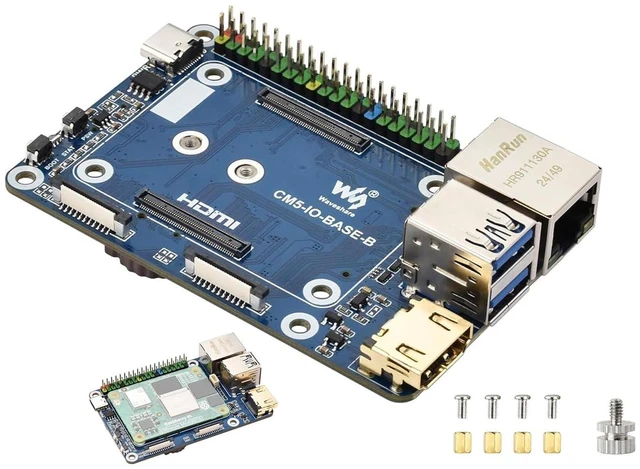

Mini Base Board (B) Compatible with Raspberry Pi Compute Module 5, Onboard EEPRO

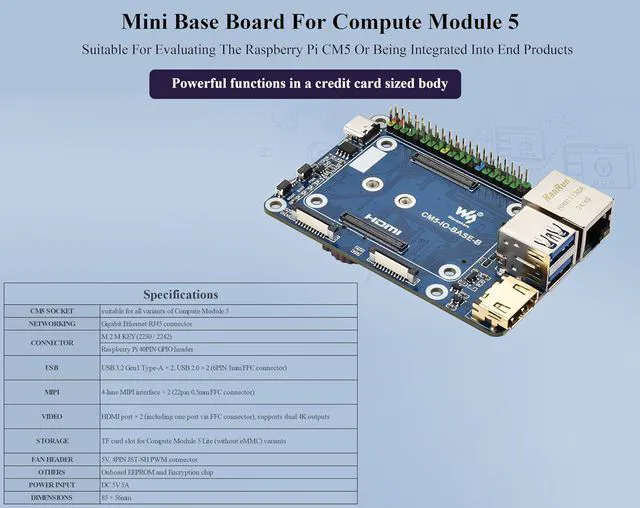

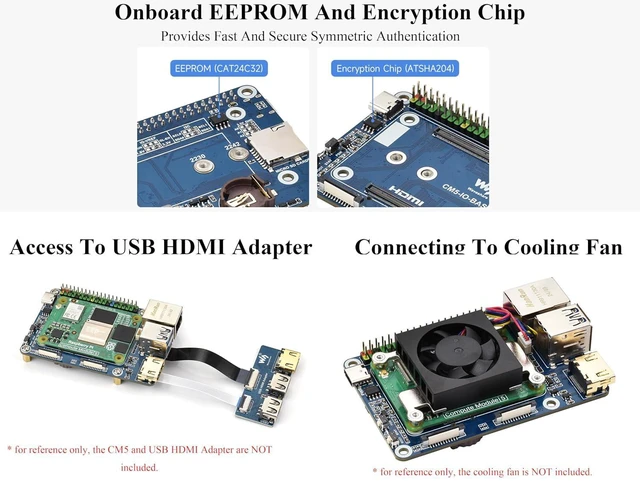

- Mini Base Board (B) for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products. Onboard EEPROM And Encryption Chip

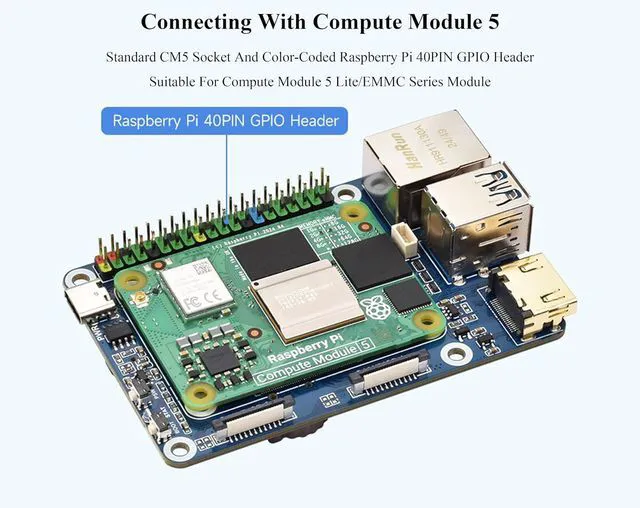

- Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module

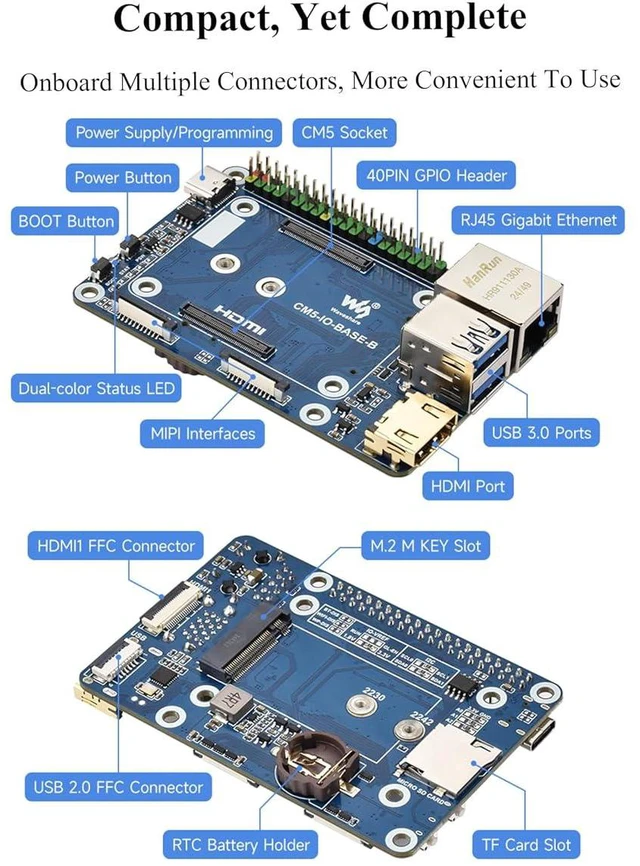

- With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users
- with Gigabit Ethernet RJ45 connector for Networking. M.2 M KEY: Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
- HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Mini Base Board (B) for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products. Onboard EEPROM And Encryption Chip
Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module
With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB 3.2 Gen1 ports and two USB 2.0 ports onboard, making it convenient for users
with Gigabit Ethernet RJ45 connector for Networking. M. 2
M KEY: Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5 mm FFC connector)
Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module
With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB 3.2 Gen1 ports and two USB 2.0 ports onboard, making it convenient for users
with Gigabit Ethernet RJ45 connector for Networking. M. 2
M KEY: Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5 mm FFC connector)
