RP2350-Zero Mini Development Board, RP2350 MCU Board Based On RPi Dual-Core&Dual

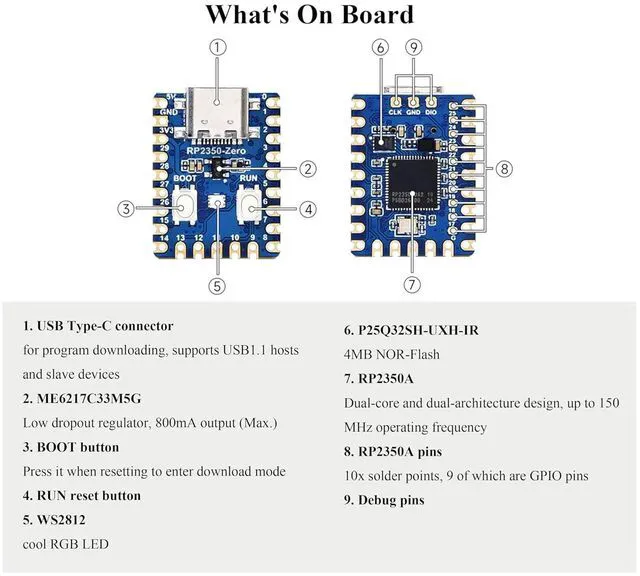

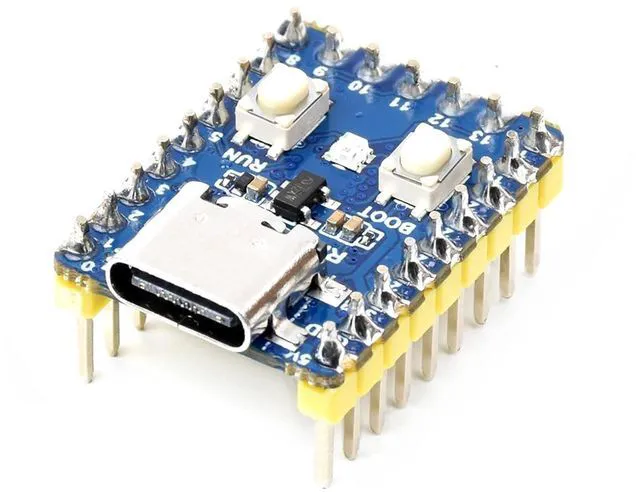

- RP2350-Zero mini development board with Pre-Soldered Header, equipped with a Type-C female port, utilizes the official RP2350A chip, and leading out all unoccupied pins in a very small form factor. Using castellated processing technology, it can be welded onto your custom board
- Adopts official RP2350A chip, unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 4MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB

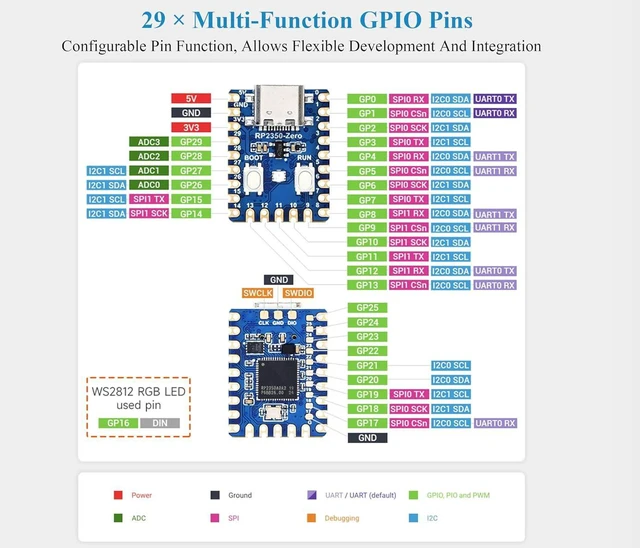

- 29 x multi-function GPIO pins (20x via edge pinout, others via solder points). 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 24 x controllable PWM channels
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-Zero mini development board with Pre-Soldered Header, equipped with a Type-C female port, utilizes the official RP2350A chip, and leading out all unoccupied pins in a very small form factor. Using castellated processing technology, it can be welded onto your custom board
Adopts official RP2350A chip, unique
dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 4MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB
29 x multi-function GPIO pins (20x via edge pinout, others via solder points). 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 24 x controllable PWM channels
Adopts official RP2350A chip, unique
dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 4MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use. Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB
29 x multi-function GPIO pins (20x via edge pinout, others via solder points). 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 24 x controllable PWM channels
