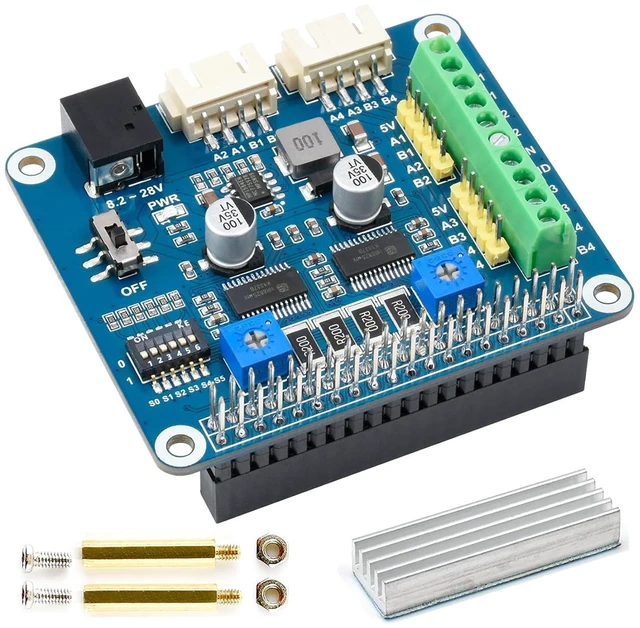

HRB8825 Stepper Motor HAT for Raspberry Pi and Jetson Nano, Drives Two Stepper M

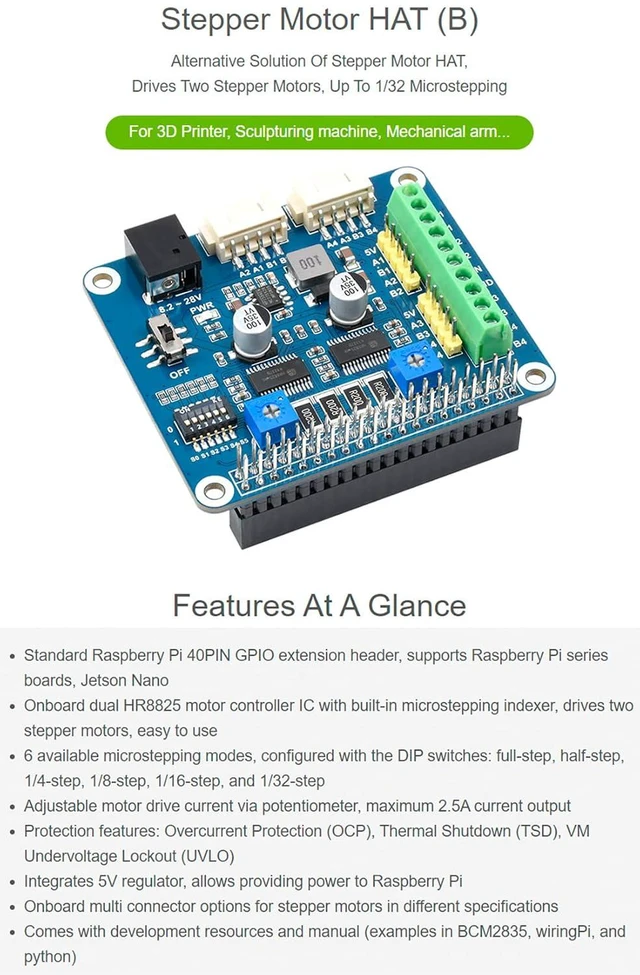

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
- 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output

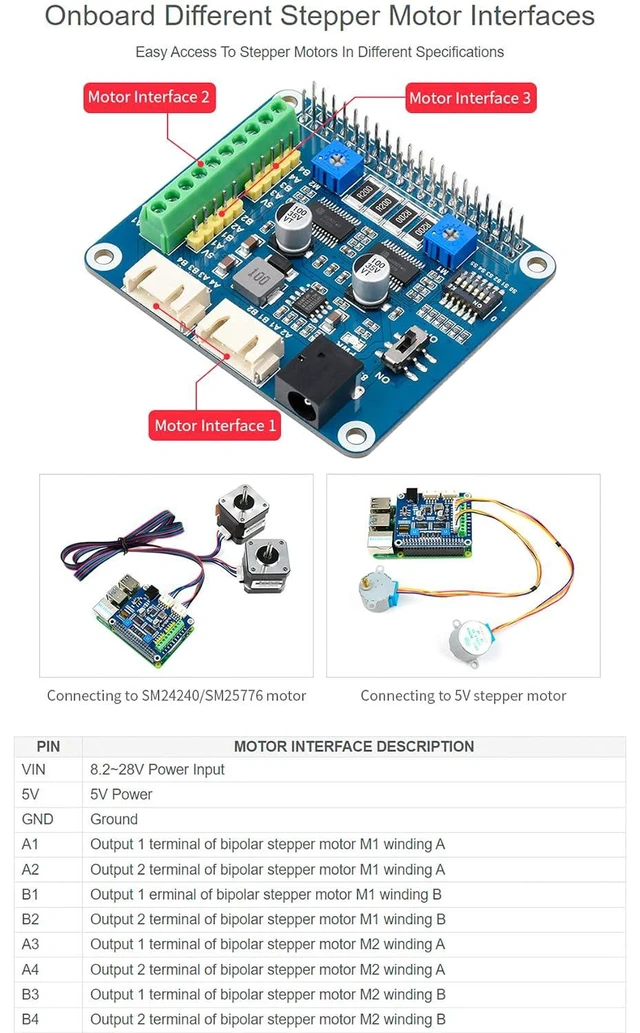

- Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications
- Specifications: Motor controller:HR8825. Motor drive voltage:8.2V~28V. Motor drive current:2.5A. Logic voltage:3.3V. Mounting hole size:3.0mm. Dimension:65 x 56mm
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use

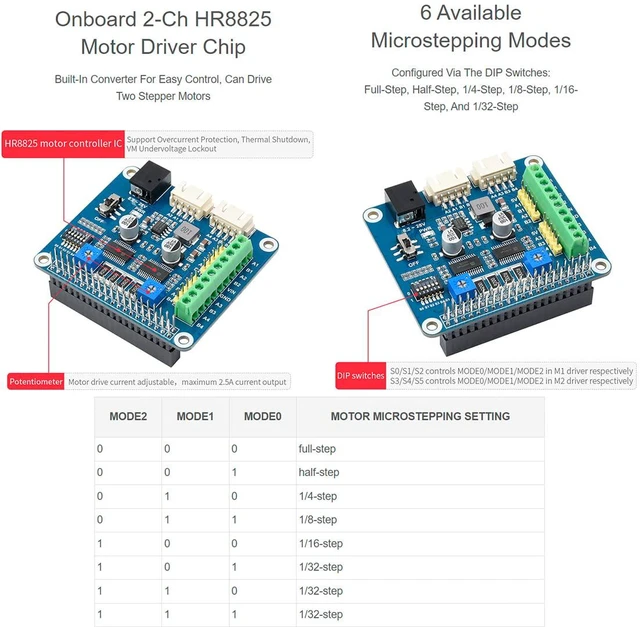

6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications
controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.
Dimension: 65 x 56mm
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications

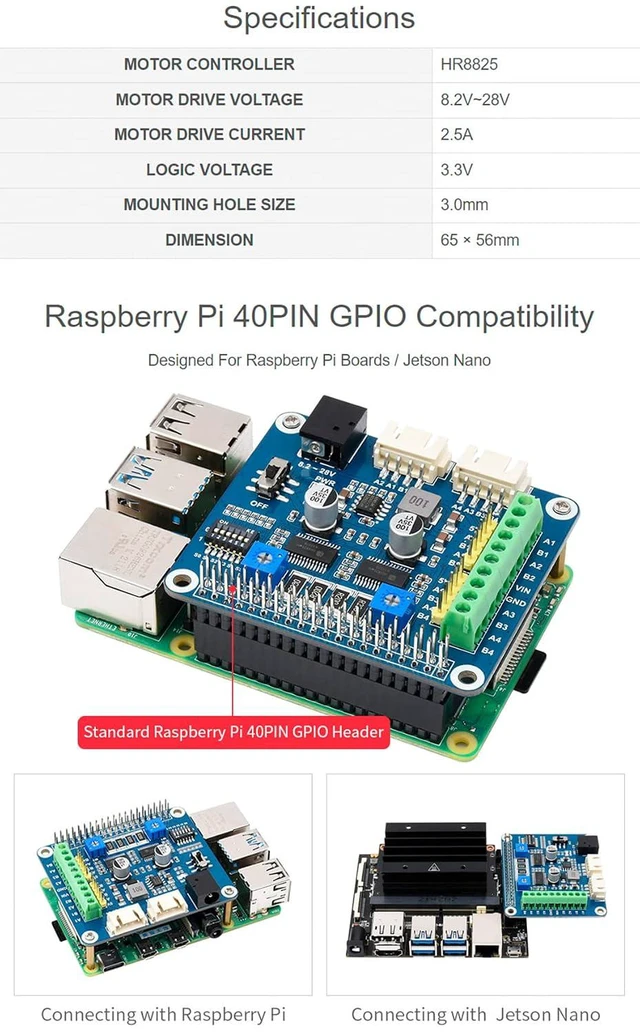

Specifications
: Motorcontroller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.
Dimension: 65 x 56mm
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
