Nano Base Board (B) for Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO

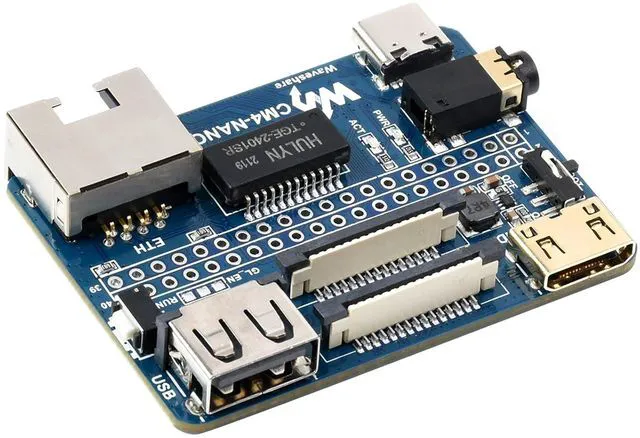

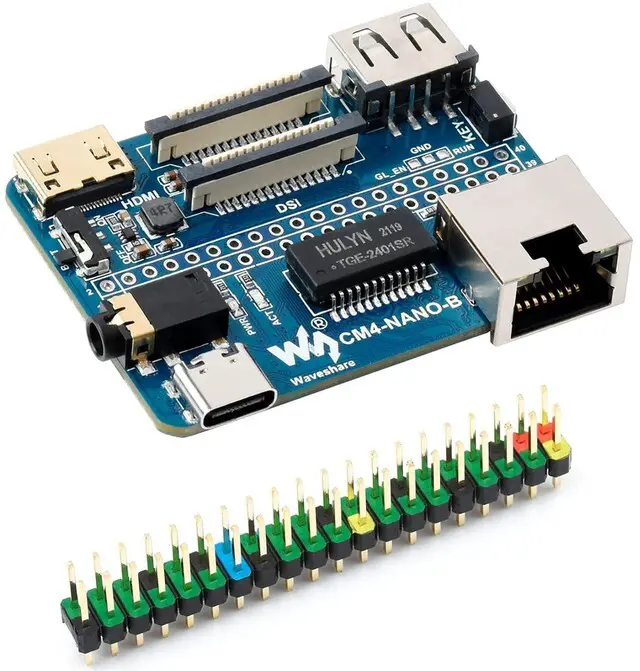

- CM4-NANO-B (Raspberry Pi CM4 Ultra Mini Expansion Board Type B) is a baseboard that can be used with Raspberry Pi Compute Module 4 Lite/eMMC. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4
- Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,ect.All in the compact body just as the size of CM4
- Networking:Gigabit Ethernet RJ45 connector. Connector:Raspberry Pi 40PIN GPIO header x 1. USB:USB 2.0 Type A connector x 1. Display:MIPI DSI port x 1 (15pin 1.0mm FPC connector). Camera:MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector). Video:Mini HDMI port x 1, supports 4K 30fps output
- Audio:3.5mm jack. Storage:Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input:5V. Dimensions : 56x 41mm
- Note: DO NOT hot-plug any devices except the USB and HDMI. The USB2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
CM4-NANO-B (Raspberry Pi CM4 Ultra Mini Expansion Board Type B) is a baseboard that can be used with Raspberry Pi Compute Module 4 Lite/eMMC. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4
Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB 2.0, DSI, CSI, 3.5 mm audio jack, ect. All in the compact body just as the size of CM4
Networking: Gigabit Ethernet RJ45 connector.
Connector: Raspberry Pi 40PIN GPIO header x 1.
USB: USB 2.0 Type A connector x
1.
Display: MIPI DSI port x 1 (15pin 1.0 mm FPC connector).
Camera: MIPI CSI-2 port x 1 (15pin 1.0 mm FPC connector).
Video: Mini HDMI port x 1, supports 4K 30fps output
Audio: 3.5 mm jack.

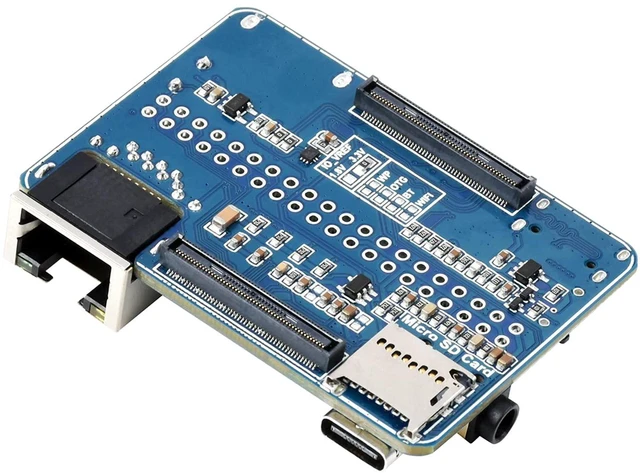

Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants.
Power input: 5V.

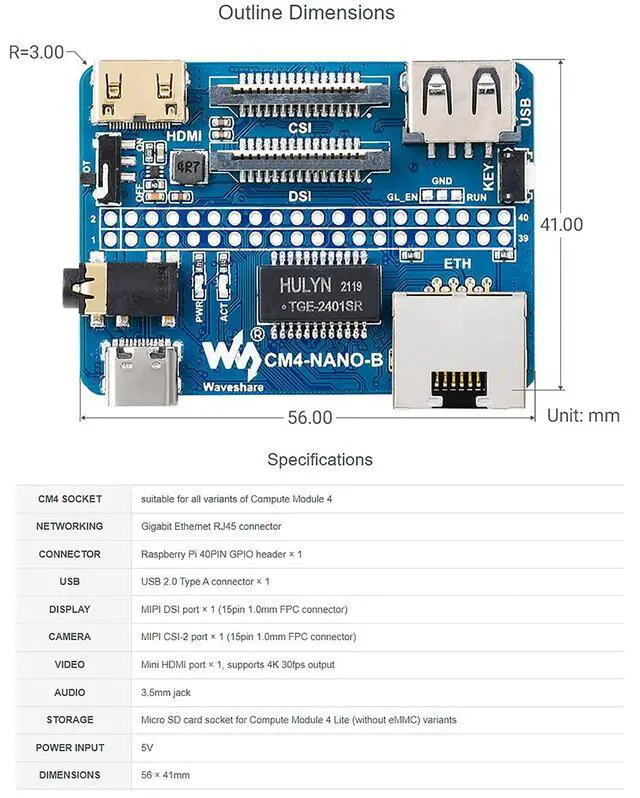

Dimensions: 56x 41mm
Note: DO NOT hot-plug any devices except the USB and HDMI. The USB 2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user
Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB 2.0, DSI, CSI, 3.5 mm audio jack, ect. All in the compact body just as the size of CM4
Networking: Gigabit Ethernet RJ45 connector.
Connector: Raspberry Pi 40PIN GPIO header x 1.
USB: USB 2.0 Type A connector x
1.
Display: MIPI DSI port x 1 (15pin 1.0 mm FPC connector).
Camera: MIPI CSI-2 port x 1 (15pin 1.0 mm FPC connector).
Video: Mini HDMI port x 1, supports 4K 30fps output
Audio: 3.5 mm jack.
Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants.
Power input: 5V.
Dimensions: 56x 41mm
Note: DO NOT hot-plug any devices except the USB and HDMI. The USB 2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user
