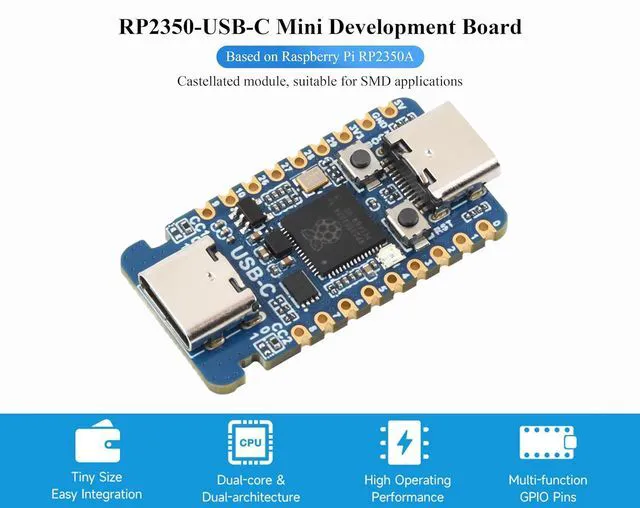

RP2350-USB-C Microcontroller Dev Board, Dual-Core & Dual-Architecture

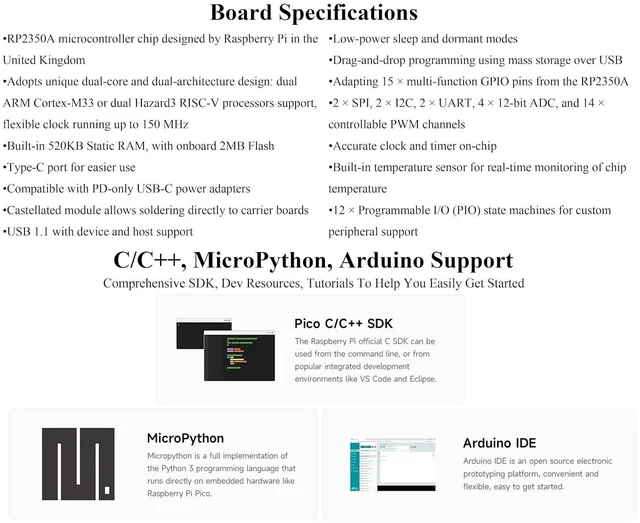

- RP2350A microcontroller chip designed by RPi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Supports power supply via Type-C port (PD compatible)

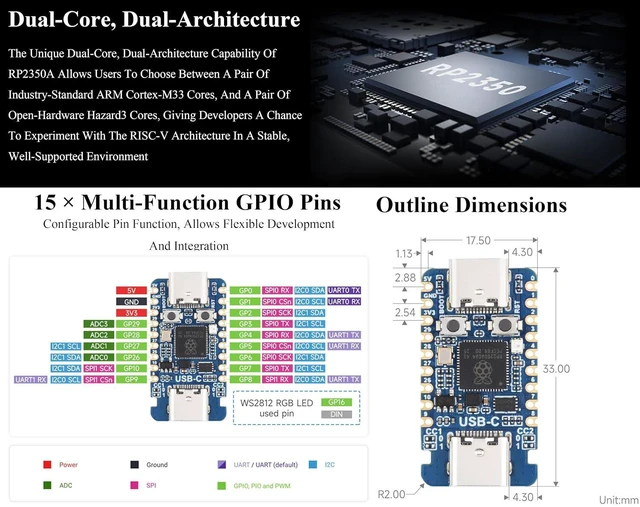

- Castellated module allows soldering directly to carrier boards. Adapting 15 × multi-function GPIO pins from the RP2350A. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
- Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support
- USB 1.1 with device and host support. Drag-and-drop programming using mass storage over USB. Low-power sleep and dormant modes
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350A microcontroller chip designed by RPi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Supports power supply via Type-C port (PD compatible)
Castellated module allows soldering directly to carrier boards. Adapting 15 × multi-function GPIO pins from the RP2350A. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support
USB 1.1 with device and host support. Drag-and-drop programming using mass storage over USB. Low-power sleep and dormant modes
Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Supports power supply via Type-C port (PD compatible)
Castellated module allows soldering directly to carrier boards. Adapting 15 × multi-function GPIO pins from the RP2350A. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support
USB 1.1 with device and host support. Drag-and-drop programming using mass storage over USB. Low-power sleep and dormant modes
