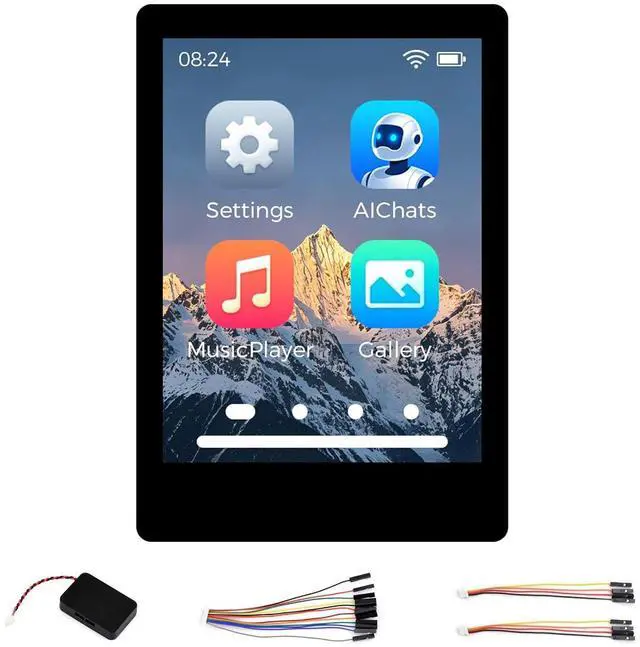

ESP32-C6 2.8inch IPS Capacitive Touch Display Dev Board, 240×320, NO Batt
- Equipped with the ESP32-C6-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 160MHz main frequency, and built-in 16MB Flash memory. Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
- Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color. Supports capacitive touch controlled via I2C interface, with interrupt support
- Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. (Batt is not included.)
- Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker. Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Equipped with the ESP32-C6-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 160MHz main frequency, and built-in 16MB Flash memory. Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard 2.8 inch LCD display, 240 × 320 resolution, 262K color. Supports capacitive touch controlled via I2C interface, with interrupt support
Onboard Batt recharge management module, with reserved 3.7V MX 1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. (Batt is not included. )
Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker. Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
Onboard 2.8 inch LCD display, 240 × 320 resolution, 262K color. Supports capacitive touch controlled via I2C interface, with interrupt support
Onboard Batt recharge management module, with reserved 3.7V MX 1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. (Batt is not included. )
Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker. Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
