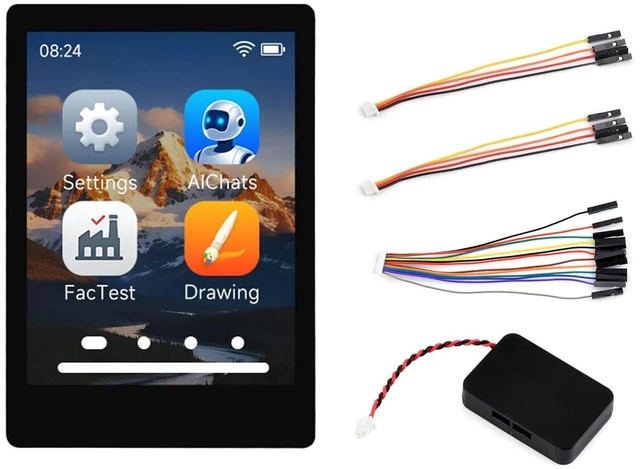

ESP32-C5 2.8inch IPS Capacitive Touch Display Dev Board, 240×320, with Batt

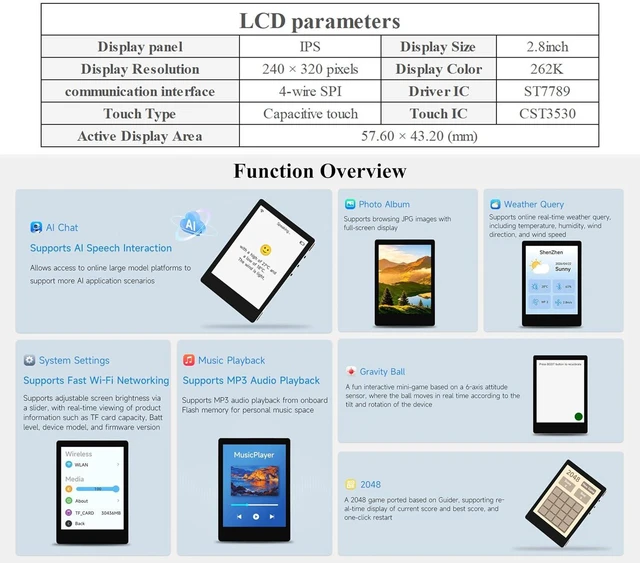

- Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency. Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
- Integrated with 384KB Static RAM, 320KB ROM, 8MB PS RAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage. Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance

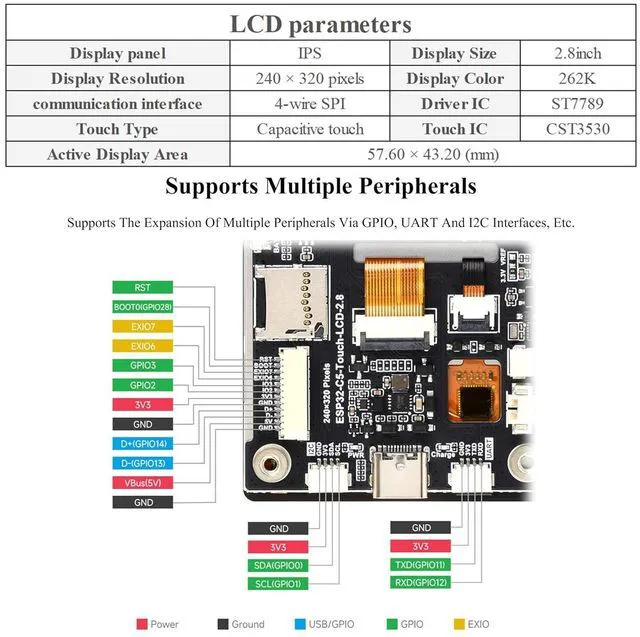

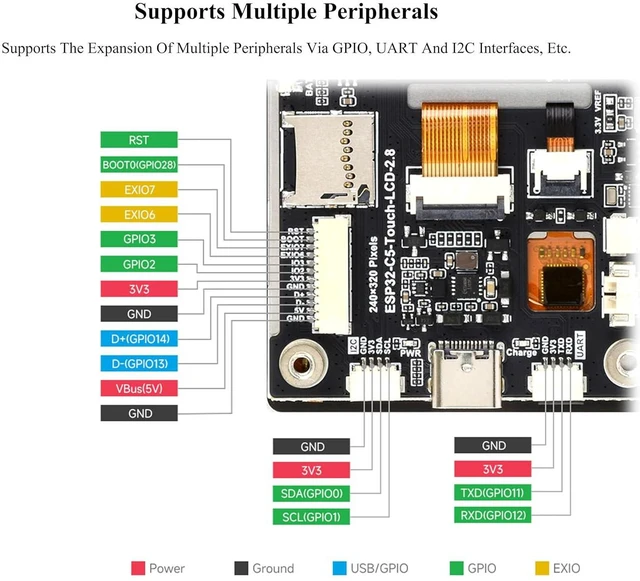

- Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Supports capacitive touch controlled via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
- Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

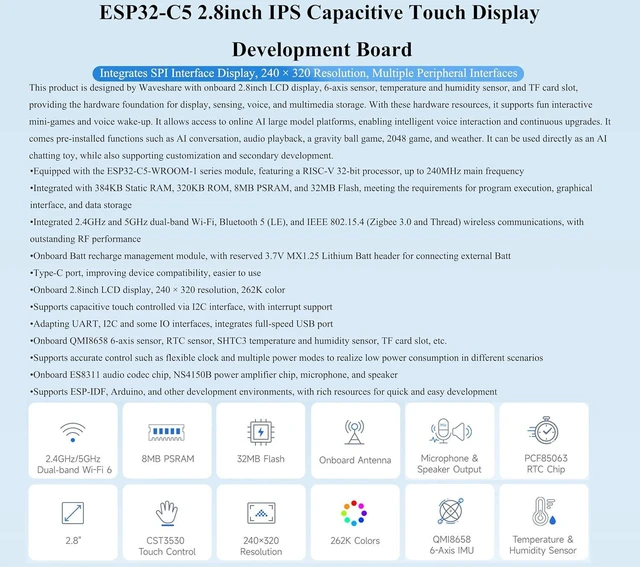

Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency. Onboard 2.8 inch LCD display, 240 × 320 resolution, 262K color
Integrated with 384KB Static RAM, 320KB ROM, 8MB PS RAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage. Integrated 2.4GH z and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard Batt recharge management module, with reserved 3.7V MX 1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Supports capacitive touch controlled via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker

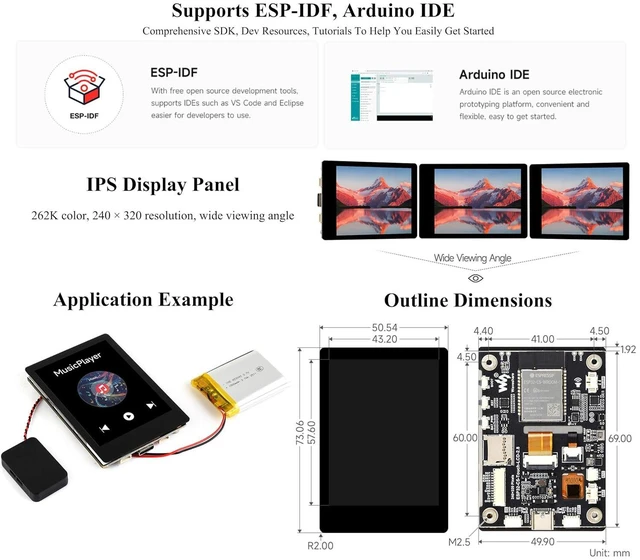

Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
Integrated with 384KB Static RAM, 320KB ROM, 8MB PS RAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage. Integrated 2.4GH z and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard Batt recharge management module, with reserved 3.7V MX 1.25 Lithium Batt header for connecting external Batt. Type-C port, improving device compatibility, easier to use. Supports capacitive touch controlled via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, R T C sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
Supports ESP-IDF, Ardui, and other development environments, with rich resources for quick and easy development
