0.96inch RGB OLED Display Module, 64×128 Resolution 65K Colors SPI Interface Emb

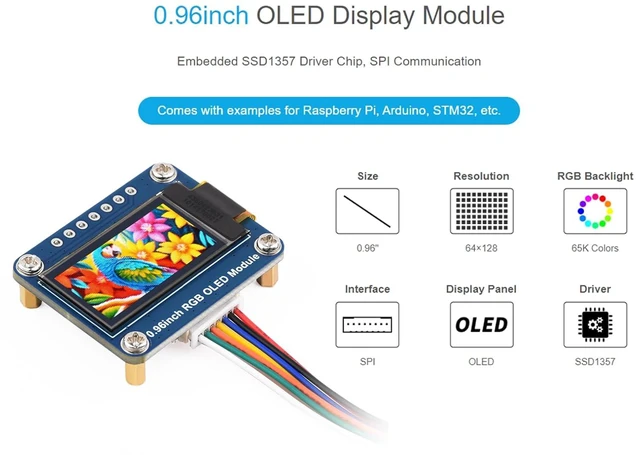

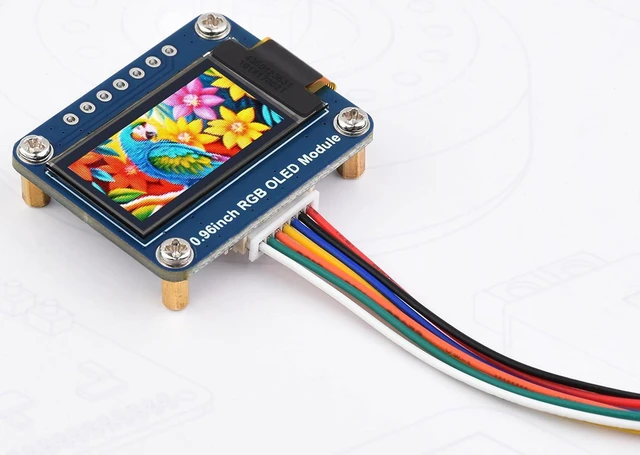

- 0.96inch RGB OLED Display Module,64×128 resolution OLED display, 65K colors, clear and colorful displaying effect
- SPI interface: 4-wire SPI, 3-wire SPI, minimizes required IO pins. Operating voltage: 3.3V/5V
- OLED and its controller: The built-in driver used by this OLED is SSD1357, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI, and other communication methods

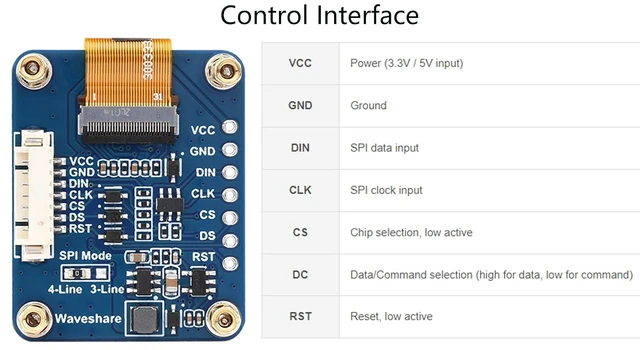

- Hardware Configuration: This OLED module provides two communication methods: 4-wire SPI and 3-wire SPI. There is an optional solderable resistor on the back of the module, and you choose the communication method via this resistor
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
0.96 inch RGB OLED Display Module, 64×128 resolution OLED display, 65K colors, clear and colorful displaying effect
SPI interface: 4-wire SPI, 3-wire SPI, minimizes required IO pins.
Operating voltage: 3.3V /5V
OLED and its controller: The built-in driver used by this OLED is SSD1357, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI, and other communication methods

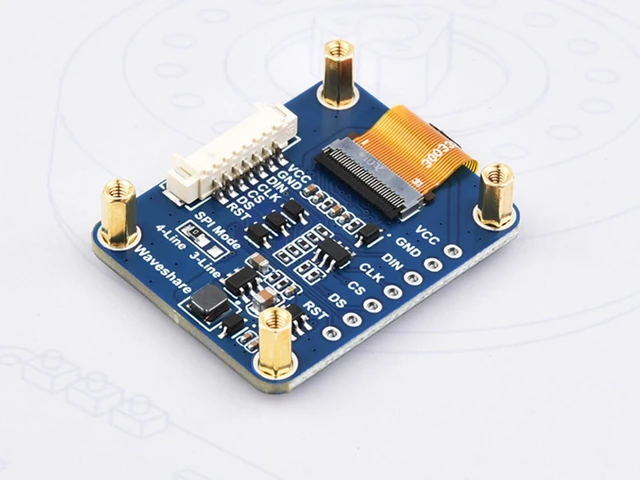

Hardware Configuration: This OLED module provides two communication methods: 4-wire SPI and 3-wire SPI. There is an optional solderable resistor on the back of the module, and you choose the communication method via this resistor

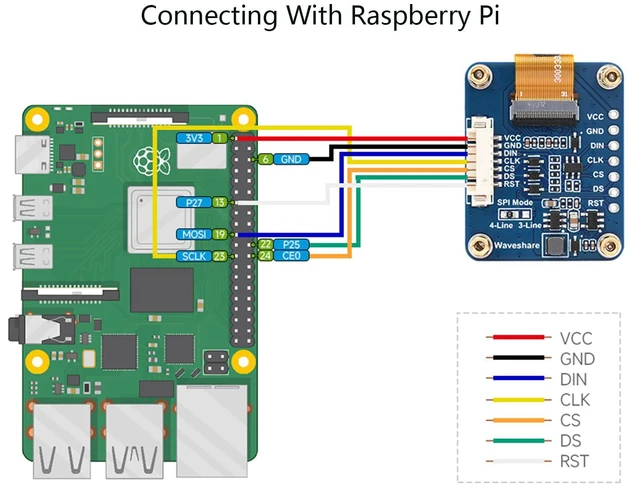

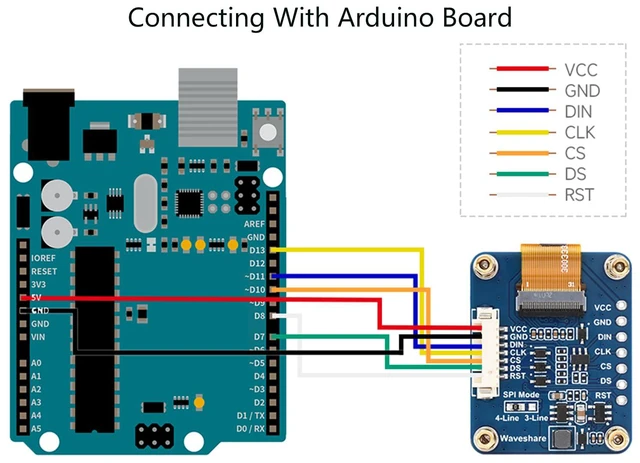

Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
SPI interface: 4-wire SPI, 3-wire SPI, minimizes required IO pins.
Operating voltage: 3.3V /5V
OLED and its controller: The built-in driver used by this OLED is SSD1357, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI, and other communication methods
Hardware Configuration: This OLED module provides two communication methods: 4-wire SPI and 3-wire SPI. There is an optional solderable resistor on the back of the module, and you choose the communication method via this resistor
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
