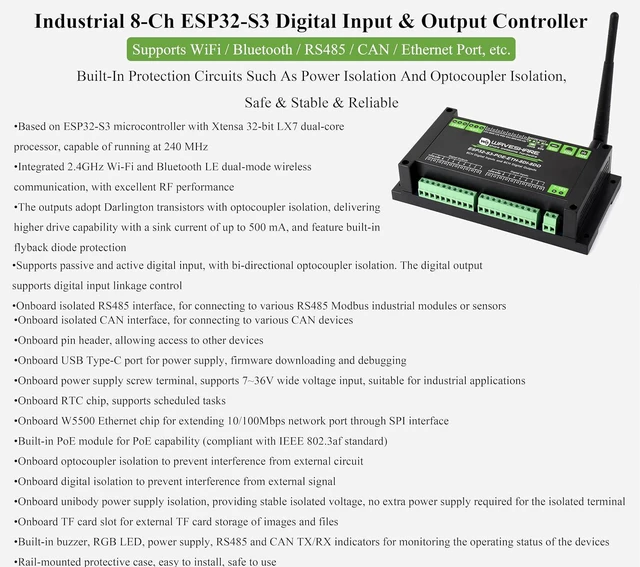

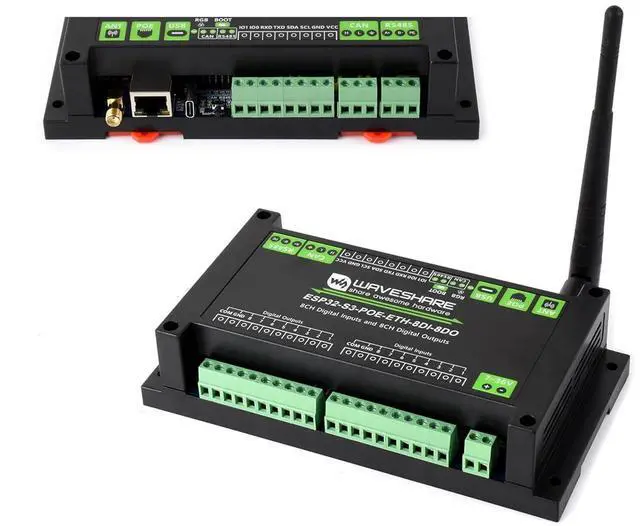

ESP32-S3 Control Board with 8-Channel Digital Input & Output, Supports WiFi/Blue

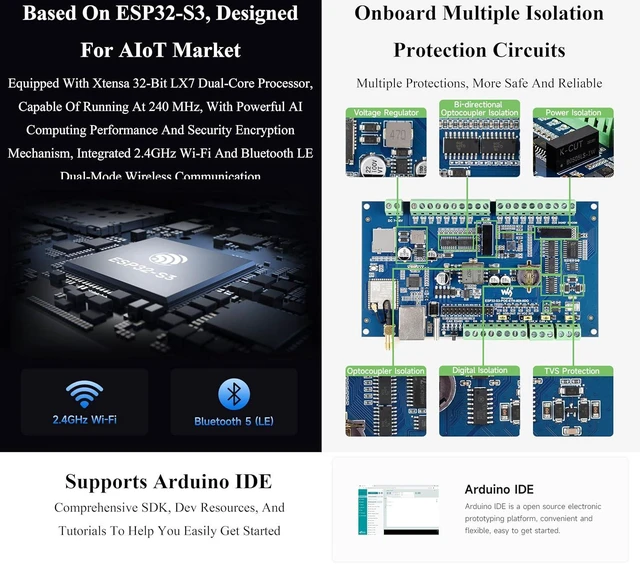

Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance

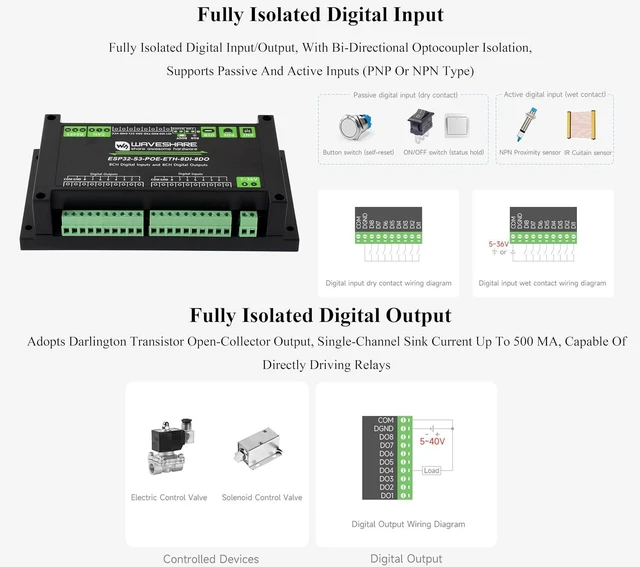

The outputs adopt Darlington transistors with optocoupler isolation, delivering higher drive capability with a sink current of up to 500 mA, and feature built-in flyback diode protection. Supports passive and active digital input, with bi-directional optocoupler isolation. The digital output supports digital input linkage control

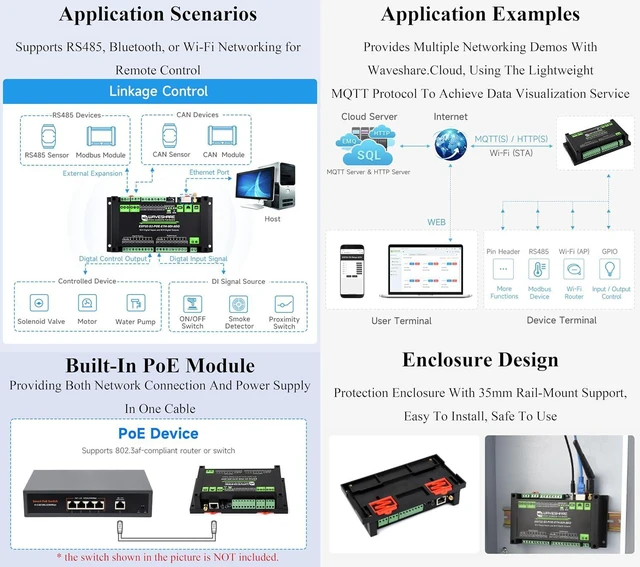

Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard isolated CAN interface, for connecting to various CAN devices. Built-in buzzer, RGB LED, power supply, RS485 and CAN TX/RX indicators for monitoring the operating status of the devices
Onboard pin header, allowing access to other devices. Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications. Onboard RTC chip, supports scheduled tasks
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface. Built-in PoE module for PoE capability (compliant with IEEE 802.3 af standard). Onboard TF card slot for external TF card storage of images and files
