ESP32-C6 1.54inch e-Paper AIoT Dev Board, 200 × 200 Resolution, Supports Wi-Fi,
- It is an e-Paper AIoT development board, equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
- Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
- Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development. Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion
- Supports ESP-IDF, Ardui IDE. Comes with comprehensive SDK, dev resources, and tutorials to help you easily get started: n9.cl/728rg
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

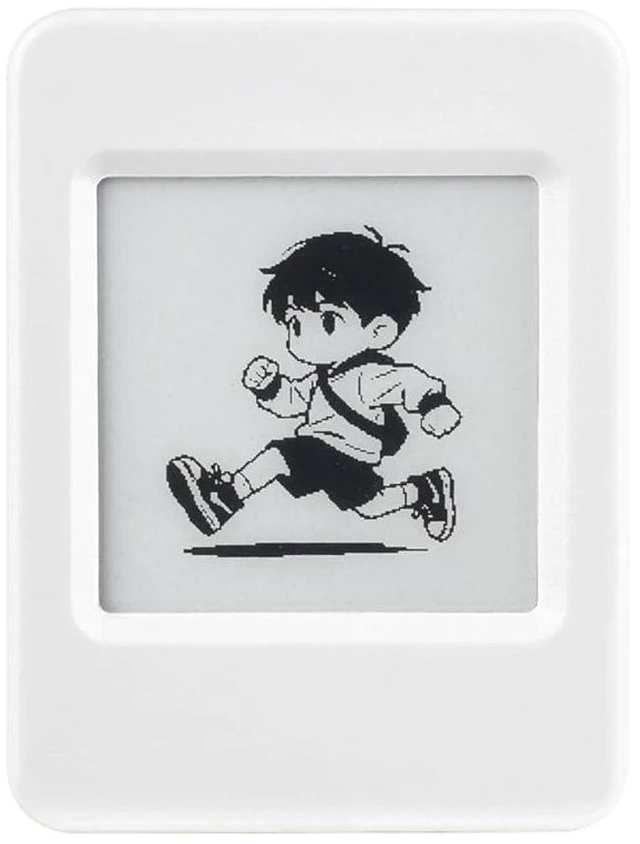

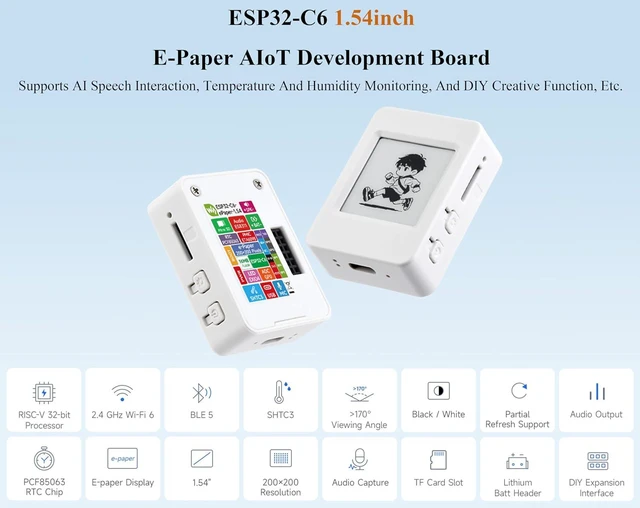

It is an e-Paper AIoT development board, equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Onboard 1.54 inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development. Reserved 2 × 6 2.54 mm pitch pin header for convenient external expansion
Supports ESP-IDF, Ardui IDE. Comes with comprehensive SDK, dev resources, and tutorials to help you easily get started: n9. cl/728rg
Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development. Reserved 2 × 6 2.54 mm pitch pin header for convenient external expansion
Supports ESP-IDF, Ardui IDE. Comes with comprehensive SDK, dev resources, and tutorials to help you easily get started: n9. cl/728rg
