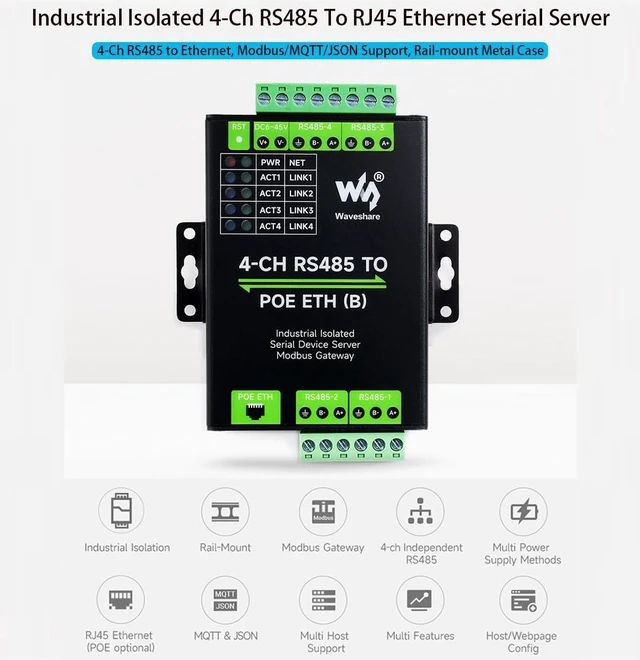

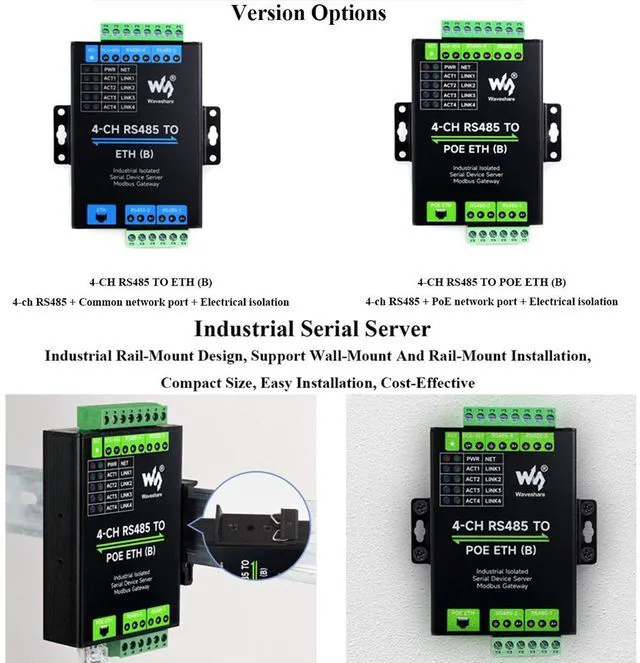

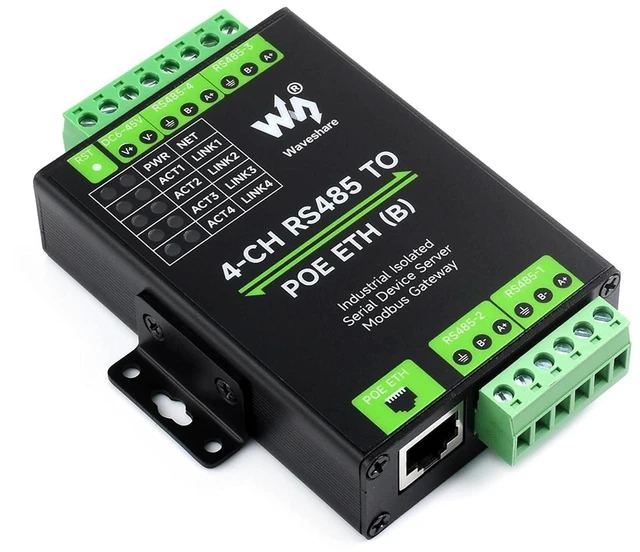

4-Ch RS485 to RJ45 Ethernet Serial Server with PoE Function, 4 Channels RS485 In
- 4-Ch RS485 to RJ45 Ethernet Serial Server, 4 Channels RS485 Independent Operation, Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet
- 4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission
- Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc. Modbus gateway support: suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software
- Multi communication modes: supports TCP server / TCP client / UDP multicast / UDP mode
- Support PoE Ethernet port power supply*, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

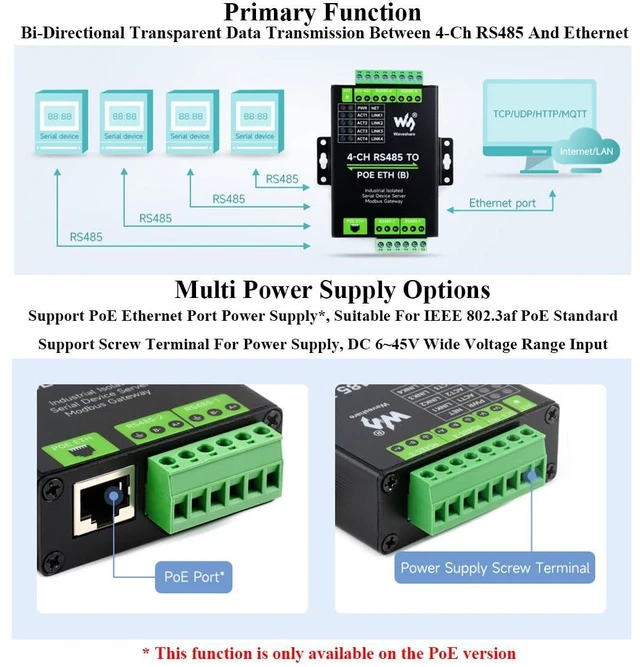

4-Ch RS485 to RJ45 Ethernet Serial Server, 4 Channels RS485 Independent Operation, Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet
4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission

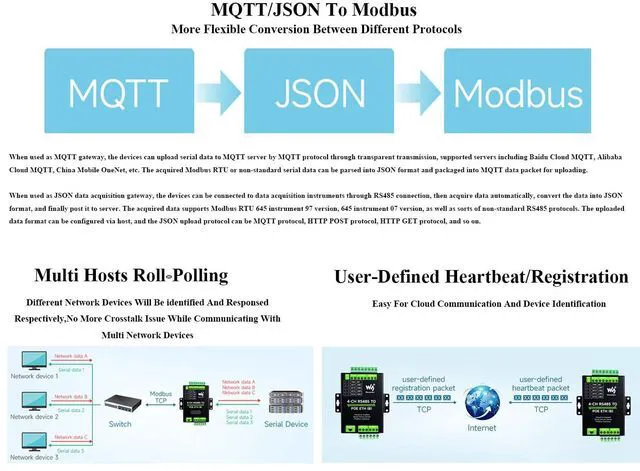

Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.

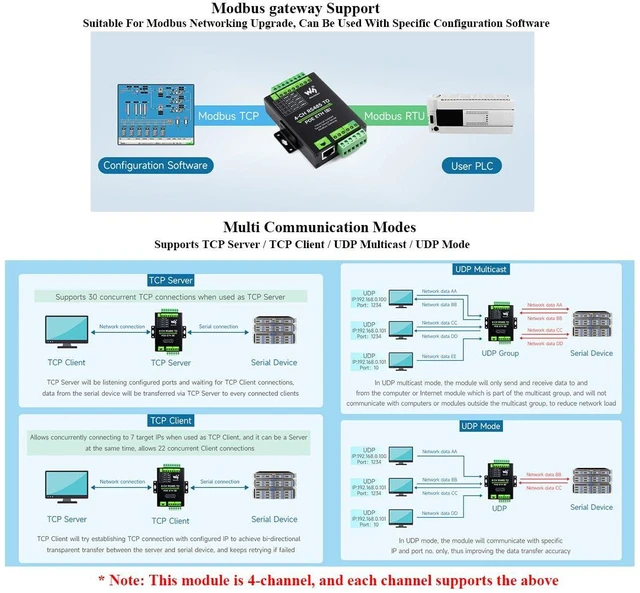

Modbus gateway support: suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software
Multi communication modes: supports TCP server / TCP client / UDP multicast / UDP mode
Support PoE Ethernet port power supply*, Suitable for IEEE 802.3 af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input
4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission
Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.
Modbus gateway support: suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software
Multi communication modes: supports TCP server / TCP client / UDP multicast / UDP mode
Support PoE Ethernet port power supply*, Suitable for IEEE 802.3 af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input
