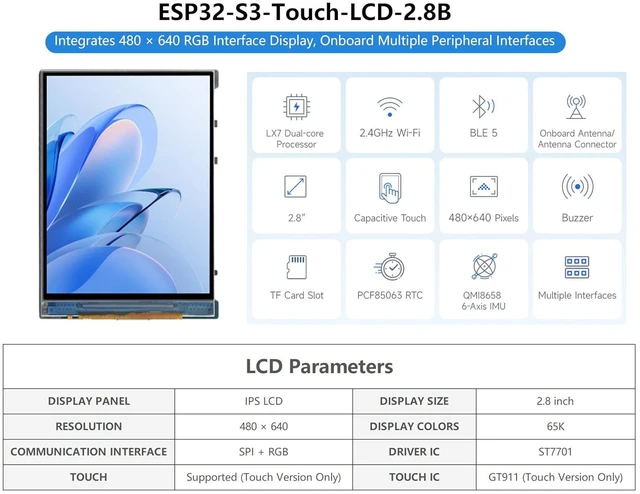

ESP32-S3 2.8inch Display Development Board, ESP32 with 2.8inch IPS LCD 480x640 R
- ESP32-S3 2.8inch Display Development Board Type B, Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz W-i--F-i (802.11 b/g/n) and Blue -too th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 2.8inch LCD display, 480×640 resolution. IPS Display Panel. Excellent display performance, wide viewing angle. (This version LCD doesn't have touch function)
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Supports multiple peripherals. Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc
- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ESP32-S3 2.8 inch Display Development Board Type B, Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z W-i--F-i ( 802.11 b/g/n) and Blue -too th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.8 inch LCD display, 480×640 resolution. IPS Display Panel. Excellent display performance, wide viewing angle. (This version LCD doesn't have touch function)
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Supports multiple peripherals. Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Supports 2.4GH z W-i--F-i ( 802.11 b/g/n) and Blue -too th 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.8 inch LCD display, 480×640 resolution. IPS Display Panel. Excellent display performance, wide viewing angle. (This version LCD doesn't have touch function)
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Supports multiple peripherals. Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
