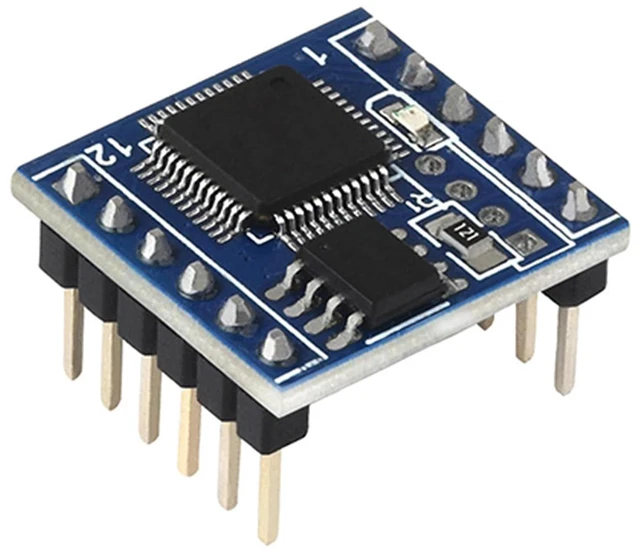

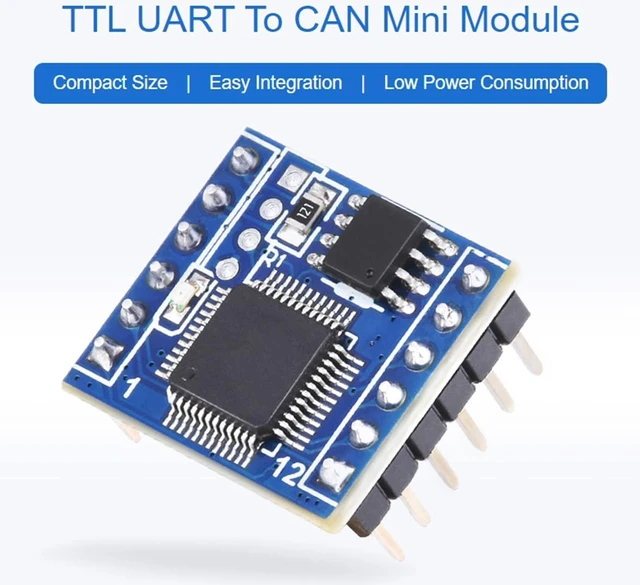

Waveshare TTL UART to CAN Mini Module, with TTL and CAN Conversion Protocol, Sup

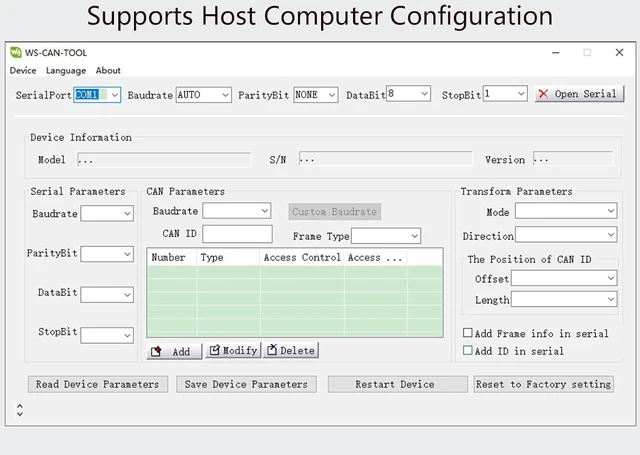

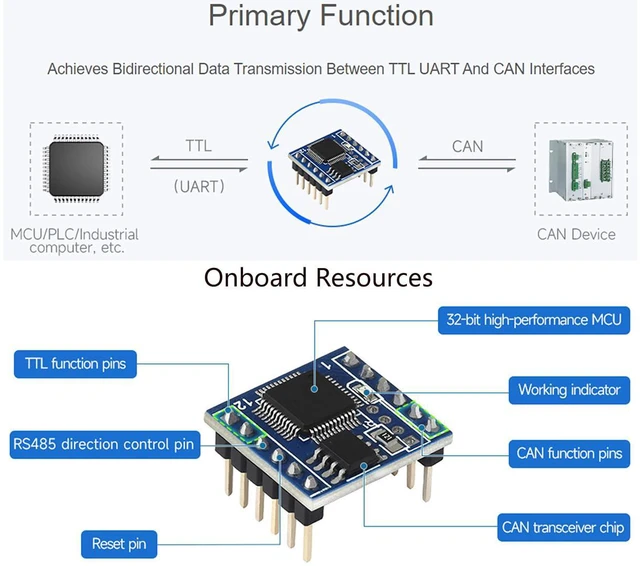

Waveshare WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration. Built in TTL and CAN conversion protocol algorithm, enabling data conversion communication between TTL and CAN via simple configuration
Supports 3.3V operating voltage on TTL interface, supports both CAN 2.0A (standard frame) and CAN 2.0B (extended frame) on CAN interface. Supports offline detection and automatic recovery functions
Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type via configuration.

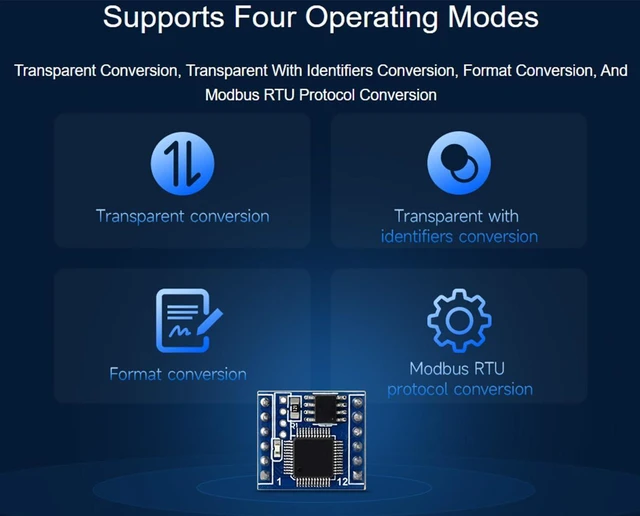

Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
UART communication baudrate: 1200bps460800bps.
CAN communication baudrate: 10kbps~1000kbps, configurable. Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss
Supports high-speed conversion, the CAN transmission speed can reach up to 1270 extended frames per second with the UART at 115200bps and CAN at 250kbps (close to the theoretical max value of 1309), and can exceed 5000 extended frames per second with the UART at 460800bps and CAN at 1000kbps
